In food, agro and chemical manufacturing, sanitation isn’t optional—it’s a regulatory requirement. From meatpacking and dairies to commercial kitchens and bottling lines, floor drainage systems play a critical role in preventing contamination, ensuring employee safety, and maintaining operational compliance.
A poorly designed drain system can harbor bacteria, allow puddling, or fail under thermal and chemical exposure. That’s why leading processors rely on commercial trench drain systems engineered for food-grade environments—especially stainless steel trench drains that meet NSF and USDA standards.
This guide outlines the drainage requirements for food plants, compares materials, and helps you select the right system for long-term performance. Internal links are included to product pages, technical guides, and support resources for system specification and purchasing.
Why Floor Drainage Matters in Food, Agro and Chemical Plants
Food processing environments demand frequent sanitation, constant water usage, and the handling of high volumes of liquids, solids, and chemicals. Without proper drainage, facilities are at risk of:
- Standing water that harbors bacteria
- Slippery floors and employee injury
- Deterioration of concrete or tile surfaces
- Non-compliance with FDA, USDA, or local health regulations
- Odor buildup, mold growth, or pest infestation
A well-designed trench drain system removes water and waste efficiently, supports clean-in-place (CIP) operations, and provides long-term corrosion resistance in harsh processing conditions.
Regulatory Drainage Standards in Food Plants
|
Regulatory Body |
Key Drainage Requirements |
|
FDA Food Code |
Floors must be “durable, easily cleanable, and sloped to drain” |
|
USDA FSIS |
Drains must prevent product contamination |
|
NSF/ANSI 3A |
Components must be smooth, sanitary, and corrosion-resistant |
|
HACCP |
Drainage must support risk-based hazard controls for pathogens and allergens |
Systems that comply with these codes typically include stainless steel trench drains, cleanable components, sloped channels, and removable sediment baskets.
Trench Drain Types Commonly Used in Agro Facilities
1. Stainless Steel Trench Drains
These are the most hygienic trench drain systems available. Their smooth surface, welded seams, and non-porous properties make them ideal for areas with direct food contact or aggressive cleaning procedures.
Features:
- Fabricated in 304 or 316 stainless steel
- Fully welded joints for sanitary cleaning
- Slope built into the channel
- Available with heel-proof, slotted, or perforated grates
Explore our Stainless Steel Drain Systems for specifications and configurations.
2. Slot Drains (Grateless)
Slot drains feature a narrow surface opening (¼"–1") and eliminate the need for a traditional grate. They're ideal in environments where sanitation speed and simplicity are essential.
Benefits:
- No grate to clean or replace
- Narrow opening reduces debris entry
- Easy to flush with CIP systems
- Compatible with welded stainless construction
Try our Slot Drain Configurator to build your drain layout.
3. Polymer Concrete or HDPE Systems
Used primarily in non-production areas such as corridors, mechanical rooms, or exterior docks. These systems are durable and corrosion-resistant but not typically specified for food contact zones.
Best for:
- Perimeter drainage
- Trash room drains
- Loading zones
See more on our HDPE Trench Drain Systems and Polymer Concrete Systems.
Matching Drain Type to Food Facility Zones
|
Facility Area |
Drain Type |
Material |
Grate |
|
Processing Line |
Sloped trench |
316 SS |
Heel-proof or perforated |
|
Cook & Chill Rooms |
Slot drain |
316 SS |
No grate |
|
Packaging Zone |
Trench drain with catch basket |
304 SS |
Slotted grate |
|
Cold Storage |
Thermal-resistant trench |
SS or polymer |
ADA-compliant |
|
Exterior Loading Docks |
Heavy-duty trench |
Polymer concrete |
Ductile iron slotted |
Each zone should be evaluated for flow volume, temperature, traffic, and sanitation needs before selecting a trench drain system.
Grate Options for Food, Agro and Chemical Grade Drains
Grates are a key component in food facility drainage—affecting not only flow but also safety and cleanability.
|
Grate Type |
Features |
Best Uses |
|
Slotted SS |
High flow, easy clean |
General production zones |
|
Perforated SS |
Heel-proof, aesthetic |
Washdown areas, bottling |
|
Bar Grate SS |
Max flow, high durability |
Heavy washdown zones |
|
Decorative SS |
ADA/NSF-compliant |
Retail, tasting rooms |
|
Slot (No Grate) |
Hygienic, CIP-compatible |
Clean-in-place zones |
All grates are available in 304 or 316 stainless and can be bolt-down or tool-removable as needed.
View specs in our Trench Drain Grate Types Guide.
304 vs 316 Stainless Steel for Chemical Plants
|
Grade |
Key Benefits |
Best For |
|
304 SS |
Affordable, corrosion-resistant |
Packaging, light washdown |
|
316 SS |
Superior acid and chemical resistance |
Processing, brining, high-moisture areas |
If your facility uses high-chloride cleaners or handles acidic foods like tomato, citrus, or vinegar-based products, 316 SS is strongly recommended.
Drainage Layout and Slope
- Slope: Use a minimum of 0.5% built-in slope (1/8" per foot)
- Widths: 4", 6", 8", and 12"+ depending on the area and volume
- Outlets: 4", 6", or 8" stainless outlet pipe to tie into wastewater or treatment
- Catch Basins: Recommended every 50–75 ft or where flow direction changes
Use our Trench Drain Calculator to size your system based on square footage and flow rate.

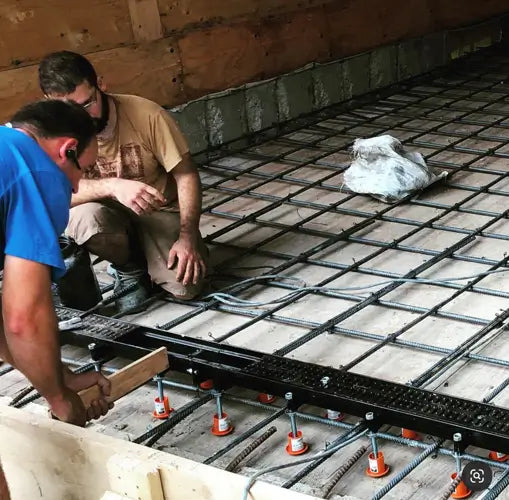

Installation Guidelines for Food-Safe Trench Drains
- Concrete Embedment: Use full rebar cage and anchor flanges
- Joint Sealing: Fully weld or use NSF-approved sealants
- Outlet Connection: Stainless-to-stainless preferred for CIP lines
- Grate Leveling: Ensure grate sits flush to reduce trip hazards
- Final Washdown: Test system under flow before turning over to operations
Download our Installation Guide for technical drawings and rebar spacing specs.
Cleaning & Maintenance Tips
|
Frequency |
Task |
|
Daily |
Rinse surface, inspect for pooling |
|
Weekly |
Lift grate, clean trench with brush or pressure |
|
Monthly |
Sanitize with approved cleaners (peracetic acid, etc.) |
|
Quarterly |
Inspect for slope irregularities or sediment buildup |
Well-designed stainless trench drain systems require minimal maintenance—but regular cleaning preserves compliance and extends service life.
Budgeting and Cost Breakdown
|
Item |
Estimated Range (Per Linear Ft) |
|
304 SS Trench Drain |
$140–$220 |
|
316 SS Trench Drain |
$180–$300 |
|
Slot Drain (Grateless) |
$120–$250 |
|
HDPE or Polymer Drain (Exterior) |
$45–$150 |
|
Accessories (Basins, Baskets) |
$40–$100 |
View full cost breakdowns by system type in our Trench Drain Cost Guide.
Summary: What to Look for in Food-Grade Trench Drains
✅ NSF/ANSI Compliance
✅ Smooth, non-porous surface
✅ CIP and washdown compatibility
✅ Proper slope and outlet sizing
✅ Corrosion-resistant materials
✅ Low-maintenance design
By selecting trench drains specifically designed for the food industry—especially those fabricated from 316 stainless steel—you can maintain compliance, minimize risk, and improve facility cleanliness.
Next Steps
- Explore our full line of Stainless Steel Trench Drains for food processing facilities
- Use our Trench Drain Calculator to size your system
- Download our Installation Guide and CAD files
- Get a custom layout and quote from our technical sales team
