Radius Trench Drain System
Precision-Engineered for Curved Drainage
Flexible, Durable, and Designed for Seamless Integration
When a linear trench drain is not enough, the 600 Radius Trench Drain System provides a versatile and precise solution for projects requiring smooth, curved drainage paths. Designed for architectural flexibility and high-performance water management, this system allows you to create fluid, continuous drainage without sacrificing strength or efficiency. Learn more here about the real world differences
Engineered for Versatility
The 6” Radius Trench Drain Systems is built using 6-inch-wide radius couplers, which seamlessly connect to form curved drainage solutions. These couplers can be used:
- Independently to create fully customized curved designs.
- In combination with linear trench sections, such as the S 600 trench system (available in 4-foot sections).
- With up to a 3° flexion per connection, allowing for gradual curves that align with the natural contours of any project.
This precision-engineered system ensures optimal drainage performance while maintaining aesthetic harmony in complex designs.

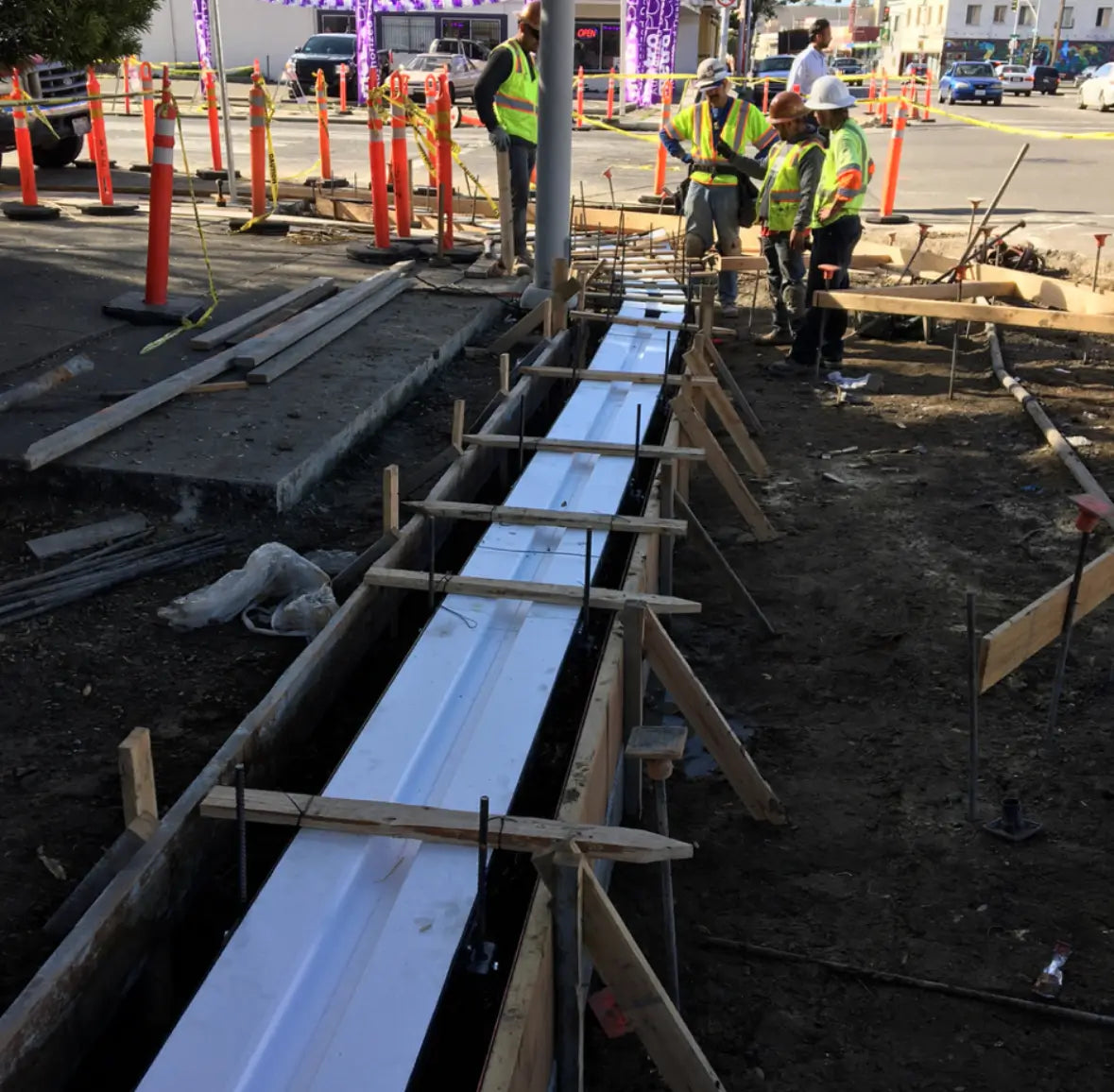

Seamless Integration with Linear Trench Drains
By combining radius couplers with standard linear trench drain sections, TrenchDrainCo enables the creation of customized drainage layouts that effortlessly follow:
- Landscape contours
- Plazas and public walkways
- Architectural curves and design features
- Driveways and high-traffic areas
This hybrid approach ensures efficient water flow management while enhancing both functionality and visual appeal.

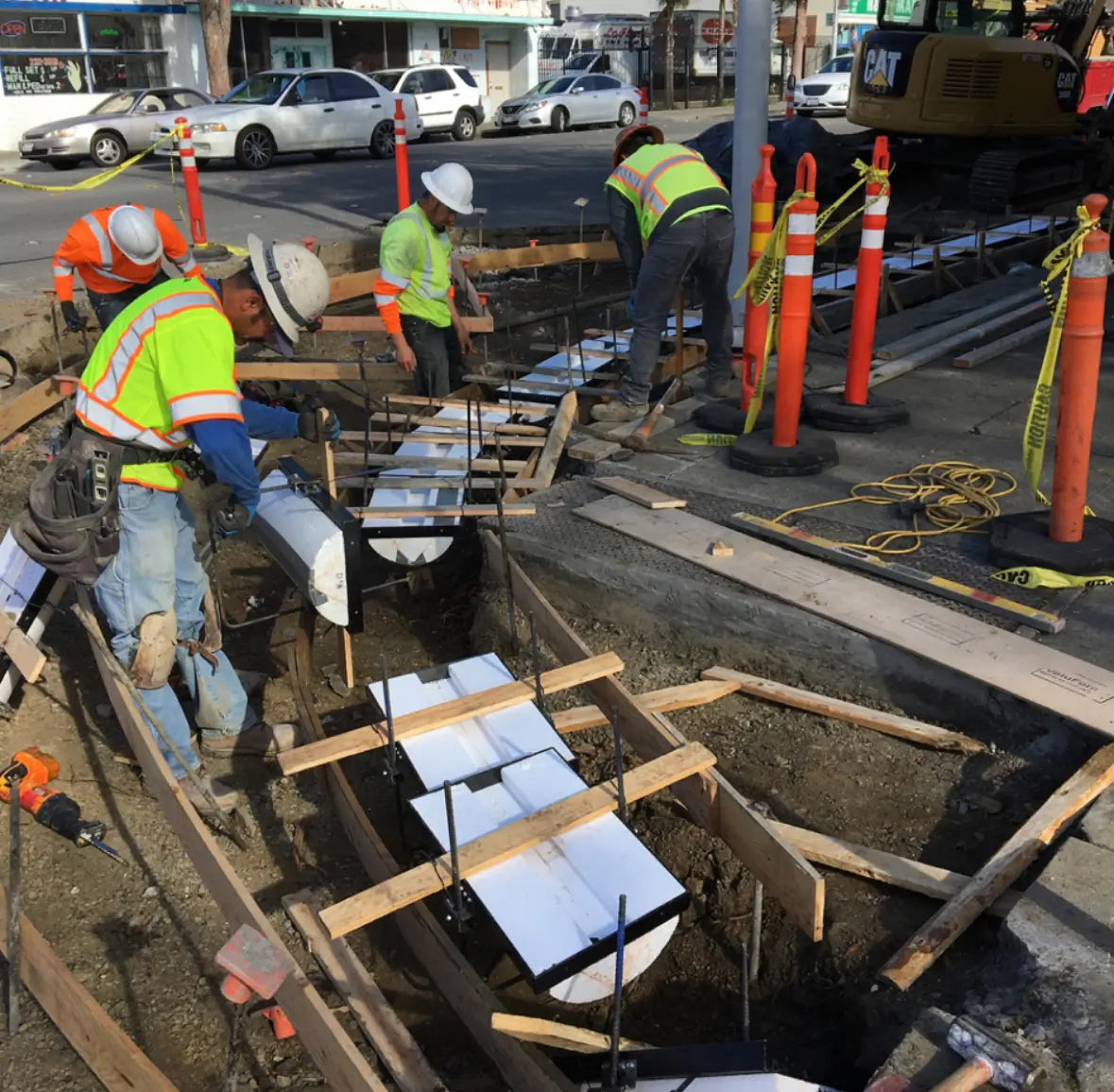

Durable Grating Options for Every Application
The TrenchDrainCo Radius Trench Drain System is compatible with a wide range of high-performance grates, allowing you to choose the best option based on your project’s demands and aesthetic preferences.
- Ductile Iron Grates – Built for industrial strength and heavy-duty applications.
- Polymer Grates – Lightweight, corrosion-resistant, and ideal for moisture-prone environments.
- Stainless Steel Grates – Sleek, modern, and resistant to harsh chemicals.
- ADA-Compliant & Heel-Proof Grates – Ensuring pedestrian safety and accessibility.
Designed for a Variety of Applications
Whether working on commercial, municipal, or residential drainage projects, the TrenchDrainCo Radius Trench Drain System delivers the perfect balance of:
- Architectural flexibility for creative, non-linear designs.
- Structural durability to withstand varying load requirements.
- High-efficiency drainage that optimizes water flow while preventing debris buildup.
Ideal for:
✔ Urban landscapes and pedestrian plazas
✔ Commercial developments and retail spaces
✔ Driveways and curved roadways
✔ Resort and hospitality environments
✔ Public parks and specialty drainage projects
Find the Right Curved Drainage Solution for Your Project
With TrenchDrainCo’s Radius Trench Drain System, you can achieve precision-engineered drainage solutions that align with unique architectural designs while maintaining performance, strength, and longevity.
📞 Call us: 212-946-3798
📧 Email us: info@trenchdrainco.com
TrenchDrainCo – Where Design Meets Functionality in Drainage Solutions.
