Understanding Hydraulics & Slope in Trench Drain Systems
Optimizing Flow Efficiency for Maximum Drainage Performance
Proper trench drain design is critical for managing water runoff, preventing pooling, and ensuring effective discharge in commercial, industrial, and residential applications. The hydraulics, slope, and flow rate of a system determine its efficiency, durability, and maintenance requirements.
At TrenchDrainCo, we engineer trench drain solutions with optimized slope designs to increase water velocity, enhance drainage efficiency, and minimize debris buildup. Understanding these hydraulic principles helps ensure that your drainage system operates reliably and efficiently in any environment.
Key Factors in Trench Drain Hydraulics
-
Flow Rate (Q):
The volume of water passing through a trench drain, measured in gallons per minute (GPM) or cubic feet per second (CFS).
-
Slope (S):
The degree of incline in the trench drain system, which affects water velocity and drainage efficiency.
-
Hydraulic Radius (R):
The ratio of the cross-sectional area of water flow to the wetted perimeter, influencing how efficiently water moves through the channel.
-
Manning’s Equation:
A widely used formula for calculating flow velocity in open channels, factoring in material roughness, slope, and channel geometry.
Manning’s Formula for Trench Drain Hydraulics
V=1nR2/3S1/2V = \frac{1}{n} R^{2/3} S^{1/2}V=n1R2/3S1/2
Where:
- V = Velocity (ft/sec)

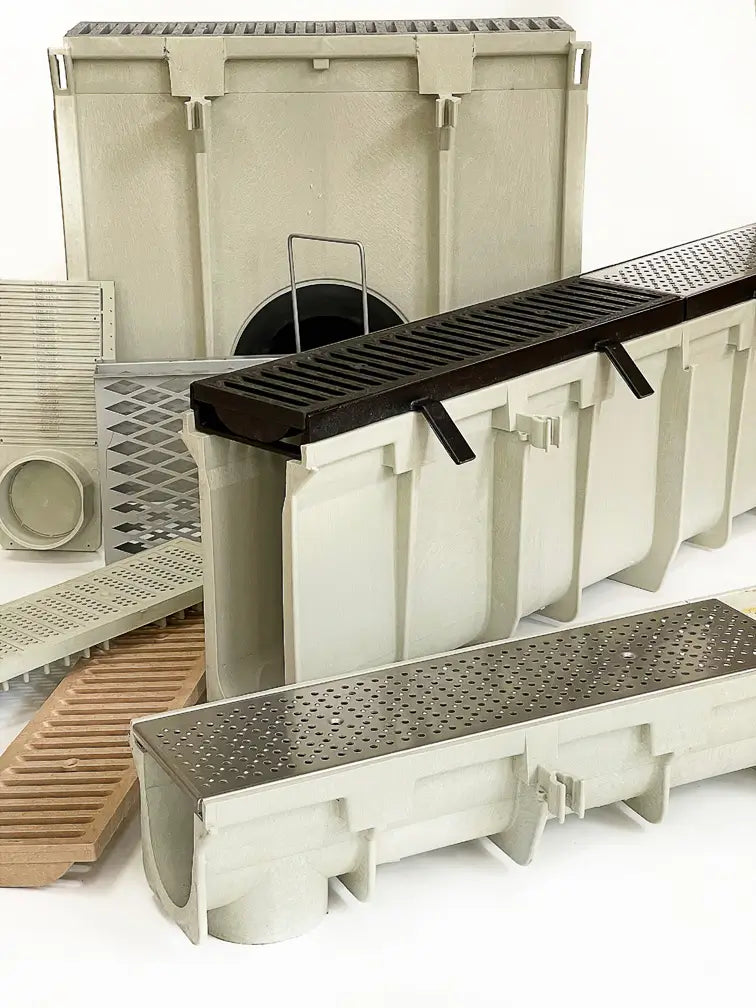

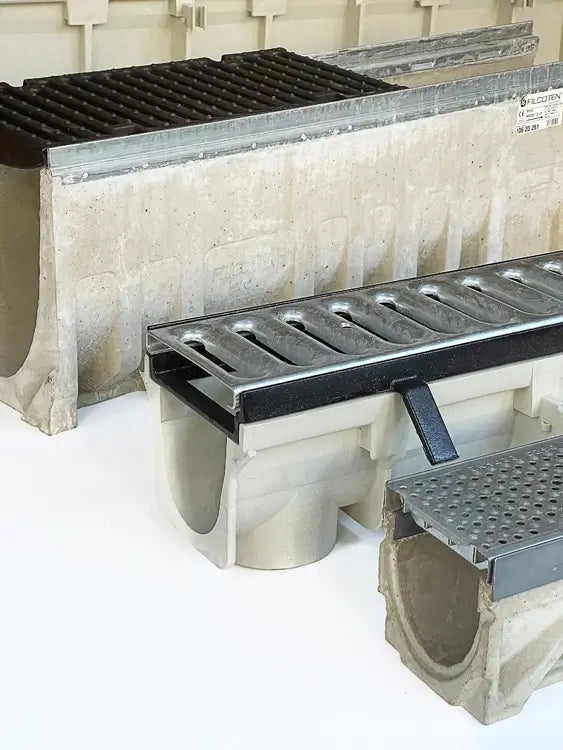

- n = Roughness coefficient (varies by material: HDPE, polymer concrete, stainless steel)
- R = Hydraulic radius
- S = Slope
By optimizing channel material, slope, and hydraulic design, trench drain systems can be engineered to improve water flow and reduce maintenance.

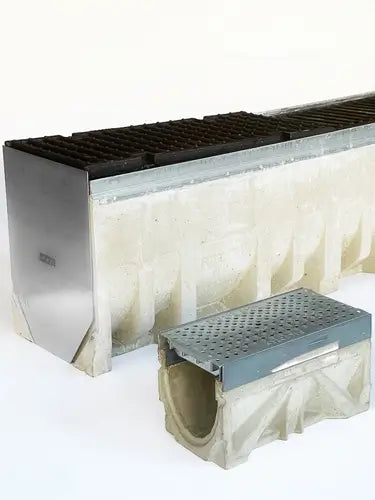

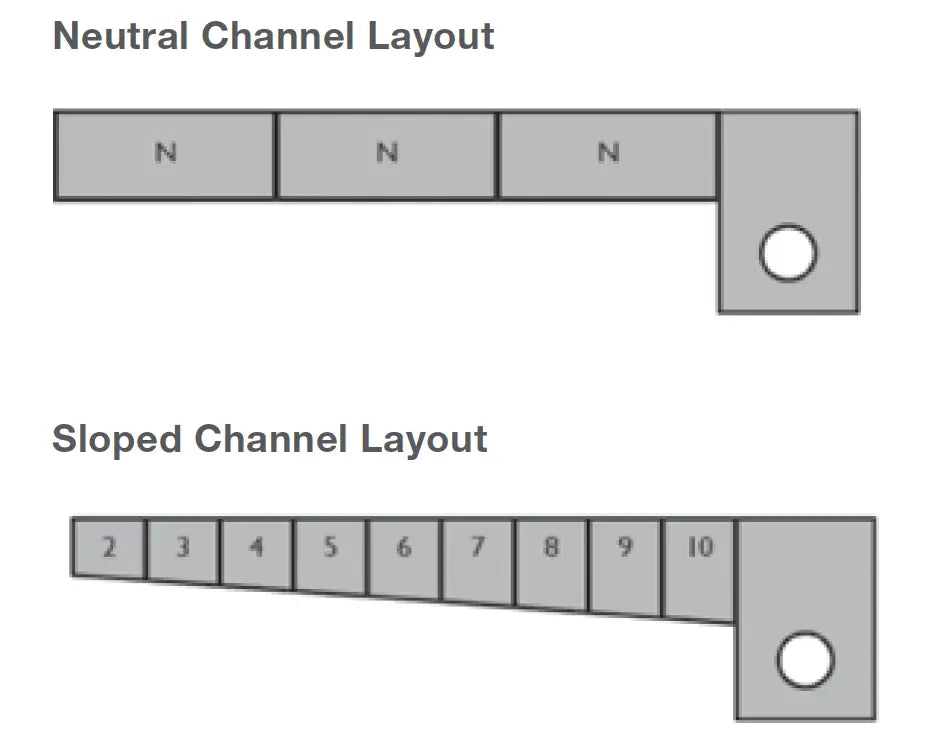

Types of Sloped Trench Drain Systems
-
1. Pre-Sloped Trench Drains
Designed with a continuous built-in slope (typically 0.5% or 1.0%), pre-sloped trench drains increase water velocity, reducing sediment buildup and minimizing maintenance requirements.
Best for: High-flow areas, commercial parking lots, loading docks, breweries, and manufacturing plants.
Advantages:• Faster drainage, preventing water retention.
• Self-cleaning action reduces debris accumulation.
• Ideal for areas requiring high-efficiency water movement.
-
2. Step-Slope Trench Drains
Step-slope trench drains maintain a neutral slope across sections but drop at intervals, accelerating water flow without requiring a deep trench.
Best for: Areas with space constraints or elevation changes where a continuous slope is not feasible.
Advantages:• Increases flow efficiency while reducing excavation depth.
• Effective for staged drainage acceleration.
• Suitable for industrial facilities, airports, and long corridor spaces.
-
3. Neutral Slope (Flat) Trench Drains
Neutral drains do not have a built-in slope and rely on site grading or external piping to manage water flow.
Best for: Garages, patios, pool decks, and flat-surface areas.
Advantages:• Flexible installation that allows integration into any layout.
• Cost-effective for short-run drainage applications.
• Compatible with custom outlet configurations.
Counter-Directional Flow in Trench Drains
-
1. Counter-Flow to Center
• Design: Trench drains slope inward from both ends, directing water to a central outlet.
• Best for: Parking garages, large patios, stadiums, and sports facilities where centralized drainage is needed.
-
2. Counter-Flow to Ends
• Design: Water flows outward from a central high point, directing runoff to drainage outlets at both ends.
• Best for: Industrial floors, streetscapes, and long corridors requiring multiple discharge points.
Choosing the Right Slope for Your Project
Selecting the appropriate slope and trench drain type depends on water volume, debris load, and site layout. Below is a general guideline:
Proper slope selection optimizes hydraulic efficiency, minimizes standing water, and ensures the long-term reliability of your trench drain system.
Optimized Hydraulics for Maximum Performance
TrenchDrainCo’s engineered trench drain systems are designed to:
- Maximize water flow efficiency for rapid drainage.
- Reduce debris buildup, ensuring low-maintenance operation.
- Adapt to specific project requirements and site conditions.
- Provide long-term durability, even in high-load and high-flow environments.
Find the Right Trench Drain Solution for Your Project
Whether you need a pre-sloped trench drain for rapid drainage or a neutral-slope system for flexible installation, TrenchDrainCo offers engineered solutions designed for superior hydraulic performance.
