Frequently Asked Questions

A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.

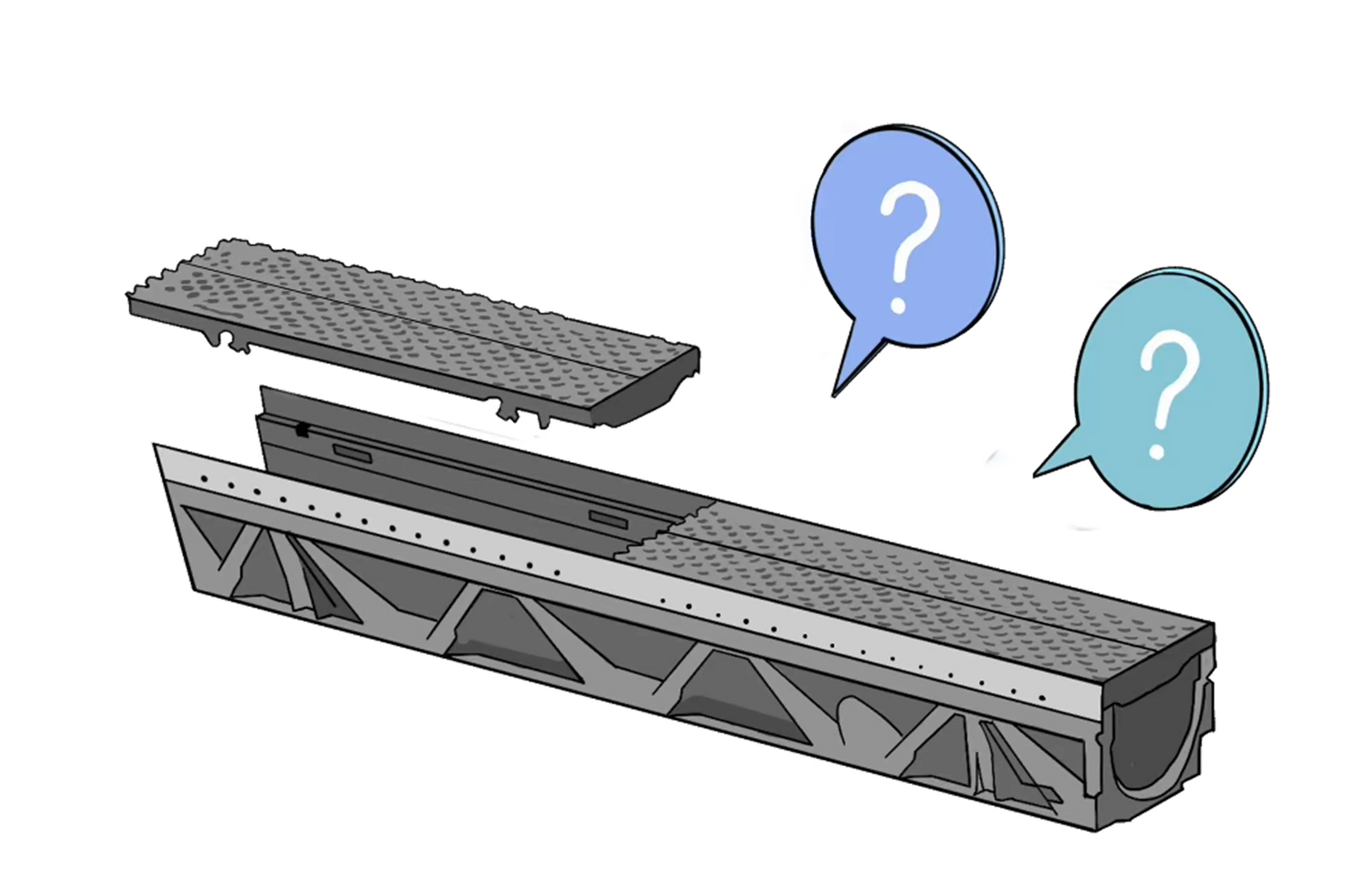

A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.

The terms are often used interchangeably, but a trench drain is the general category, while a channel drain is a specific type that features prefabricated modular components for easy installation.

A drainage ditch is often referred to as a swale, trench drain, or channel drain, depending on its design and purpose.

A trench drain is designed for outdoor or industrial use, covering larger areas, while a floor drain is smaller and used indoors for localized drainage.

Yes, concrete provides structural support and ensures proper alignment. Without a concrete base, the trench drain may shift, leading to failure.

The depth depends on the type of drain and expected water volume. Generally, a minimum of 4–6 inches is recommended, but deeper installations may be necessary for heavy-duty applications.

Yes, trench drains require a slight slope (usually 1–2%) to allow gravity to direct water toward the drainage outlet.

Trench drains are commonly installed in areas prone to water pooling, such as driveways, parking lots, pool decks, patios, garages, and industrial sites.

Gravel is a temporary solution but not as effective as a trench drain for high water volumes or long-term use.

The depth is customizable based on your needs, but industrial and commercial applications often require deeper trenches for higher water flow.

Materials like polymer concrete, stainless steel, and HDPE are commonly used due to their durability and resistance to chemicals, corrosion, and wear.

Without proper maintenance, debris can accumulate and clog the system. Regular cleaning and choosing a grate design that minimizes debris entry can help prevent clogging.

A well-maintained trench drain can last 20–50 years, depending on the material and environmental factors.

Common reasons include improper installation, insufficient slope, inadequate materials, or lack of maintenance.

Traps are not usually required for trench drains unless specified by local building codes. They are more common in systems connected to sewer lines.

Venting is typically unnecessary for trench drains unless connected to a sewer system.

Costs vary based on materials, size, and complexity, ranging from $50–$300 per linear foot, including installation.

High-quality materials, precision engineering, and labor-intensive installation contribute to the cost, but they ensure durability and long-term performance.

Swales and gravel-filled trenches are more affordable alternatives, but they may not provide the same level of effectiveness as trench drains.

French drains are better for subsurface water control, while trench drains excel in handling surface water. The choice depends on your specific drainage needs.

Swales are suitable for natural landscapes with light water flow, but trench drains are better for high-traffic areas and heavy water runoff.

Alternatives include French drains, swales, slot drains, or pervious concrete, depending on your drainage requirements.

Underground drains are often referred to as French drains, sub-drains, or perforated pipe systems.

A slot drain has a narrow slit opening and is less visible, while a trench drain has a wider opening with a removable grate.

Yes, a properly installed trench drain system reduces flooding risks, increases functionality, and can boost property value.

Trench drains are widely used in commercial, industrial, and residential settings, including factories, warehouses, parking lots, and landscaping.

Yes, heavy-duty trench drains are designed to withstand the weight of vehicles in high-traffic areas.

Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
