Driveways are one of the most common problem areas when it comes to residential drainage. Without proper surface water management, runoff can lead to garage flooding, foundation damage, soil erosion, and slippery surfaces in cold weather.
A trench drain system offers one of the most effective ways to prevent water accumulation on or near your driveway. In this article, we’ll explore when and why trench drains are necessary, how to choose the right system for your project, and best practices for installation and long-term maintenance. You’ll also find links to relevant product pages, technical guides, and tools for selecting and sizing the right solution.
Why Install a Trench Drain in a Driveway
Driveways are typically sloped toward or away from the home, often collecting and channeling large amounts of rainwater. Without a drainage solution, this runoff can cause:
- Garage flooding during storms
- Water seeping into basements or crawl spaces
- Erosion of landscaping or adjacent soil
- Pavement deterioration from freeze-thaw cycles
- Mold, algae, or mildew buildup on concrete surfaces
A well installed trench drain intercepts surface water before it reaches critical structures. It provides a long, narrow inlet for water to flow into and directs it toward a safe discharge location—such as a storm drain, dry well, or drainage field.
When to Use a Trench Drain in a Residential Setting
Trench drains are ideal for driveways that meet any of the following conditions:
- Sloped toward a garage or entryway
- Located on hilly terrain with uncontrolled runoff
- Adjacent to retaining walls, foundations, or basement windows
- Near landscaping that experiences erosion or ponding
- Prone to icing or pooling near garage thresholds
Explore residential drainage challenges and solutions in our drainage system guide.
Common Driveway Drainage Problems Solved by Trench Drains
- Water flowing into the garage during rain events
- Icing in winter where water pools at the garage apron
- Staining or discoloration of pavers, concrete, or asphalt
- Undermining of driveway edges and curb lines
- Weeds and moss growing in cracks caused by standing water
A properly sized and installed trench drain system can address all of the above by capturing and redirecting water efficiently.
Choosing the Right Trench Drain for Your Driveway
1. Channel Width and Depth
Most residential driveway trench drains use channels between 4 and 6 inches wide. These sizes are sufficient to handle typical runoff volumes without requiring deep excavation.
For driveways exposed to large volumes of water or heavy runoff from adjoining slopes, consider a system with a wider or deeper channel.
Visit our HDPE trench drain systems page for options designed for residential and light commercial use.
2. Material Selection
The material of your trench drain system determines durability, resistance to chemicals, and ease of installation.
HDPE (High-Density Polyethylene):
- Lightweight and easy to install
- Corrosion-resistant and durable
- Ideal for DIY or contractor-installed residential applications
Polymer Concrete:
- Stronger and more rigid
- Handles heavier vehicular loads
- Recommended for homes with commercial vehicles or steep drive slopes
Stainless Steel:
- Used in high-end or decorative settings
- Offers clean aesthetics and chemical resistance
- Typically more expensive and used for specialty installs
Use our material comparison guide to determine which material suits your application best.
3. Grate Style and Load Rating
Grates are the visible portion of the trench drain and play a key role in safety, aesthetics, and structural integrity.
|
Grate Material |
Load Rating |
Best For |
|
Plastic or HDPE |
Pedestrian/B125 |
Foot traffic, light vehicles |
|
Galvanized Steel |
C250 |
Standard residential vehicles |
|
Cast Iron |
D400 |
Large pickups, commercial vehicles |
|
Stainless Steel |
B125–C250 |
Decorative or corrosion-prone areas |
Decorative grates are also available for upscale homes or visible driveway areas. Browse our grate selection guide to view available options.
4. Load Classes and Driveway Traffic
Use the correct load class based on the types of vehicles using your driveway.
|
Load Class |
Weight Limit |
Application |
|
A15 |
3,300 lbs |
Pedestrian only |
|
B125 |
27,500 lbs |
Light vehicles (cars, SUVs) |
|
C250 |
55,000 lbs |
Driveways with frequent use |
|
D400 |
88,000 lbs |
Large trucks or RVs |
For most residential projects, a B125 or C250-rated grate is appropriate. For driveways accessed by delivery trucks or trailers, consider upgrading to D400.
Where to Place Trench Drains on a Driveway
Placement depends on slope, drainage patterns, and proximity to structures.

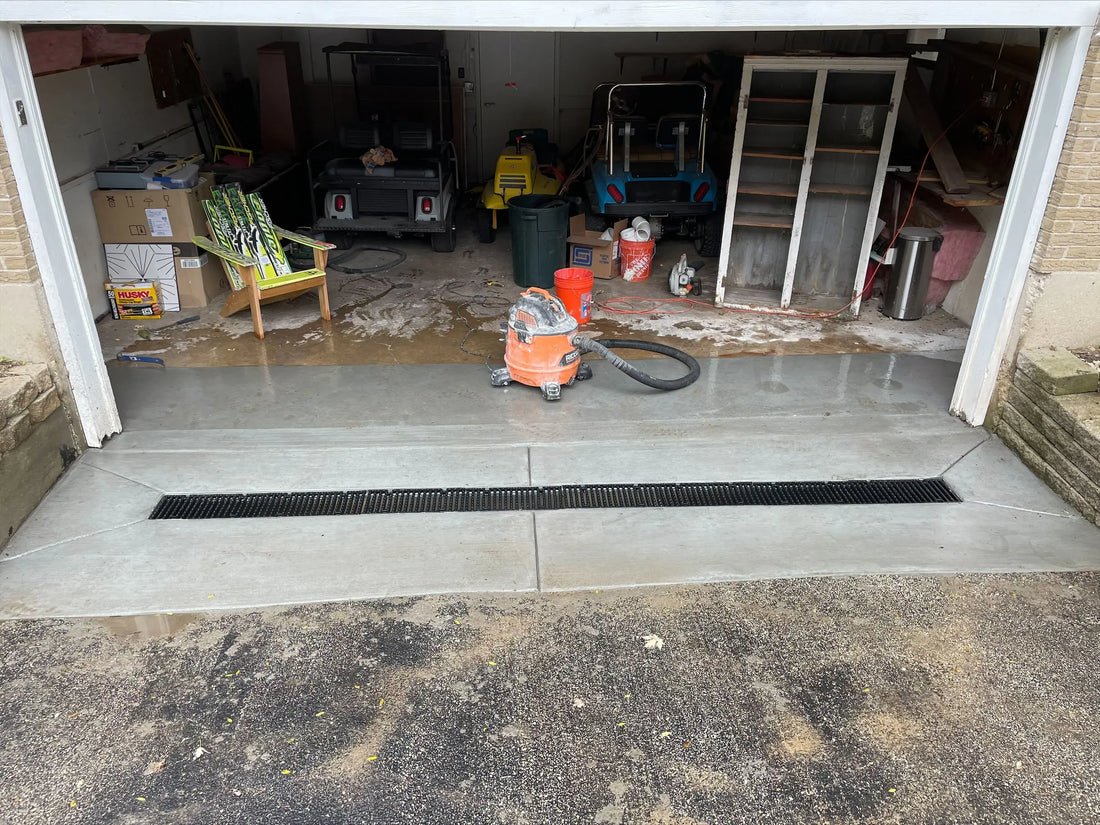

- At the garage threshold: Prevents water from entering garage doors
- Mid-driveway: Ideal for long sloped driveways or homes on hills
- At the base of the driveway: Captures water before it enters the street or public sidewalk
- Adjacent to landscaping or retaining walls: Protects from erosion and overflow
Multiple drains can be installed in a series for longer or multi-directional driveways. Use our trench drain layout plannerto get started.
Installation Tips for Driveway Trench Drains
Proper installation ensures both functionality and long-term durability. Consider the following steps:
-
Excavation
Dig a trench wide enough to allow 3–6 inches of clearance on all sides of the channel. -
Base Preparation
Use compacted crushed gravel or a concrete base under the channel to support the load. -
Positioning and Leveling
Set the trench drain at the proper slope—typically 0.5 to 1 percent—to ensure drainage toward the outlet. -
Securing the Channel
Anchor the channel using rebar stakes, flanges, or integrated mounting hardware. -
Concrete Backfill
Pour concrete around the trench drain body, leaving the grate flush with the surrounding driveway surface. -
Connection to Discharge
Connect the outlet to a French drain, dry well, stormwater system, or lawn drainage area.
See detailed steps and downloadable checklists in our installation guide.
Discharge Options
Where the water goes after entering the trench drain is just as important as the drain itself. Common discharge options include:
- Storm sewer or curb connection (if allowed by code)
- Dry well or gravel infiltration pit
- Rain garden or bioswale
- Underground retention tank or rainwater harvesting system
- Pop-up emitter in a landscaped area
Consult with your local building department to ensure code compliance for outlet discharge.
Maintenance Requirements for Residential Trench Drains
Proper maintenance is simple and helps preserve functionality.
- Monthly: Remove debris from the grate surface
- Quarterly: Remove grate and clean out sediment or leaves inside the channel
- Annually: Flush the system and inspect for cracks or shifting
- After major storms: Inspect outlet pipes for blockage or backflow
Stainless steel and HDPE grates are especially easy to maintain and corrosion-resistant.
Aesthetic Considerations
Driveway trench drains don’t have to be an eyesore. In fact, they can be integrated seamlessly into your design.
- Decorative stainless or aluminum grates can add visual appeal
- Painted or powder-coated grates can match pavers, brick, or concrete tones
- Linear patterns create a modern look that blends with contemporary hardscaping
Visit our decorative grate gallery for inspiration.
Budgeting and Cost Estimates
|
Component |
Estimated Price Range (Per Linear Foot) |
|
HDPE System |
$45–$90 |
|
Polymer Concrete |
$90–$160 |
|
Stainless Steel |
$140–$250 |
|
Decorative Grate Upgrade |
+$30–$80 |
|
Installation (Pro) |
$30–$70 |
|
DIY Install |
Lower, but labor-intensive |
See our trench drain cost breakdown for more details on pricing by material and layout complexity.
Summary: Key Factors for Driveway Trench Drains
- Choose a drain width of 4–6 inches for most residential applications
- Use HDPE or polymer concrete for durability and value
- Select a grate rated B125 or higher based on expected traffic
- Install near the garage, base, or slope break of the driveway
- Ensure proper slope and outlet connection for reliable flow
A properly installed trench drain enhances both function and curb appeal while protecting your home from water damage and costly repairs.
Next Steps
Browse our complete line of driveway trench drain systems to find the right system for your project. Use our calculator to size your system, or reach out to our technical team for help designing a custom layout.
