A trench drain system is only as effective as its installation. Whether for a commercial site, industrial facility, or residential property, proper trench drain sizing and installation ensures long-term performance, structural integrity, and regulatory compliance.
In this step-by-step guide, we’ll walk through trench drain installation from start to finish—including planning, excavation, leveling, anchoring, backfilling, and finishing. You’ll also find links to pre-sloped trench drain systems, installation accessories, and technical drawings to support your next project.
Why Trench Drain Installation Matters
Incorrect trench drain installation can lead to:
- Water pooling and improper flow
- Cracked channels or grates due to traffic stress
- Sinking or shifting due to poor concrete backfill
- Debris buildup at slope transition points
- Regulatory issues for ADA or DOT projects
Taking the time to follow best practices ensures your drainage system performs as designed—for decades.
Tools and Materials Needed
Before beginning the installation, gather the following:
Tools
- Tape measure
- Level or laser level
- Chalk line or marking spray
- Concrete saw or trenching tool
- Shovel or mini excavator
- Rebar, form boards, or stakes
- Trowel and finishing tools
- Socket wrench or grate key (for bolted grates)
Materials
- Trench drain system (channel sections, grates, end caps, outlets)
- Reinforced concrete (typically 3,000–4,000 psi)
- Expansion joint material (if needed)
- Grout, sealants, or bonding agents
- Optional: epoxy coating or anti-corrosion treatment
Explore our full line of trench drain installation kits.
Step-by-Step Trench Drain Installation
Step 1: Plan and Measure
- Determine drainage path and slope (typically 1% for pre-sloped systems)
- Identify outlet location and connection point to stormwater system
- Mark drain line using chalk or spray paint
- Ensure system length and trench width are appropriate for the selected drain model
Use our trench drain sizing calculator to confirm flow rate and channel dimensions.
Step 2: Excavate the Trench
- Excavate 4–6 inches wider and deeper than the trench drain channel
- Include additional depth for concrete base (typically 4–6 inches)
- Maintain consistent grade along the entire length of the trench
- Compact the soil base to reduce settling risk
Step 3: Prepare the Base and Layout
- Pour a 4–6 inch thick concrete footing (base slab)
- Allow proper curing time (or use fast-set concrete if time-constrained)
- Begin dry-fitting the trench drain sections, starting from the outlet
- Ensure channels are oriented correctly, especially for pre-sloped systems
- Use rebar or form boards to maintain position and elevation
Download detailed drawings for layout accuracy.
Step 4: Connect and Anchor Channel Sections
- Connect channel sections using tongue-and-groove or coupling systems
- Seal joints with adhesive or silicone (if required by system spec)
- Anchor using rebar clips or brackets to prevent floating during pour
- Check alignment, elevation, and slope continuously
Step 5: Pour Concrete Surround
- Pour concrete on both sides and around the channel body
- Maintain at least 4” thickness on each side and 6” underneath
- Use a vibrator or trowel to eliminate air pockets
- Smooth the surface and apply slope toward trench grate
- Avoid pouring above the top of the frame or grate ledge
Let concrete cure for 24–48 hours before applying load.
Step 6: Install Grates and Accessories
- Once concrete is cured, install the trench grates
- Ensure grates are securely bolted or clipped (especially for vehicle zones)

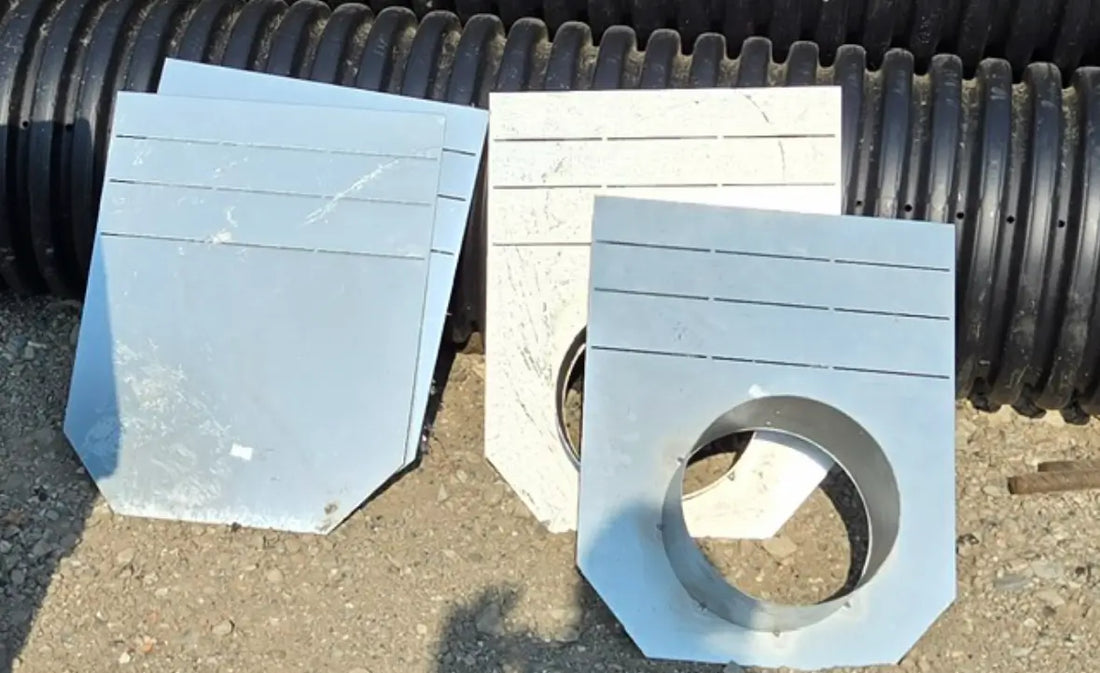

- Install end caps, outlet adapters, and sediment baskets if needed
- Apply anti-seize compound to bolts to ease future maintenance
Browse trench drain grates by material for heavy-duty and ADA-compliant options.
Typical Installation Timeline
|
Phase |
Estimated Time |
|
Planning and layout |
1–2 hours |
|
Excavation |
1–4 hours (depending on length/equipment) |
|
Base prep and layout |
1–2 hours |
|
Concrete pour and cure |
1–2 days |
|
Final grate install |
1 hour |
Larger commercial installations may span multiple days. Always factor in weather and curing time.
Tips for a Successful Installation
- Always verify slope with a level or laser before concrete pour
- Backfill evenly to prevent tilting or twisting of channel sections
- Do not overload channel before concrete has cured fully
- Avoid overtightening grate bolts—hand tighten and re-check later
- Protect system from construction debris if project is ongoing
Download our installation checklist for field verification.
Common Mistakes to Avoid
|
Mistake |
Impact |
|
Water pooling, low flow efficiency |
|
|
Shallow concrete surround |
Structural failure under load |
|
Grates not secured |
Dislodgement, safety hazards |
|
No clean-out access |
Costly maintenance later |
|
Inconsistent trench depth |
Misalignment of channel slope and grates |
Need help troubleshooting or designing your install? Contact our technical support team.
ADA and Load Class Considerations
- Pedestrian zones: Use ADA-compliant heel-proof grates with small openings
- Driveways or loading docks: Minimum Class C250 or D400 grates
- Airport or heavy truck traffic: F900 rated systems with ductile iron grates
Visit our load class chart to select the appropriate grade for your application.
Maintenance
- proper installation is key
- keeping the drain clean, increase of longevity
- take a look at our helpful guide on proper maintenance here.
Summary: Trench Drain Installation at a Glance
|
Phase |
Action |
|
Planning |
Measure slope, locate outlet, choose system |
|
Excavation |
Dig to accommodate base + channel dimensions |
|
Base |
Pour concrete base and position channels |
|
Anchor & Align |
Set slope, connect sections, anchor securely |
|
Backfill |
Pour surround concrete evenly and finish surface |
|
Finalize |
Install grates, check fasteners, test flow |
