Stormwater pooling, freeze–thaw cracks, chemical spills—poorly managed surface water can ruin pavement, corrode equipment, and shut down operations. A trench drain system solves these problems by moving runoff quickly and safely to a collection point, protecting structures, people, and profits.
Whether you’re specifying drainage for a 1,000-foot rail terminal or upgrading a residential driveway, understanding trench drains is the first step to a watertight design.
What Exactly Is a Trench Drain?
A trench drain (sometimes called a linear drain or channel drain) is a long, narrow surface drainage structure consisting of a U-shaped channel topped with a removable grate. Unlike point drains, which collect water at a single inlet, trench drains create a continuous interception line, capturing sheet flow over large areas and conveying it to storm sewers or retention systems.
Key Characteristics
|
Feature |
Description |
Why It Matters |
|
Continuous capture |
Collects water along an entire run |
Prevents ponding in flat areas |
|
Custom slope |
Neutral or pre-sloped channels |
Improves flow capacity |
|
Load-rated grates |
A15 to F900 per EN 1433 |
Matches pedestrian to aircraft loads |
|
Modular lengths |
0.5 m–4 m sections |
Fast install, easy repairs |
Core Components of a Trench Drain System
1. Channel Body
- Function: Forms the waterway.
- Common materials: HDPE, polymer concrete, fiber-reinforced concrete, stainless steel.
- Selection tip: Match chemical resistance and temperature range to the site environment.
2. Grate or Cover
- Function: Allows water entry while providing a traffic-safe surface.
- Options: Ductile iron (heavy-duty), galvanized or stainless steel slotted, perforated, heel-proof, ADA decorative.
- See our full Trench Drain Grate Types guide.
3. Frame (if separate)
Protects the channel edge, distributes wheel loads, and locks the grate in place. Most heavy-duty steel frames use anchor studs that embed into concrete pour.
4. End Caps & End Outlets
Seal the run or connect it to vertical piping. Order the correct outlet size (e.g., 4 in, 8 in) to avoid on-site coring.
5. Catch Basin (Silt Basket)
Installed at low points to trap sediment and debris before the line enters storm piping.
How Does a Trench Drain Work? Hydraulics 101
- Surface Capture – Sheet flow drops through the grate slots.
- Channel Conveyance – Water velocity increases if the channel is pre-sloped (factory-formed at 0.5–1 percent). Neutral channels rely on site pitch or pumped discharge.
- Outlet Discharge – Flow exits to a storm sewer, infiltration trench, or oil-water separator.
Manning’s Equation in Plain English
Q = (1.49/n) × A × R^2/3 × S^1/2
- Q: flow rate (cfs)
- A: cross-sectional area (ft²)
- R: hydraulic radius (ft)
- S: slope (ft/ft)
- n: roughness coefficient
For specifiers, sizing software or charts simplify the math; you’ll input peak rainfall (100-yr storm), contributing area, and slope to choose a channel width/depth.
Material Comparison: Pros & Cons
|
Material |
Strength & Load |
Chemical / Temp Resistance |
Weight & Install Ease |
Typical Uses |
|
HDPE |
Up to D400 with steel frame |
Excellent chemical, -40 °F to 180 °F |
Light; one-person lift |
Warehouses, food plants |
|
Polymer Concrete |
Up to F900 (aircraft) |
Very high acid/solvent |
Moderate |
Airports, ports |
|
Fiber-Reinforced Concrete |
E600–F900 |
Good; seal joints |
Heavy |
Heavy truck aprons |
|
Stainless Steel (304/316) |
C250–E600 |
Best for corrosives & high heat |
Custom fabricated |
Breweries, labs, pharma |
Top Applications & Real-World Examples
- Industrial Manufacturing – Heavy forklifts + metal shavings → polymer concrete trench drain with F900 ductile-iron grates.
- Airport Aprons – Jet fuel and de-icing fluids → stainless steel pre-sloped channel, continuous neoprene gasket.
- Food & Beverage – Clean-in-place chemicals → stainless trench drain with slotted heel-proof grates.
- Parking Lots – Freeze–thaw cycles → HDPE pre-sloped trench drain anchored in concrete collar.
- Driveways & Pool Decks – Foot traffic → decorative stainless or polymer-composite covers.
Advantages vs. Alternatives
|
Drainage Method |
Pros |
Cons |
Best For |
|
Trench drain (linear) |
Handles large runoff; aesthetic grates; fewer inlets |
Larger excavation than point drains |
Wide flat areas |
|
Slot drain |
No grate maintenance |
Limited surface intake; safety on heels |
Breweries, cold storage |
|
French drain |
Subsurface capture; no visible grate |
Not suitable for heavy flow |
Yards, small landscape |
|
Traditional inlet (point) |
Small excavation |
Multiple inlets needed; prone to clogging |
Parking garages |
Specification Checklist (Don’t Skip These)
- Load Class Rating (A15 pedestrian → F900 aircraft).
- Slope Requirement (pre-sloped factory vs neutral onsite pour).
- Chemical Compatibility (oils, acids, salts).
- Thermal Range (hot wash, de-icing).
- Joint Sealants (epoxy, polyurethane, butyl mastic).
- Grate Locking Mechanism (bolt-down, bar-lock, quick-click).
- Backfill & Rebar (meets ACI concrete cover guidelines).
Print this checklist—or link to our Load Class PDF specification sheet—to ensure product success.

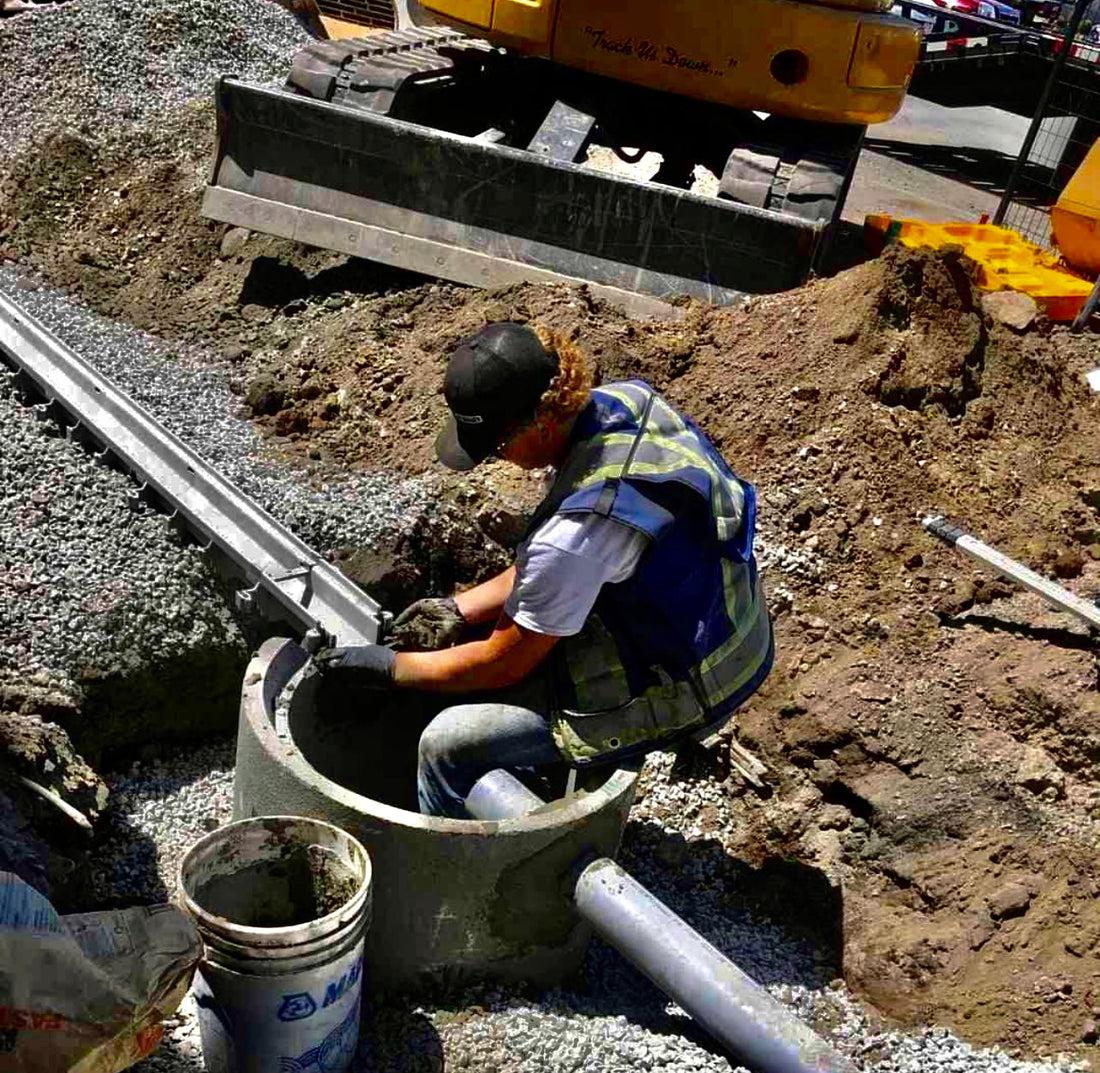

Installation at a Glance
Full 40-step guide: Visit our Trench Drain Installation 101 post.
- Survey elevations; chalk slope line.
- Excavate trench width (channel outer + 4 in clearance).
- Lay leveling concrete bed or compacted base.
- Set first channel (outlet end) to final invert elevation.
- Snap rebar through anchor loops or frame studs.
- Connect male–female tongue-and-groove joints; apply sealant.
- Pour concrete sidewalls flush or 1/8 in above grate.
- Torque grate bolts after curing; perform water test.
Pro tip: For long runs (> 150 ft), design expansion joints every 40 ft to relieve thermal stress.
Maintenance & Life-Cycle Costs
A well-designed and properly installed trench drain can 10+ years with proper system maintenance and cleanout
|
Task |
Frequency |
Cost Impact |
|
Visual grate inspection |
Monthly |
Detect damage early |
|
Remove debris baskets |
Quarterly (or storm-event) |
Prevent clogging |
|
Pressure wash channel |
Bi-annually |
Retains flow capacity |
|
Re-torque grate bolts |
Annually |
Safety compliance |
HDPE channels with snap-lock grates typically require 30 % less labor time than bolted iron grates, reducing total cost of ownership for light-duty sites.
Common Design & Install Mistakes
- Undersized Outlet Pipe – Causes backup; outlet must exceed minimum channel area.
- Wrong Load Class – Ductile-iron grates crack under forklifts if rated only to C250.
- No Concrete Collar – Edge chipping and channel float occur in asphalt-only pours.
- Poor Joint Seal – Differential settlement introduces leaks and odors.
- Insufficient Slope – Water stagnates, breeding mosquitoes and algae.
Avoiding these five errors can cut rework costs on commercial projects.
Quick Case Snapshot
Project: 150 ft heavy-duty trench drain at a BART rail terminal
Problem: Trackside flooding and ballast washouts.
Solution: E600 Ductile Iron Slotted Grates and polymer-concrete channels with integrated steel frame, .05% pre-slope.
Result: Success, 200 series
Conclusion & Next Steps
A trench drain system is more than a grate in a hole—it’s engineered hydraulics that protect assets and people from water damage. By matching load class, slope, and materials to your site conditions, you’ll deliver a drainage solution that outperforms and outlasts traditional point inlets.
