Airports, transit terminals, and transportation infrastructure demand the highest level of performance from every component—including drainage. With heavy wheel loads, constant traffic, and strict safety regulations, trench drain systems for airports, helicopter pads and transportation hubs must be engineered for durability, efficiency, and compliance.
In this article, we explore the challenges unique to airport and transit environments, trench drain system requirements, key material and load class considerations, and installation best practices. You’ll also find links to our heavy-duty trench drain products, DOT-approved drainage systems, and airport drainage project expertise.
Why Drainage Matters in Airports and Transportation Facilities
Airports are expansive, impervious surfaces that generate massive volumes of surface water during rain, snowmelt, or aircraft washdown. Poor drainage can:
- Create standing water and hydroplaning risks on taxiways and runways
- Lead to pavement deterioration or sub-base failure
- Interfere with ground support equipment (GSE) operations
- Cause terminal flooding or utility damage
- Violate FAA and environmental stormwater regulations
Well-designed trench drains ensure efficient water evacuation while protecting both infrastructure and safety.
Unique Drainage Challenges in Transportation Settings
-
Heavy Point Loads
Aircraft wheels, baggage carts, and service vehicles apply concentrated loads—far greater than in commercial or even industrial environments. Let’s have an in-depth look of load class and ratings here. -
High-Volume Runoff
Aprons and runways must drain quickly to avoid FOD (foreign object debris), pooling, or slip hazards. -
Fuel and Chemical Exposure
Jet fuel, deicers, hydraulic fluids, and chemicals demand corrosion-resistant materials. -
Freeze-Thaw Cycles
Many airports experience extreme temperature swings, requiring thermal-stable materials. -
Stringent Engineering Standards
All drainage infrastructure must meet FAA, DOT, and local engineering codes.
Where Are Trench Drains Used in Airports?
|
Location |
Drainage Role |
|
Runways & Taxiways |
Remove stormwater to prevent hydroplaning |
|
Aircraft Aprons |
Manage washdown and fueling runoff |
|

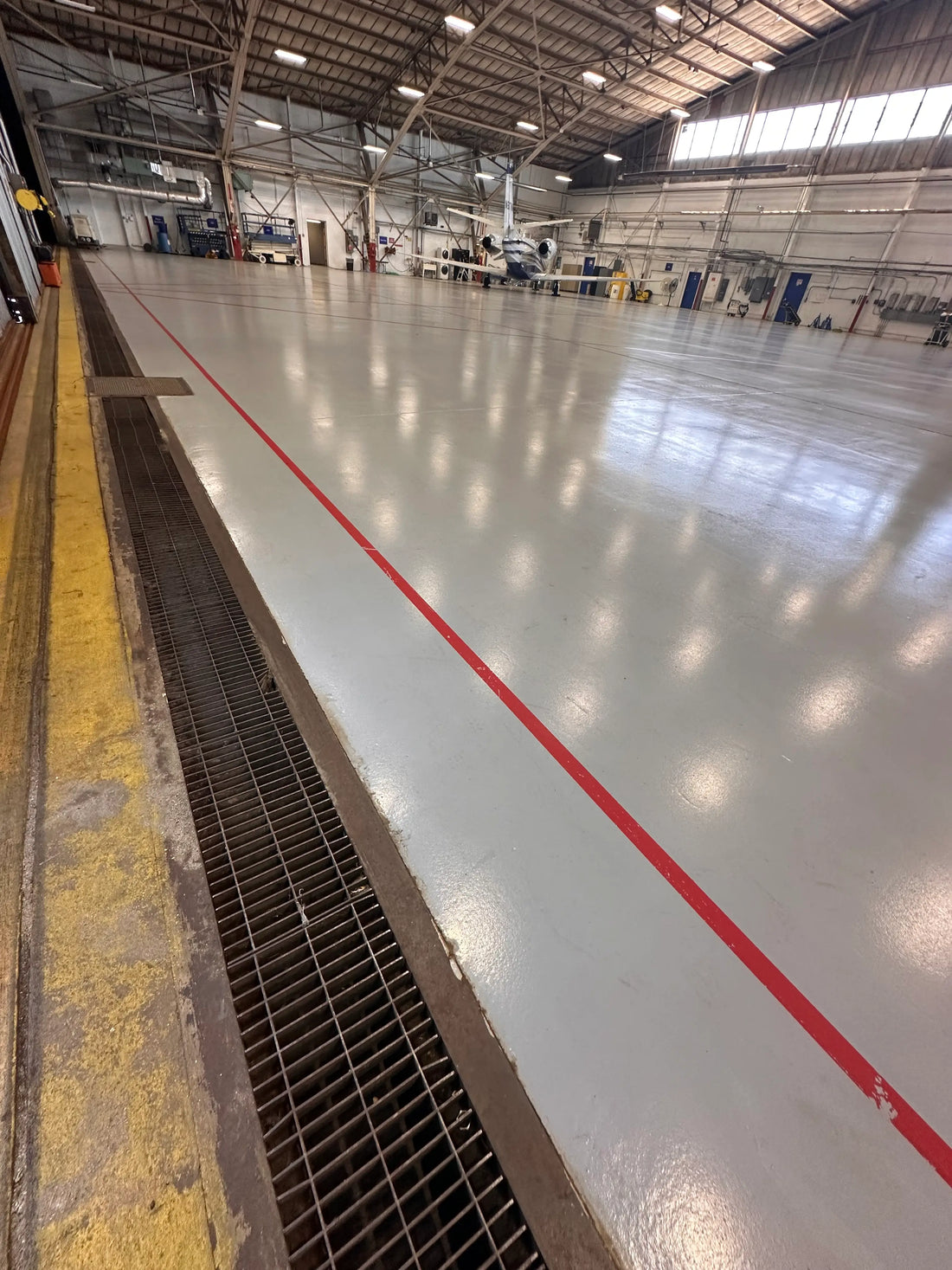

Hangars |
Drain large interior spaces and cleaning bays |
|
Maintenance Facilities |
Handle oil, fuel, and chemical runoff |
|
Parking Garages |
Prevent ponding, protect structural slabs |
|
Terminal Drop-Off Zones |
Manage foot and vehicle traffic water load |
Explore our airport drainage system capabilities for real-world applications.
Trench Drain Load Class Requirements
Airport trench drain systems must be able to withstand extremely high wheel loads without deformation or failure. The minimum recommended class for aircraft traffic is F900.
|
Load Class |
Capacity (lbs) |
Use Case |
|
D400 |
Up to 88,000 lbs |
Baggage and service vehicle zones |
|
E600 |
Up to 132,000 lbs |
Fueling areas, terminals |
|
F900 |
Up to 198,000 lbs |
Runways, taxiways, aircraft load zones |
Use our load class chart to identify appropriate grate and system ratings.
Recommended Materials for Airport Drainage
Polymer Concrete Channels
- High compressive strength
- Resistant to freeze/thaw cycling
- Pre-sloped options available
- Excellent chemical resistance
Ductile Iron Grates
- Superior load bearing for aircraft
- Slot, bar, or heel-proof patterns
- Bolt-down options for secure fit
Galvanized or Stainless Steel Frames
- Integrated edge protection
- Resists wheel abrasion and impacts
- Protects surrounding concrete from cracking
We offer fully integrated polymer concrete trench drain systems for F900-rated applications.
Key Design Features for Airport Trench Drains
- Pre-sloped channels to maintain rapid flow over long runs
- Monolithic or modular construction for faster installation and alignment
- Heavy-duty frame rails for added edge protection
- Bolt-down grates to prevent dislodgement from wheel traffic
- Catch basins or clean-outs at intervals for maintenance access
- Hydraulic design compatibility using Manning’s Equation for flow
Need help with engineering specs? Our design support team can assist with CAD files and layout planning.
Compliance and Specification Standards
FAA and DOT Requirements
- Must comply with FAA AC 150/5320-5D for airfield drainage
- Load ratings, frame integrity, and slope must meet DOT and AASHTO specifications
- Must support stormwater retention/detention plans for runoff control
ADA and OSHA Guidelines
- Trench drains in pedestrian zones (drop-off areas, terminals) must use ADA-compliant, heel-proof grates
Environmental Regulations
- Drainage systems in fueling zones must include oil separators or water treatment per EPA SPCC guidelines
Explore our DOT-compliant trench drain systems for more information.
Installation Best Practices for Airports and Transit Hubs
- Concrete surround depth should be at least 4–6 inches on all sides
- Use integrated rebar supports and form anchors for stability
- Apply expansion joints at intervals to mitigate thermal movement
- Ensure channel alignment to maintain consistent slope
- Test for flow capacity and secure all bolts before commissioning
See our trench drain installation guide for best practices and equipment lists.
Maintenance Considerations
While trench drains in airfield applications are designed to be durable, regular maintenance ensures continued performance:
|
Task |
Frequency |
|
Grate Inspection |
Monthly |
|
Sediment Removal |
Quarterly |
|
Outlet Flow Check |
Biannually |
|
Jet Washing |
Annually or as needed |
|
Fastener Tightening |
After extreme use or snow plow season |
Download our maintenance checklist to keep your facility's drainage plan in compliance.
Real-World Applications
Trench drain systems are engineered for high-performance transportation projects. Installations include:
- Military bases with F900-rated ductile iron grates
- Commercial airports with frame and grate or class D, E or F framed polymer concrete trench drains, Depending on the size of the plane. Please consult in engineer for proper load rating capacity.
- Bus terminals using ADA-compliant galvanized steel grates
- Maintenance hangars with chemical-resistant slot drain systems
Learn more about our airport drainage projects and heavy-duty installations.
Summary: What Makes a Trench Drain Suitable for Airports?
|
Feature |
Requirement |
|
Load Rating |
F900 or higher in aircraft zones |
|
Channel Material |
Polymer concrete or reinforced HDPE |
|
Grate Material |
Ductile iron or steel, bolted down |
|
Slope |
Pre-sloped for rapid water movement |
|
Frame Protection |
Galvanized or stainless edge rails |
|
Maintenance Access |
Clean-outs or catch basins required |
|
Compliance |
FAA, DOT, ADA, and EPA regulations |
In environments where downtime is not an option, choosing the right trench drain system ensures safety, longevity, and regulatory compliance.
