Pool Trench Drains
Pool areas demand trench drain systems that combine safety, hygiene, and aesthetics. Around swimming pools, water management is critical to prevent slippery surfaces, standing water, and bacteria growth. A properly engineered pool trench drain ensures fast water evacuation while maintaining a sleek, low-profile appearance that integrates with tile, concrete, or paver decks.
Key Requirements
-
Load Rating
Typically A15 load class, suitable for pedestrian areas only.
Pool drains are not designed for vehicular traffic but must support regular foot traffic and maintenance equipment. -
Material Durability
Resistance to chlorine, pool chemicals, and UV exposure is essential.
• HDPE or PVC channels resist chemical corrosion and fading.
• Stainless steel grates (304 or 316 grade) offer long-term corrosion resistance in chlorinated or saltwater environments.
• Polymer concrete or FRC (Fiber-Reinforced Concrete) channels for architectural installations needing higher rigidity.
-
Site Conditions
Pool decks often require precise slope alignment to prevent backflow toward the pool.
• Ensure proper slope toward the channel (1–2%) for effective drainage.
• Waterproof sealants should be used to prevent leakage beneath tiles or slabs.
-
User Requirements

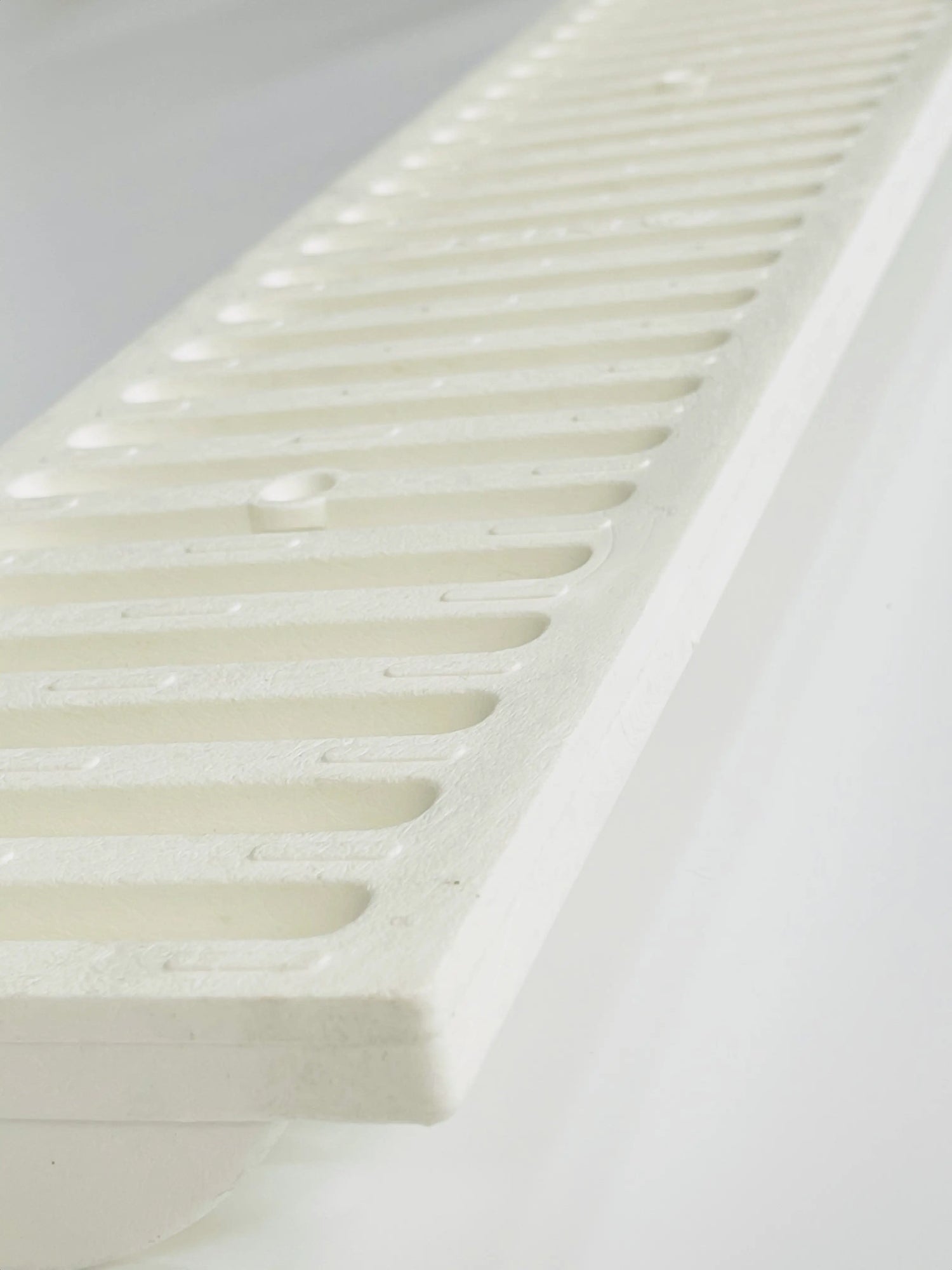

• Slip resistance: Grates should be non-slip and heel-proof.
• Aesthetics: Linear, minimalist look with color options to blend into deck materials.
• Hygiene: Smooth internal channel surface to prevent algae buildup and facilitate cleaning.
• Easy maintenance: Removable top grates for access and debris removal.
Recommended TrenchDrainCo Systems
TrenchDrainCo 600 Series

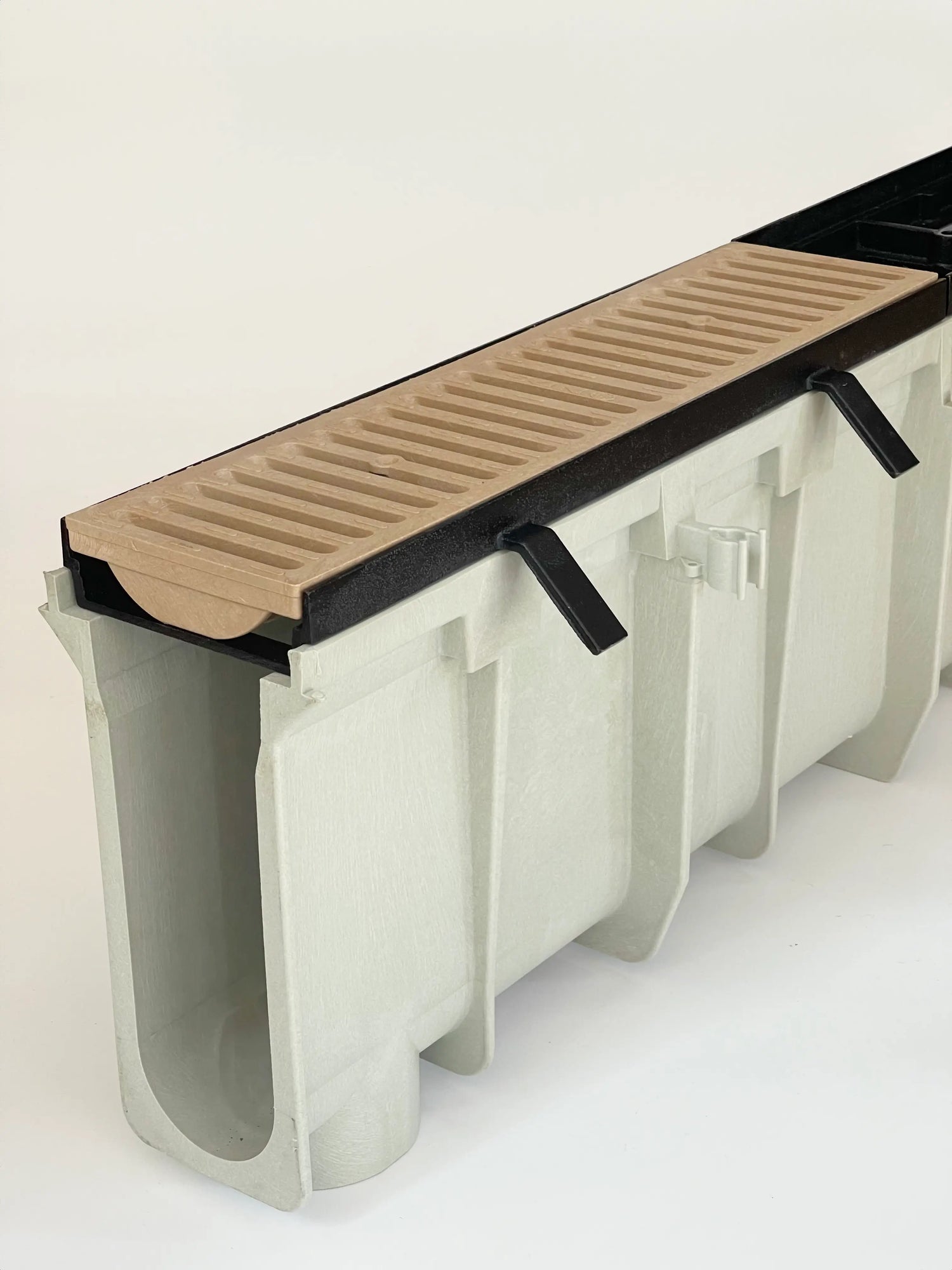

6” wide HDPE channel with stainless steel or PVC grates — perfect for pool decks and spas.
TrenchDrainCo FRC Architectural Series
Fiber-reinforced concrete channels with decorative stainless grates for luxury pools and resorts.
TrenchDrainCo Quicksilver Series
Full 316 stainless steel body and grate system — ideal for saltwater or high-end aquatic installations.
Engineering Notes
When designing trench drains for pools:
- Avoid ferrous metals near saltwater environments to prevent rust.
- Use 316 stainless in coastal or saline applications.
- Confirm grate openings meet heel-proof (≤ 6 mm) and ADA slip-resistance standards.
- Ensure the trench drain system connects to the site’s surface water drainage line with an appropriate debris trap or catch basin.
Create a safe, dry, and elegant pool deck.
Talk to our drainage specialists for a custom pool trench drain solution engineered for your design and environment.
