Air Force Base Trench Drains

Typically E600 to F900, meeting or exceeding DoD and FAA pavement standards.

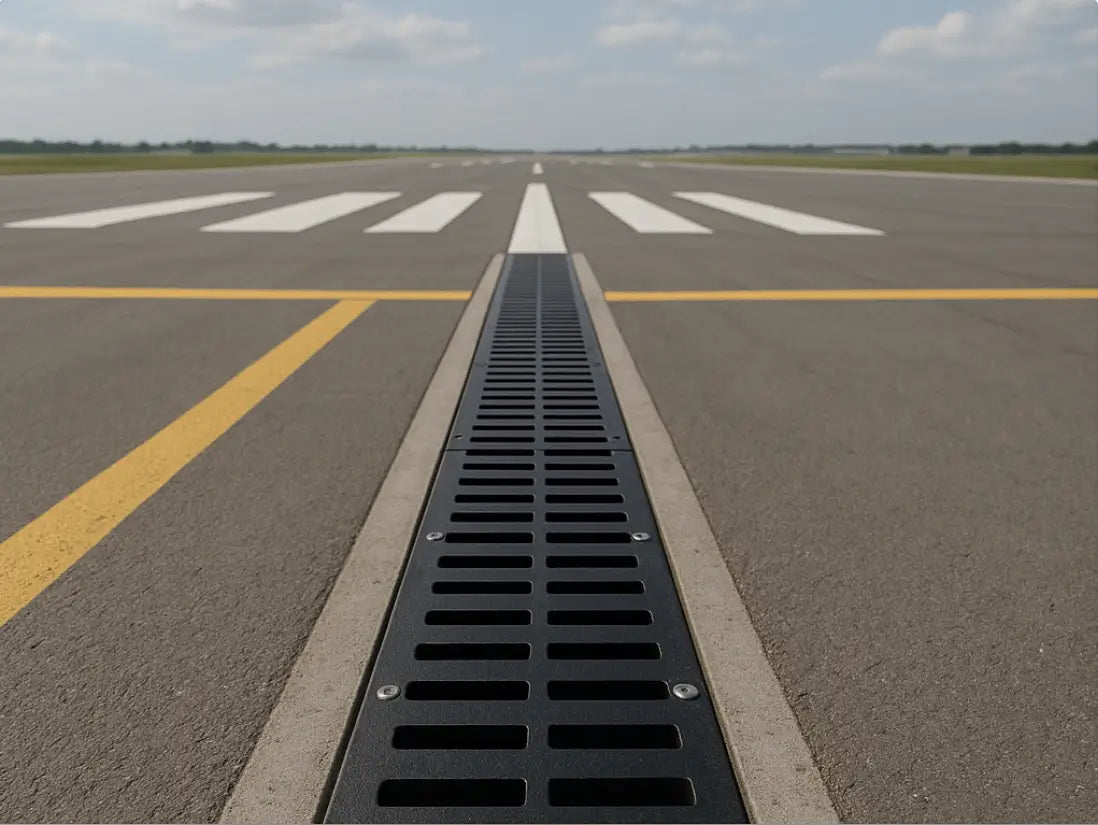

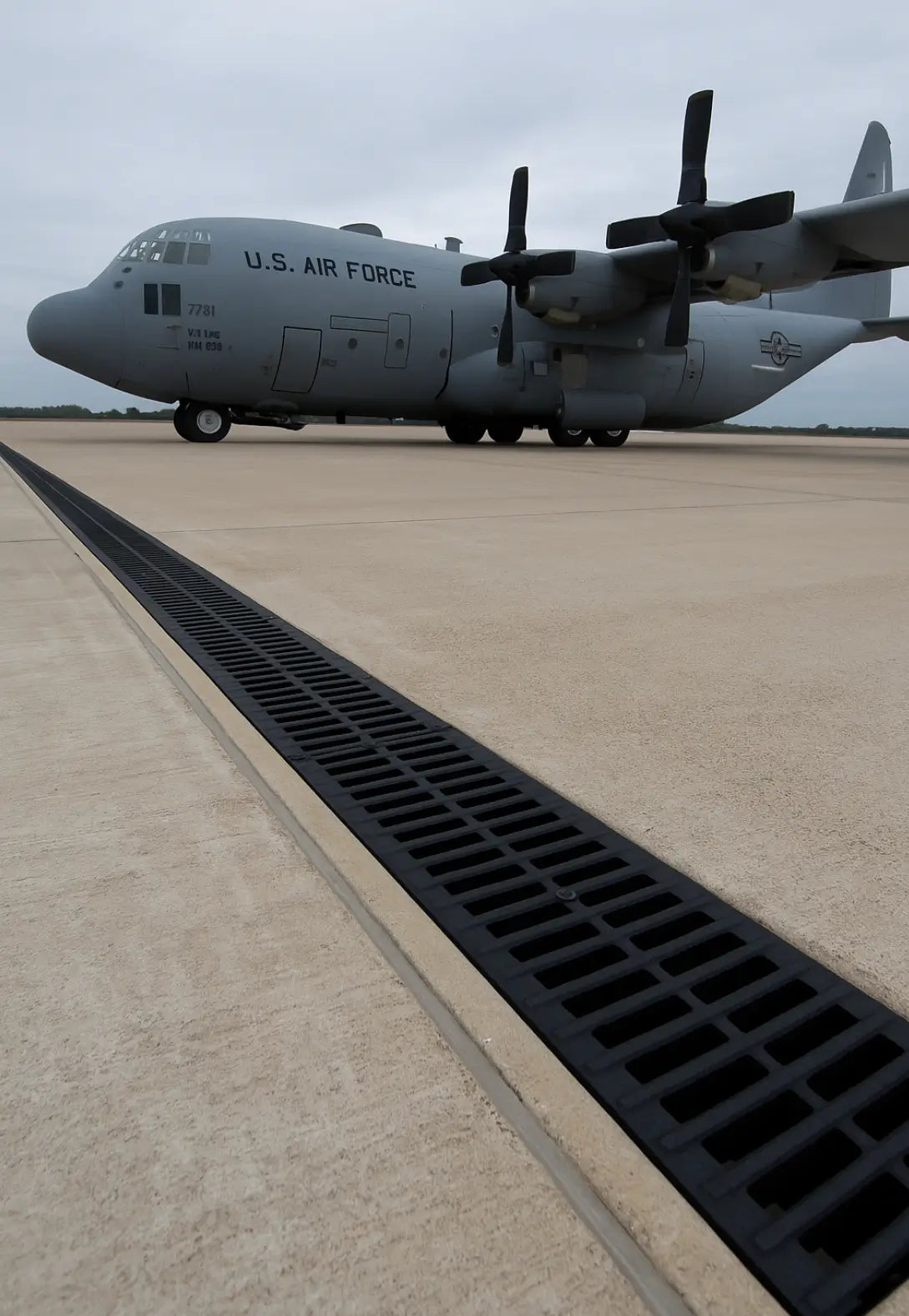

• Runways, aprons, and taxiways: F900 for aircraft wheel and landing-gear loads.

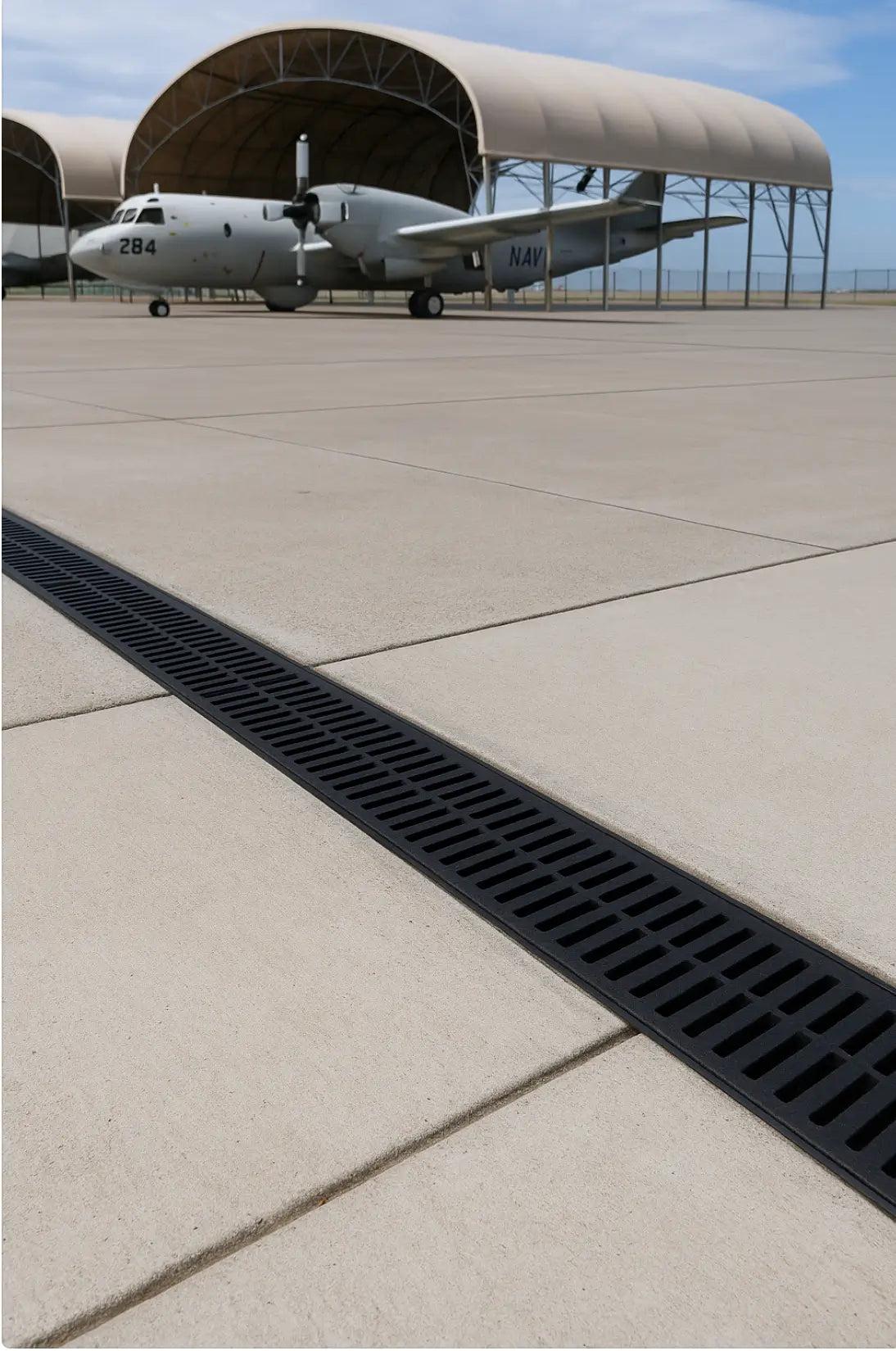

• Maintenance hangars and wash bays: D400–E600 for service vehicles and equipment.

• Fueling and refueling zones: F900 with sealed, chemical-resistant joints.

• Motor pools and logistics areas: E600–F900 for tracked and wheeled vehicle loads.

Drainage systems must resist impact, vibration, and jet-blast conditions while maintaining hydraulic efficiency.

Air Force facilities expose trench drains to jet fuel, lubricants, de-icing chemicals, and temperature extremes.

• Fiber-Reinforced Concrete (FRC) or Polymer Concrete channels for high-strength, low-deflection performance.

• 316L stainless steel channels and grates for fuel and chemical resistance in wash and maintenance zones.

• Ductile-iron grates rated F900 for aircraft wheel loads and ground equipment.

• Epoxy or galvanized edge rails for corrosion resistance in outdoor areas.

• Locking hardware and anti-vibration systems to prevent movement from jet thrust or heavy equipment.

• Continuous exposure to jet-fuel vapors, hydraulic fluids, and extreme thermal gradients.

• Surfaces must be graded (1–2%) to direct runoff toward trench systems for immediate evacuation.

• Drainage must integrate with oil/water separators and containment systems per EPA SPCC and UFC 3-270-01.

• Freeze–thaw, UV, and high-impact resistance are mandatory for open-air airfield zones.

• Drains must maintain watertight seals to prevent contamination of groundwater or sub-grade infrastructure.

• Strength: Handle aircraft, refuelers, and ground support equipment without deformation.

• Chemical resistance: Resist fuels, lubricants, and cleaning solutions.

• Compliance: Meet DoD, FAA, and ASTM C857 design requirements.

• Safety: Flush-mounted, slip-resistant grates for both air and ground personnel.

• Maintenance: Modular, removable grates and baskets for easy cleaning.

• Environmental control: Integration with spill containment and filtration systems for full compliance.

• Longevity: Multi-decade lifespan with minimal service requirements.
