From mash tuns to bottling lines, breweries and distilleries are complex environments where water, chemicals, and heat constantly interact. Among the most overlooked—but critical—design elements in these facilities is the floor drainage system.
Installing the wrong drain system can lead to bacterial growth, standing water, or even violations of FDA, USDA, or local health codes. That’s why stainless steel trench drains are the gold standard in brewery and distillery design.
This guide explores why stainless steel is the preferred trench drain material in food and beverage processing areas. We’ll dive into sanitary requirements, performance factors, common drain types, and installation considerations—with internal links to product pages, installation guides, and case studies for deeper exploration.
Why Floor Drainage Is Crucial in Breweries and Distilleries
Water is used everywhere in alcohol production: cleaning tanks, rinsing floors, cooling systems, and washing packaging equipment. Without a high-performance drainage system, wastewater can create:
- Standing water and mold growth
- Contaminated batches due to poor sanitation
- Employee slip-and-fall hazards
- Corrosion of surrounding floor infrastructure
- Code violations from health inspectors
Brewery environments are constantly wet, chemically active, and exposed to extreme temperatures—all of which put tremendous stress on a drainage system. Stainless steel trench drains handle these challenges with reliability and compliance.
Why Stainless Steel Is the Preferred Drain Material
1. Hygienic and Non-Porous
Stainless steel is non-porous, which prevents absorption of sugars, alcohols, and organic compounds that promote bacterial growth. Unlike concrete or cast iron, it doesn’t require sealants or coatings that wear off over time.
This is essential in CIP (Clean-in-Place) environments, where automated systems push sanitizing chemicals through tanks and across floors.
Learn more in our Steel Trench Drain Material Comparison Guide.
2. Corrosion Resistance
Breweries use caustics, acids, peracetic acid, and brine—all of which corrode traditional materials. 316 stainless steeloffers superior corrosion resistance, especially in environments with high chloride exposure (like distilleries using salt-based processes).
3. Withstands Thermal Shock
Hot water rinses at 180°F or more are common in washdowns. Stainless steel handles rapid temperature swings without cracking or spalling.
4. Smooth Surface for Easy Cleaning
Welded trench drains have no seams or bolt-downs for bacteria to hide. Grates can be lifted for visual inspection and full cleanout. Many systems are CIP-ready with built-in slopes and sediment baskets.
Brewery and Distillery Drainage Requirements
Sanitary Standards to Follow
- FDA Food Code (Chapter 6): Requires floors to be “designed for easy cleaning” and “drained to prevent water accumulation.”
- USDA Guidelines: Trench drains must be cleanable, corrosion-resistant, and maintainable.
- NSF/ANSI 3A Standards: Cover materials and weld finishes for food-safe environments.
Note: Stainless steel trench drains help meet these codes without requiring coatings, epoxy, or plastic liners.
Where Trench Drains Belong in Breweries
|
Facility Zone |
Reason for Drainage |
Recommended Grate |
|
Mash Tun & Lauter Tank |
Large volumes of hot, sticky wort |
Perforated or bar |
|

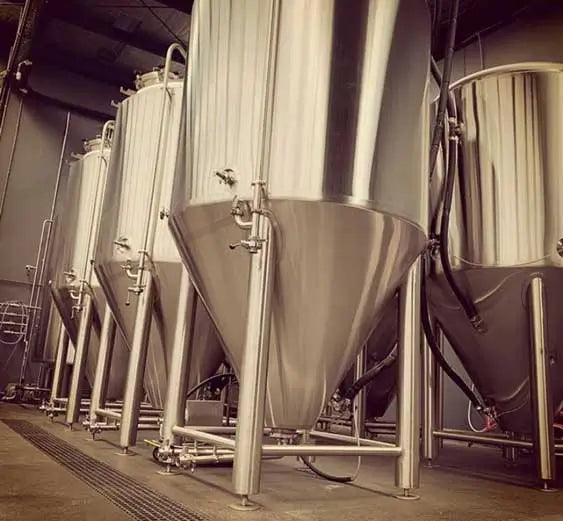

Fermentation & Conditioning Tanks |
Spills from CO2 blowoff, tank rinsing |
Slotted, heel-proof |
|
Packaging Area |
Bottle/can rinse water, broken glass |
ADA, anti-slip grates |
|
Cold Storage & Walk-Ins |
Condensation and ice melt |
Slotted SS with anti-freeze traps |
|
Tasting Rooms |
Aesthetics + mopping runoff |
Decorative stainless grates |
See our project examples to explore brewery-specific layouts.
Choosing the Right Type of Stainless Trench Drain
1. Slotted Trench Drain with Grate
- Most common configuration
- Available with heel-proof, bar, or perforated grates
- Allows easy removal for cleaning
- Suitable for most wet zones in the facility
Explore options on our Stainless Steel Slotted Drain Page
2. Slot Drain (No Grate)
- Narrow surface opening (1/2" to 1")
- Easier to clean with no grate to remove
- Often used in walkways or low-volume areas
- Must be specified correctly to meet flow needs
Visit our Slot Drain Configurator
3. Custom Fabricated Floor Sinks + P-Trap Trench Drains
- For areas requiring odor control or grease separation
- Often connected to pre-treatment tanks or floor sinks
- May include cleanouts, end caps, and side outlets
Need help? Use our Custom Drain Request Form for fast engineering support.
Grate Options for Breweries
|
Grate Type |
Pros |
Ideal Use |
|
Slotted SS Grate |
High flow, easy clean |
Tank zones, fermenters |
|
Perforated Grate |
Heel-proof, aesthetic |
Walkways, tasting rooms |
|
Bar Grate (Welded) |
Max flow rate |
Washdown zones, cold rooms |
|
Decorative SS |
Custom logo, high finish |
Front-of-house or retail area |
All Swiftdrain stainless grates are available in 304 or 316 and can be specified as ADA-compliant, bolt-down, or tool-removable.
See full specs in our Trench Drain Grate Types Guide.

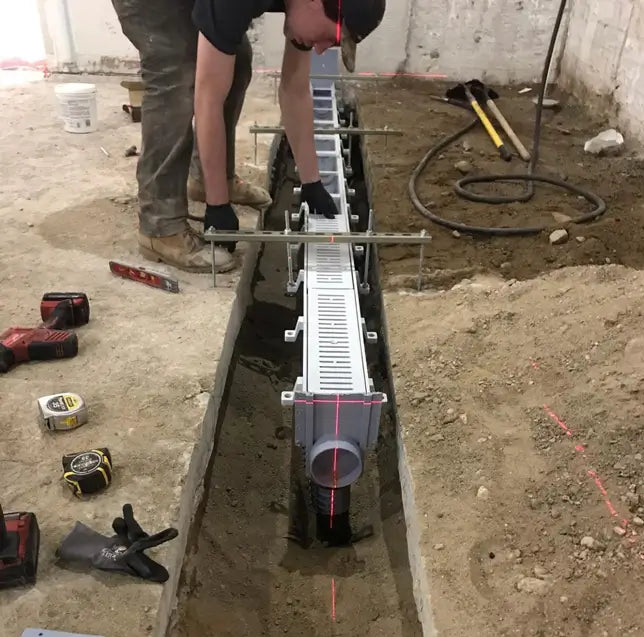

Installation Considerations
1. Trench Design and Slope
- Factory-welded pre-sloped drains ensure efficient flow
- Slope typically set at 0.5% or 1%
- Channels range from 4”–12” wide, with custom depths available
Related resource: Pre-sloped vs Neutral Trench Drains
2. Concrete Embedment
- Stainless trench drains should be anchored in a full concrete collar
- Use anchor flanges or mounting brackets to secure system
- Avoid PVC traps under hot zones—opt for stainless pipe tie-ins
3. Grate Locking Mechanism
- Optional in low-traffic brewery zones
- Recommended in packaging or warehouse areas to prevent uplift
- Choose bolt-down or quick-lock styles
Refer to our Trench Drain Installation Guide for technical diagrams and checklist.
Case Study: Craft Brewery Trench Drain Installation
Location: Midwest craft brewery
Challenge: Existing floor drains clogged frequently; multiple health violations noted for standing water.
Solution:
- Installed 140 linear feet of 6” pre-sloped 316 stainless steel trench drain
- Slotted heel-proof grates with CIP cleanout ports
- Custom T-connections around fermenters
Result:
- Achieved full USDA and state health code compliance
- Eliminated standing water
- Reduced cleaning time by 45%
Read the full case study here
Cost Factors: Stainless Steel vs Alternatives
|
Factor |
Stainless Steel |
Polymer Concrete |
HDPE |
|
Cost/ft |
$120–$300+ |
$90–$150 |
$45–$90 |
|
Sanitation |
Excellent |
Poor |
Fair |
|
Corrosion Resistance |
Best |
Moderate |
Moderate |
|
Installation |
Moderate |
Heavy/rigid |
Easy |
|
Lifetime |
25–50 years |
15–30 years |
10–20 years |
While stainless costs more upfront, its durability and code compliance reduce long-term risk and maintenance cost.
See our Trench Drain Cost Breakdown for full comparison.
Maintenance and Cleaning Best Practices
- Daily: Rinse grate and visible drain openings after cleaning
- Weekly: Remove grates and flush sediment traps
- Monthly: Sanitize with approved brewery-safe cleaners (peracetic acid, caustics, etc.)
- Annually: Inspect joints, slope, and outlet for blockages
Stainless systems are low-maintenance, but regular cleaning preserves sanitary conditions and compliance.
When to Use 304 vs 316 Stainless
|
Grade |
Best For |
Benefits |
|
304 SS |
General use, low-chloride zones |
Cost-effective, corrosion-resistant |
|
316 SS |
High-acid zones, salt/brine areas |
Superior corrosion resistance, higher polish |
Distilleries and breweries near coastlines or with high acid loads should always use 316 to ensure longevity.
Conclusion
Breweries and distilleries are among the most demanding environments for floor drainage—and stainless steel trench drains rise to meet the challenge. From their resistance to corrosion and bacteria to their compliance with FDA and USDA codes, stainless systems provide the performance and peace of mind alcohol producers need.
Whether you’re upgrading an existing space or building a new production facility, stainless trench drains ensure your floor is safe, compliant, and built to last.
Explore our full line of stainless steel trench drains or speak with our engineering team to get a custom layout, spec sheet, and quote.
