12 inch wide, fiber reinforced concrete trench drain system with heel proof grates
Product: 300 Series
Location: Huntsville, Alabama.
Length: Approximately 300 linear feet
Width: 12 inch wide

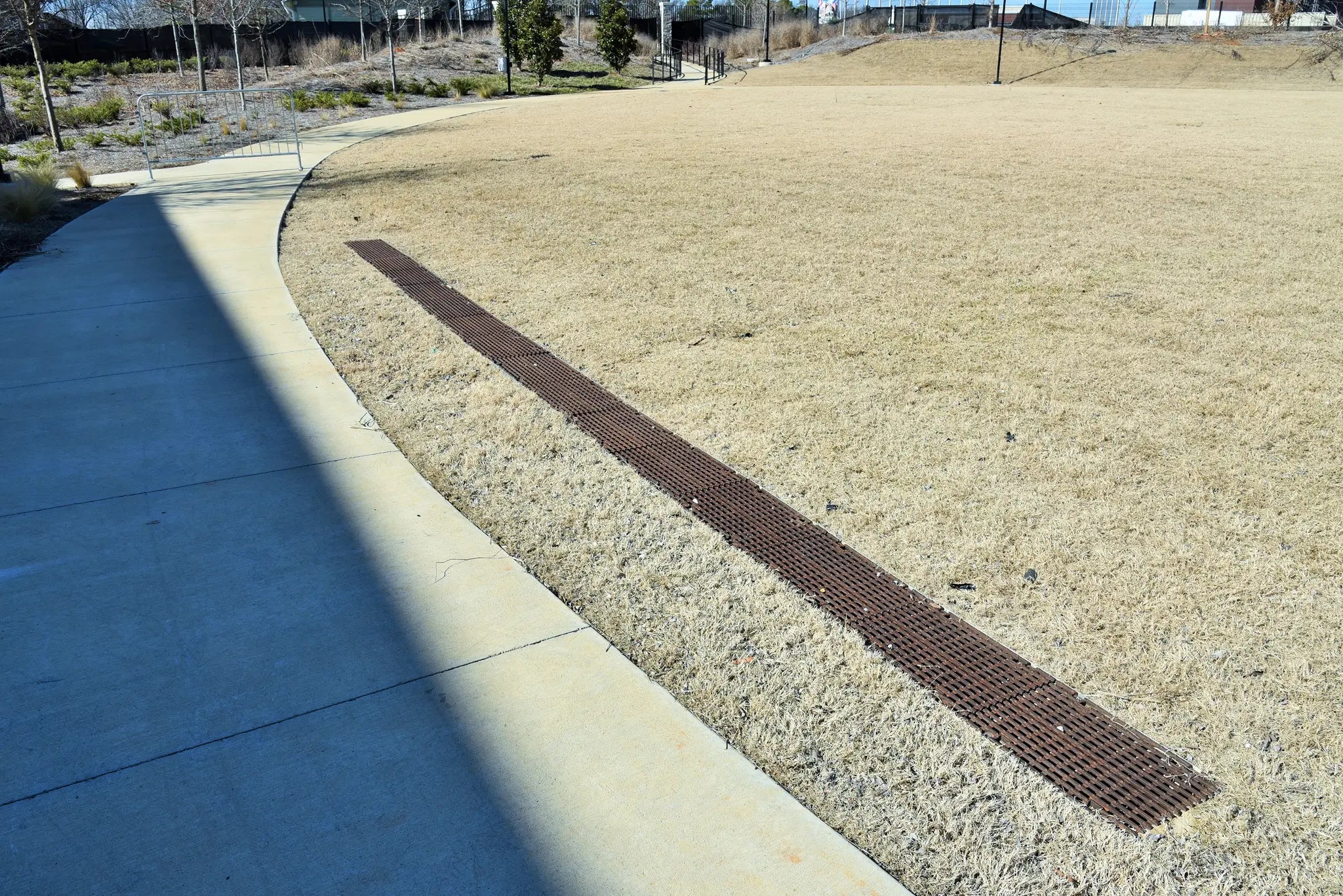

Swiftdrain was contracted to provide a drainage system for the parking lot and walking areas of the Orion amphitheater in Huntsville, Alabama. The challenge was to create a drainage solution that could withstand heavy foot traffic and vehicular loads, handle large volumes of water, and be easy to install and maintain. All delivered in under two weeks.
To meet these requirements, Swiftdrain provided roughly 300 linear feet of trench drain system for the project. Using a combination of 12-inch wide fiber reinforced concrete trench drain systems with heel-proof grates and 6-inch wide HDPE trench drains. The use of fiber reinforced concrete added strength and durability to the system, ensuring it could handle heavy loads without cracking or breaking. The heel-proof grates provided added safety for pedestrians, ensuring that high heels and other types of footwear would not get stuck in the grates.
SwiftDrain worked closely with the construction team to ensure that the drainage system was installed correctly and efficiently. They provided training and support to the maintenance team to help them maintain the system properly and ensure that it continues to function effectively for many years to come.
The drainage system provided by SwiftDrain has proven to be highly effective in draining water away from the parking lot and walking areas of the Orion amphitheater. It is durable, reliable, and cost-effective, and has helped to prevent standing water and potential damage to the concrete surface. The combination of fiber reinforced concrete trench drains, HDPE trench drains, and heel-proof grates has created a drainage solution that meets the requirements of the project and ensures the safety of pedestrians.
12 inches wide
Fiber reinforced concrete
Approximately 300 linear feet
Heel Proof
Swiftdrain’s Precision Drainage Solution - Orion Amphitheater Phase 2
Swiftdrain was selected to design and deliver a comprehensive trench drain system for the Orion Amphitheater, ensuring superior water management for both the exterior site and interior stage area. This large-scale entertainment venue required a durable, high-capacity drainage solution to handle surface runoff while maintaining safety and aesthetic appeal.
Phase 1: Heavy-Duty Exterior Drainage System

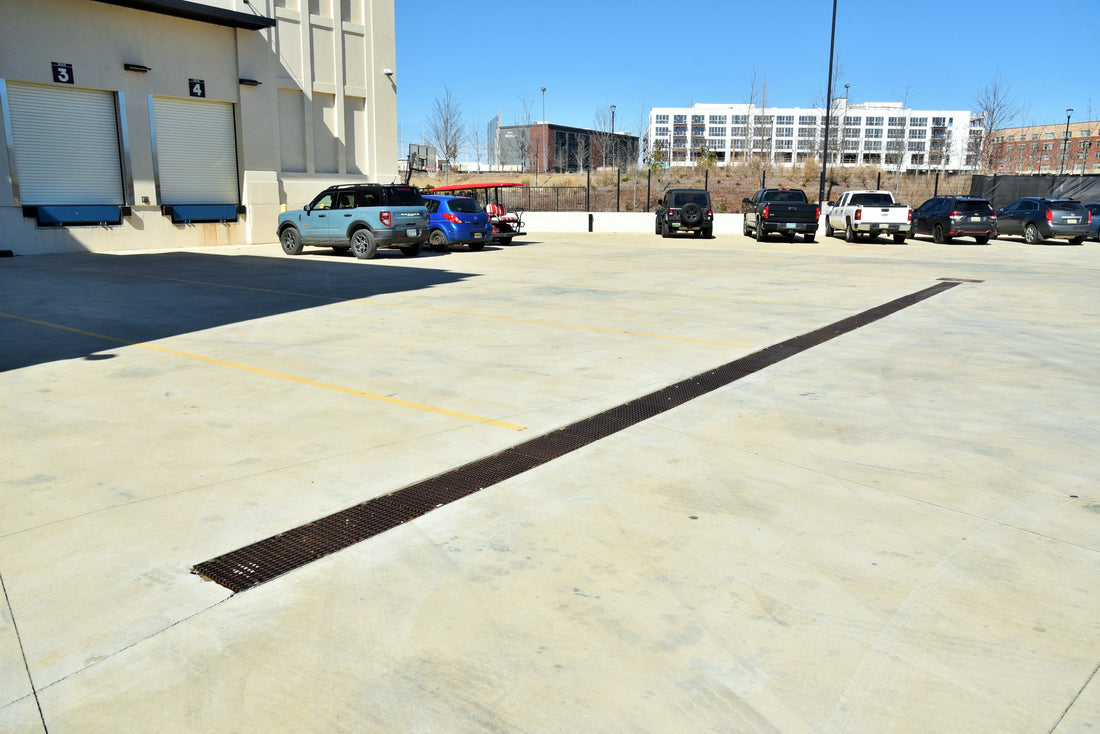

The first phase of the project focused on drainage for the surrounding parking lot and site structure. Working alongside Motivated Electric, Swiftdrain supplied a heavy-duty 300 Series polymer concrete trench drain system, engineered for:
High load-bearing capacity, capable of withstanding heavy vehicle and foot traffic
Efficient stormwater management, preventing pooling and surface damage
Long-lasting durability, with polymer concrete channels resistant to weathering and environmental stress
Following the successful installation of the exterior system, Swiftdrain’s expertise led to an additional contract to supply a specialized trench drain solution for the interior stage area.
Phase 2: Interior Stage Drainage Solution
To enhance safety and functionality within the performance space, Swiftdrain designed and furnished a custom T-shaped trench drain system featuring a central catch basin for optimal water collection. The system was tailored for seamless integration into the stage design, incorporating:
ADA-compliant, decorative heel-proof grates, ensuring accessibility and protection for performers and crew
Strategic water flow management, preventing accumulation in critical areas
Aesthetic compatibility, blending drainage components with the architectural style of the venue
Results & Impact
By implementing a multi-phase drainage solution, Swiftdrain helped Orion Amphitheater achieve long-term structural integrity, enhanced safety, and efficient water management across both outdoor and indoor spaces. This project showcases Swiftdrain’s ability to engineer drainage solutions that meet both functional and design requirements for large-scale entertainment venues.
