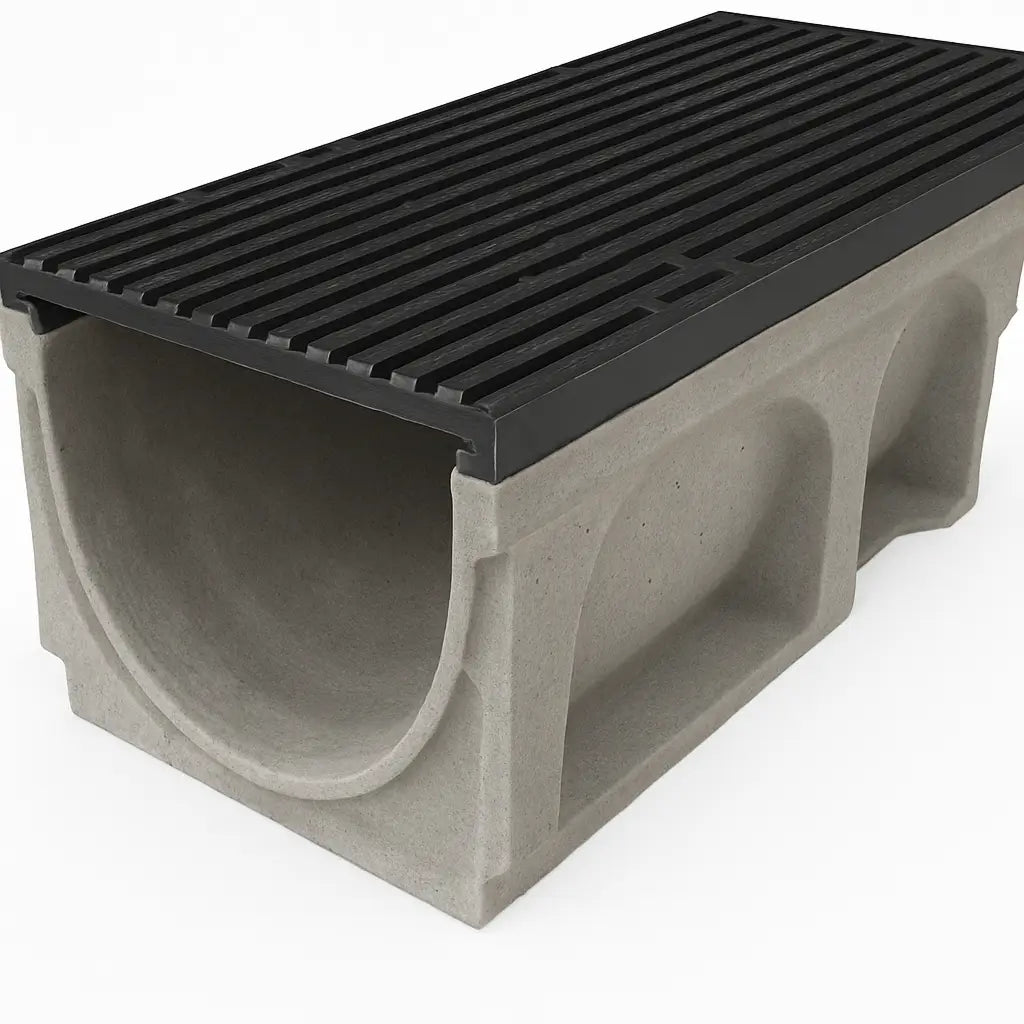

• SwiftDrain 200 Ductile Iron (Thin Slotted)

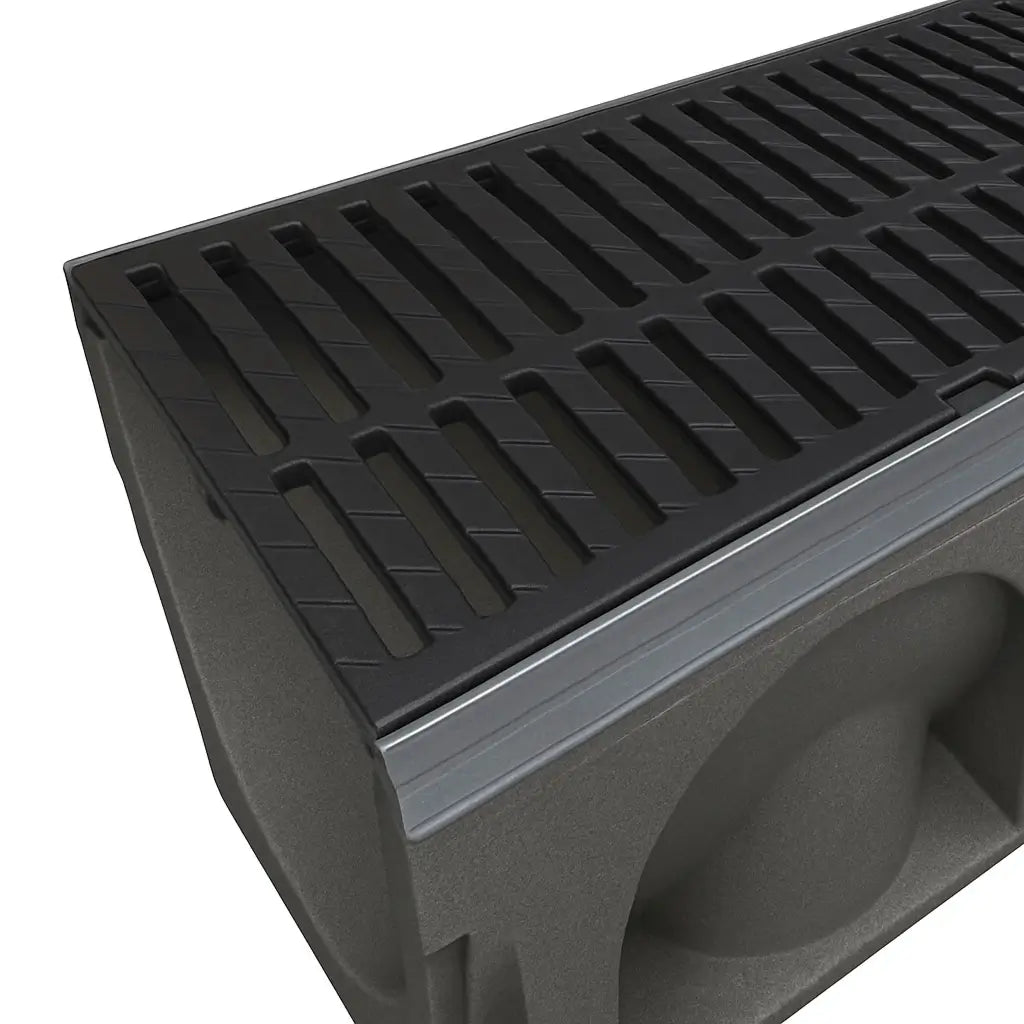

  • SwiftDrain 200 Ductile Iron (Slotted)

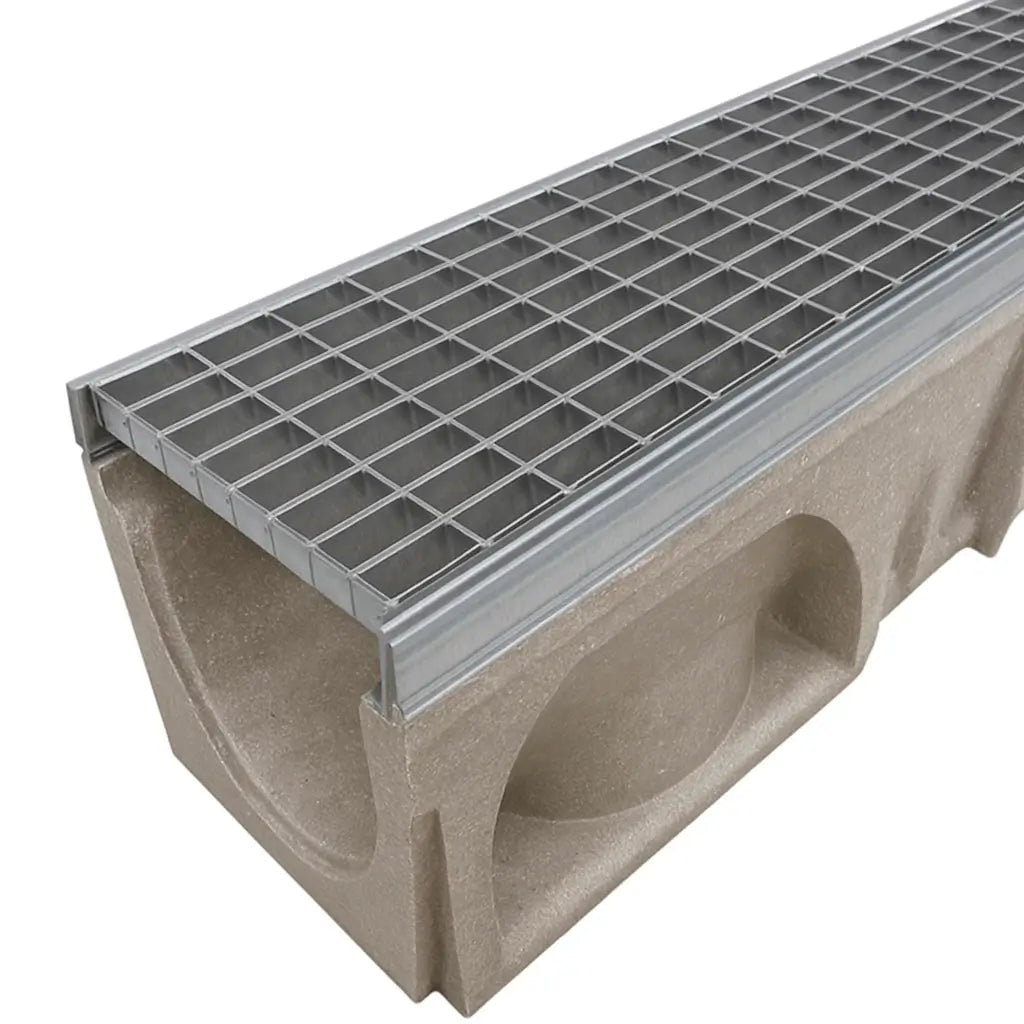

  • SwiftDrain 200 Stainless Steel Grate

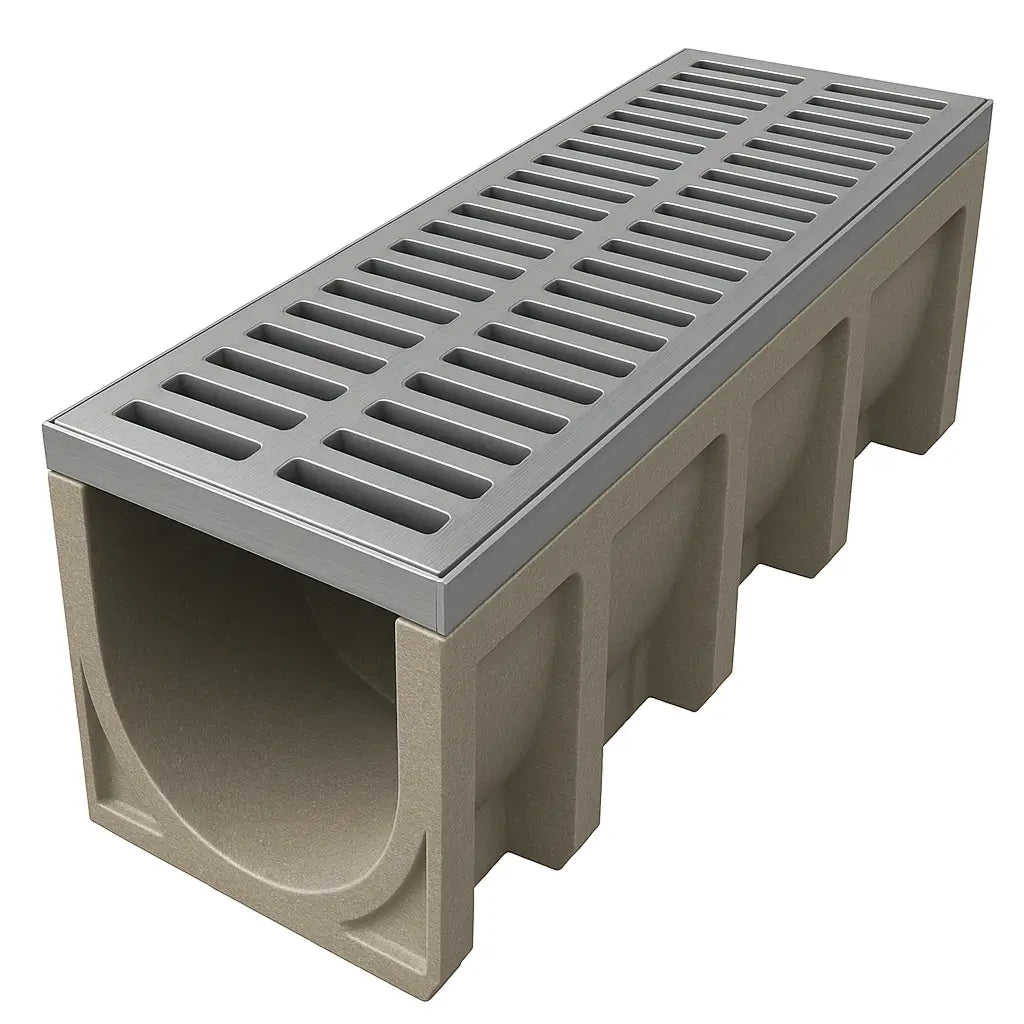

  • SwiftDrain 200 Galvanized Steel Grate

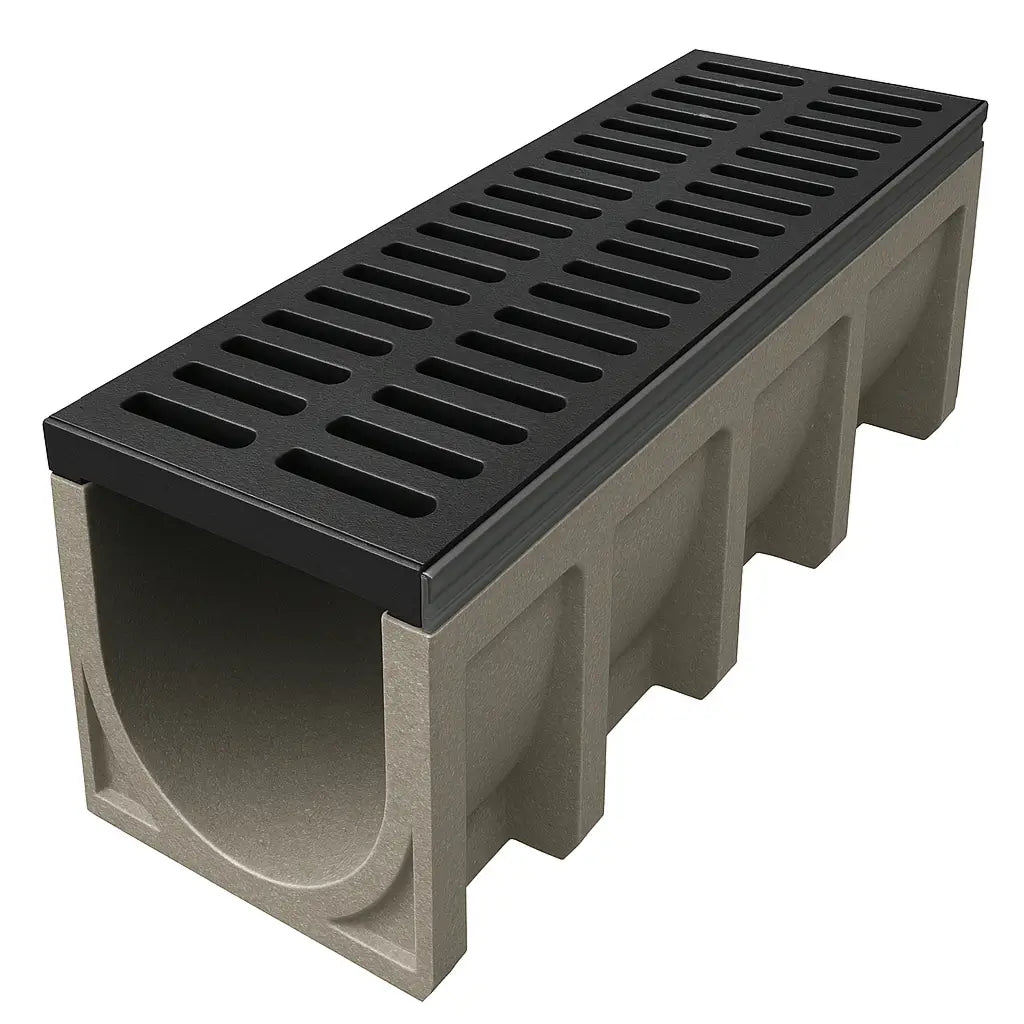

  • SwiftDrain 200 HDPE Grate
1 1

Grate (Model 200)

Grate (Model 200)

Tough, slip-resistant grate designed to deliver enduring drainage efficiency.

Select Grate Material:

Ductile Iron (Thin Slotted)
Ductile Iron (Thin Slotted)
Ductile iron (Slotted)
Ductile iron (Slotted)
Stainless Steel
Stainless Steel
Galvanized Steel
Galvanized Steel
HDPE
HDPE
Material
Total: 89.00 $
View full details

Performance Specifications

Swiftdrain 200 HD #205 ductile iron grates are 8.8” wide, 20” long and 3/4” high. Grates are made of a heavy duty ductile iron material with a class E load rating suitable for up to 134,000 pounds. Available with ADA, heel proof, thin slot, longitudinal slot, solid and decorative slot styles. Grates are forklift rated.

Width: 8.8”

Length: 20”

Height: 3/4”

Material: Ductile Iron, Galvanized Steel, Stainless Steel, Polymer

Available in Slotted, ADA and Heel Proof

Download Specification Guide
