Grate (Model 600)

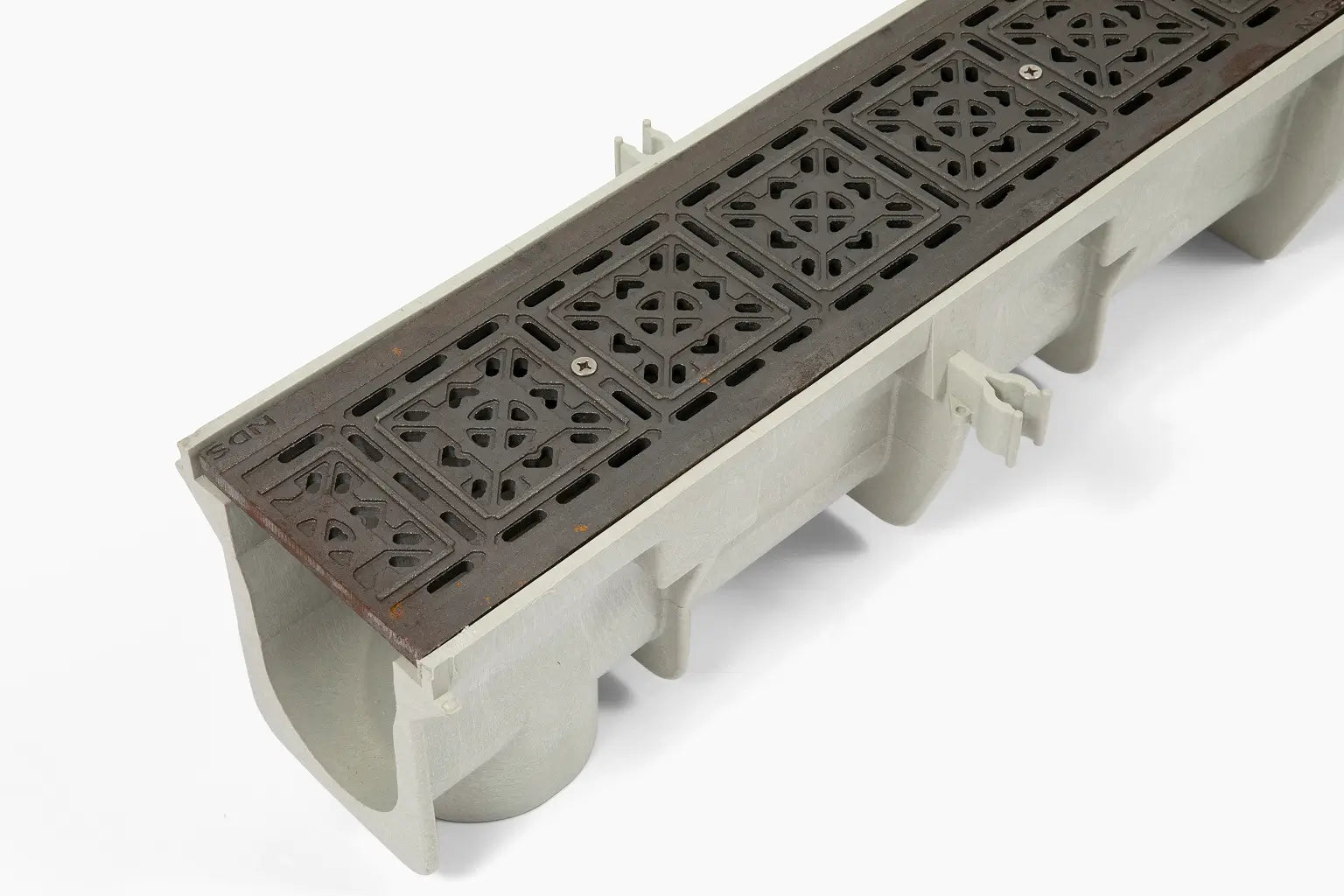

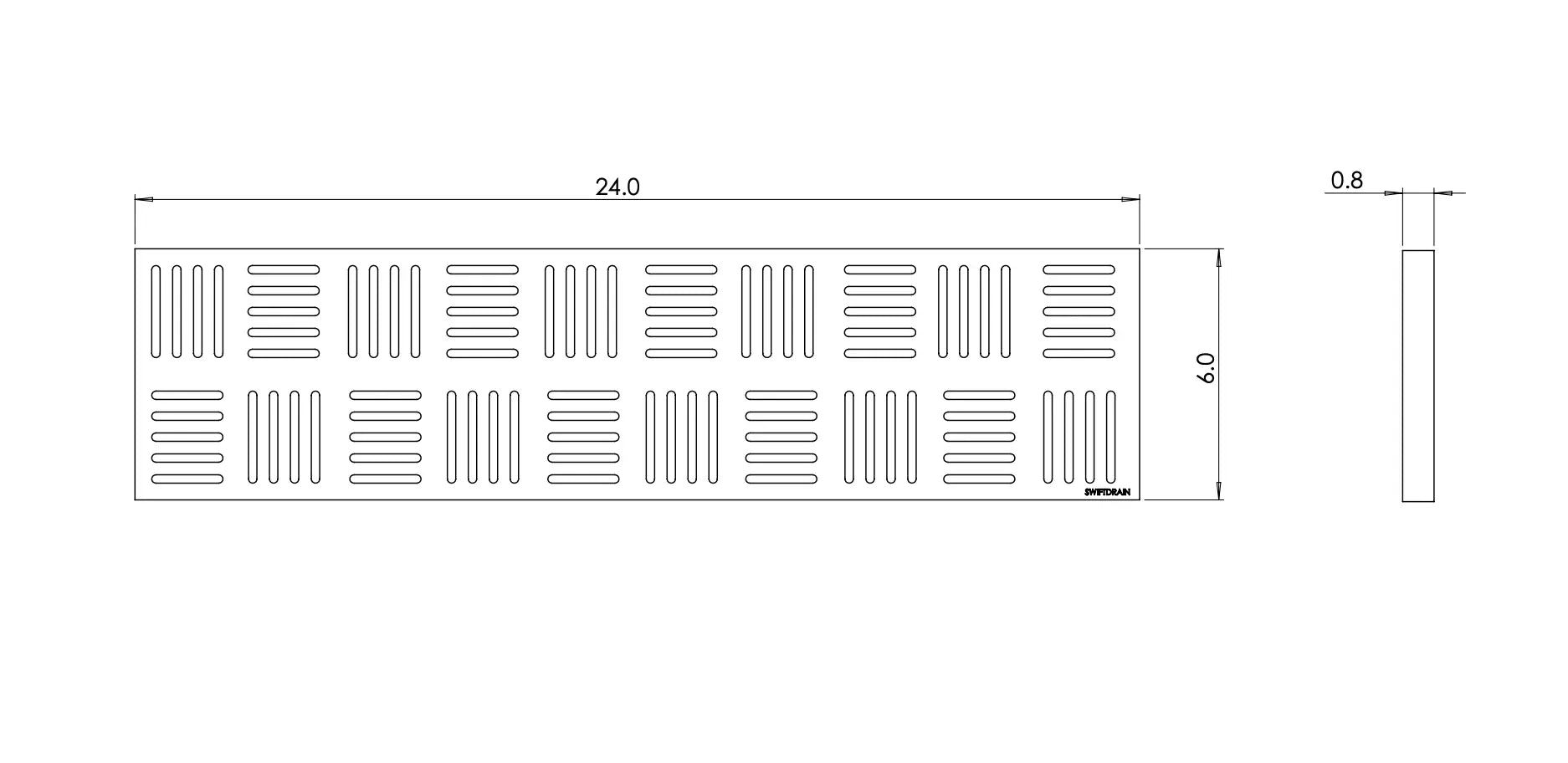

Item#: Deco L
Material: Ductile Iron
Load Class: C
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: Yes
Fork Lift Rated: No

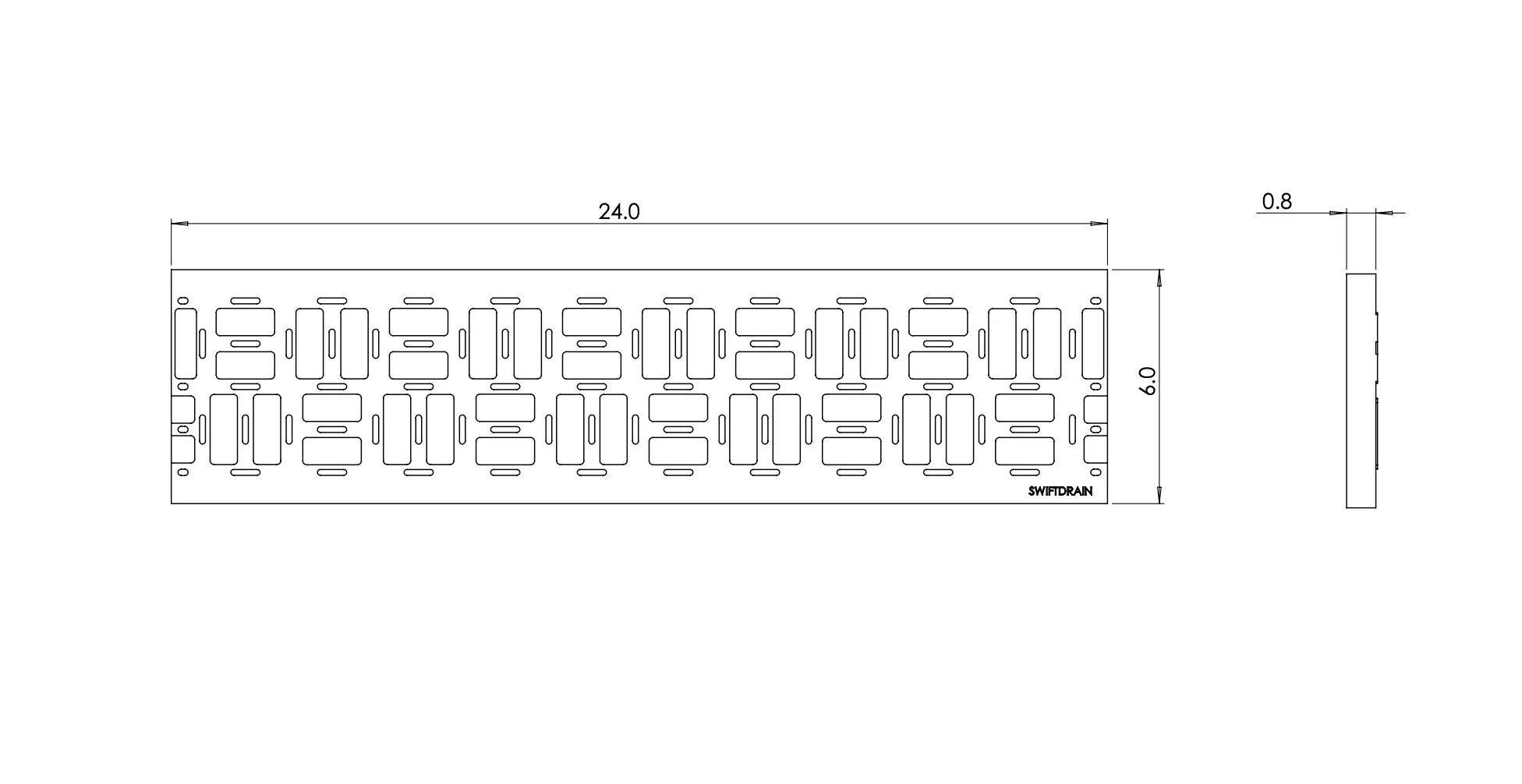

Item#: Deco K
Material: Ductile Iron
Load Class: C
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: Yes
Fork Lift Rated: No

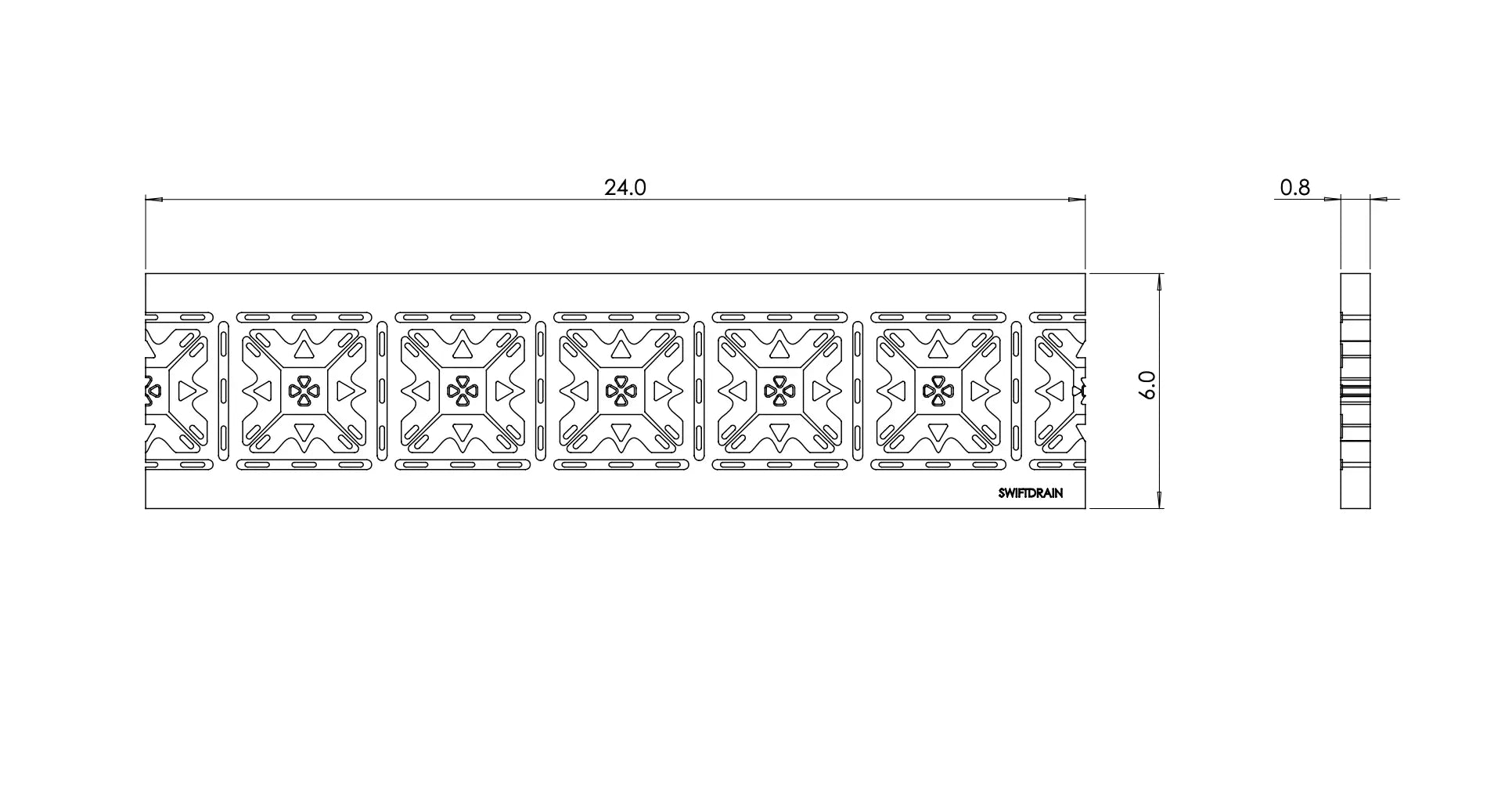

Item#: Deco J
Material: Ductile Iron
Load Class: C
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: Yes
Fork Lift Rated: No

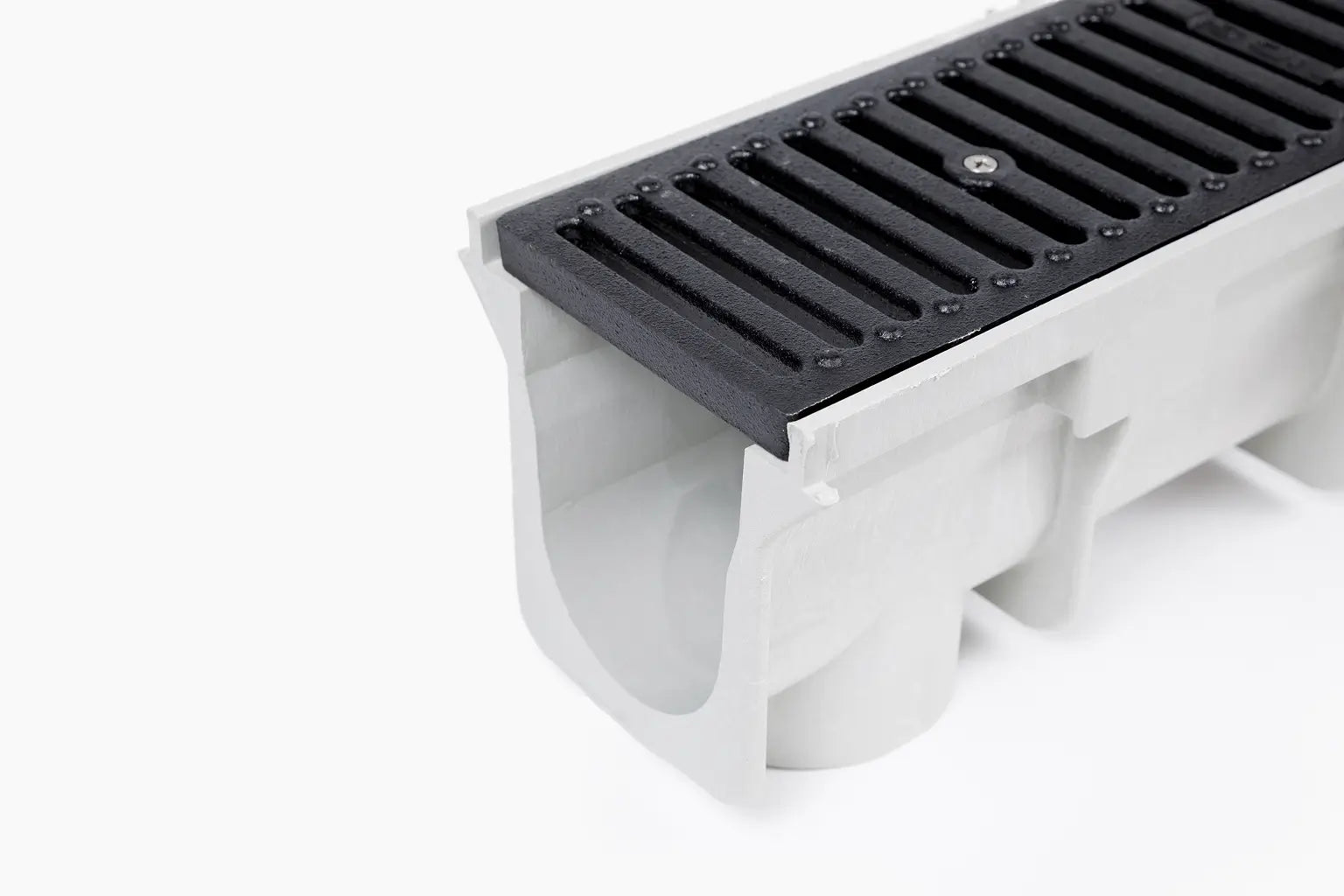

Item#: #606
Material: Ductile Iron
Load Class: C
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof:
Fork Lift Rated:

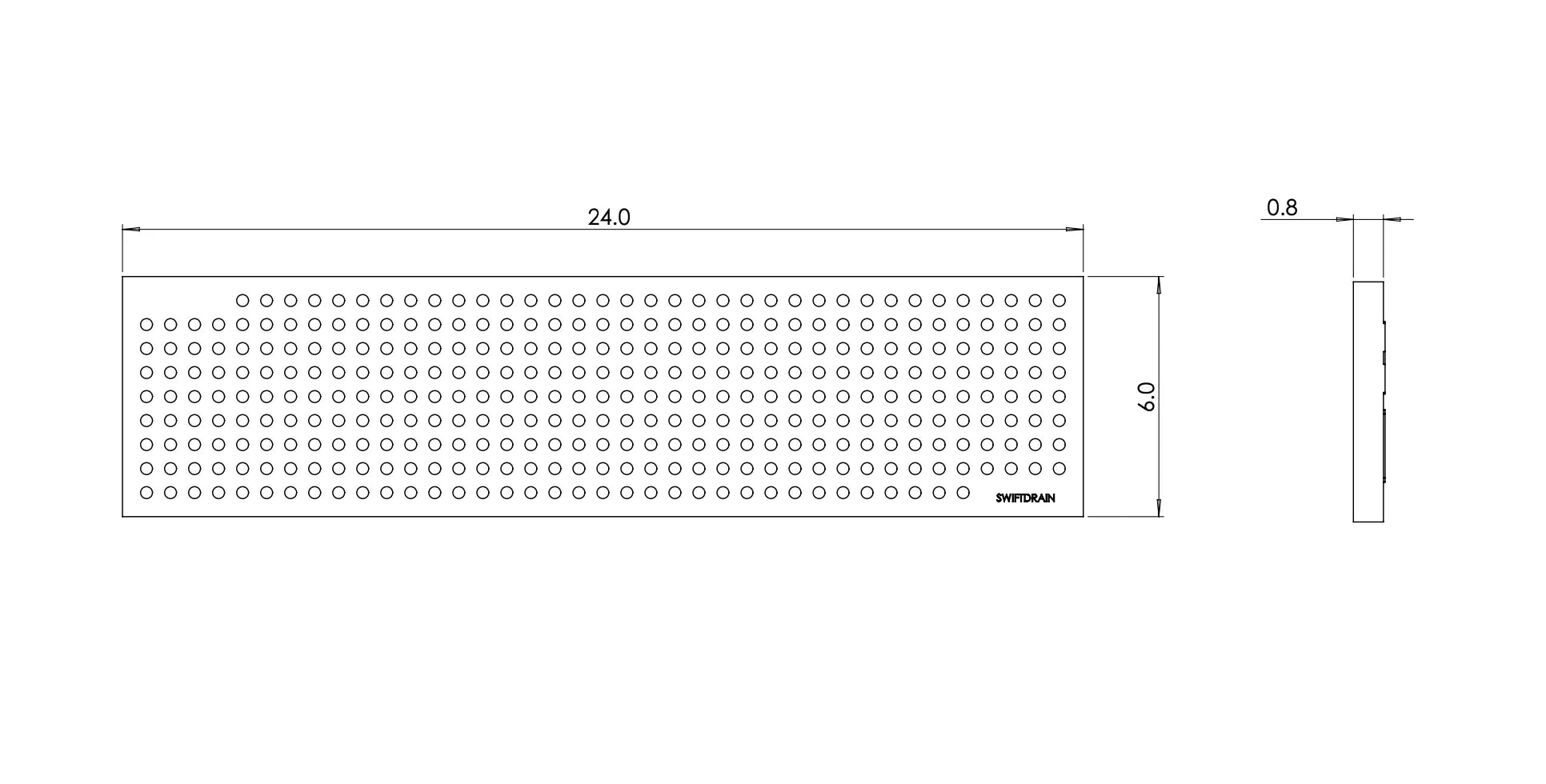

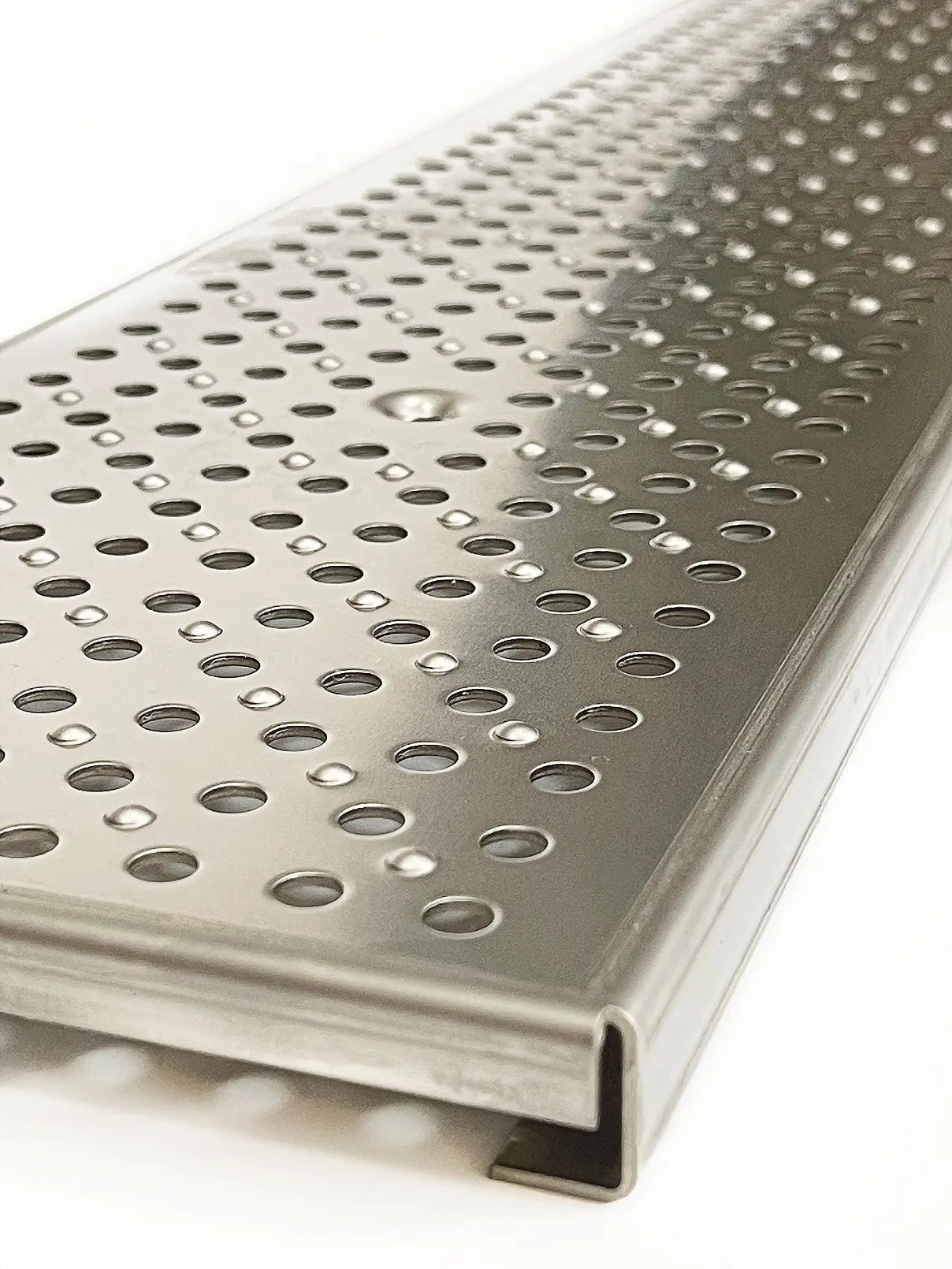

Material: Stainless Steel
Width: 6"
Length: 24"
Weight: 3.16 lbs each
Fits: Use with Channel Drains
Grate Opening: 7.63 in 2 per foot
Will accommodate 23.34 gallons
per minute per foot with 1/2” of
Additional Specifications:
ADA, Heel Proof, Slip Proof, Stainless Steel, Anti Rust, Perforated 606-07 Grates

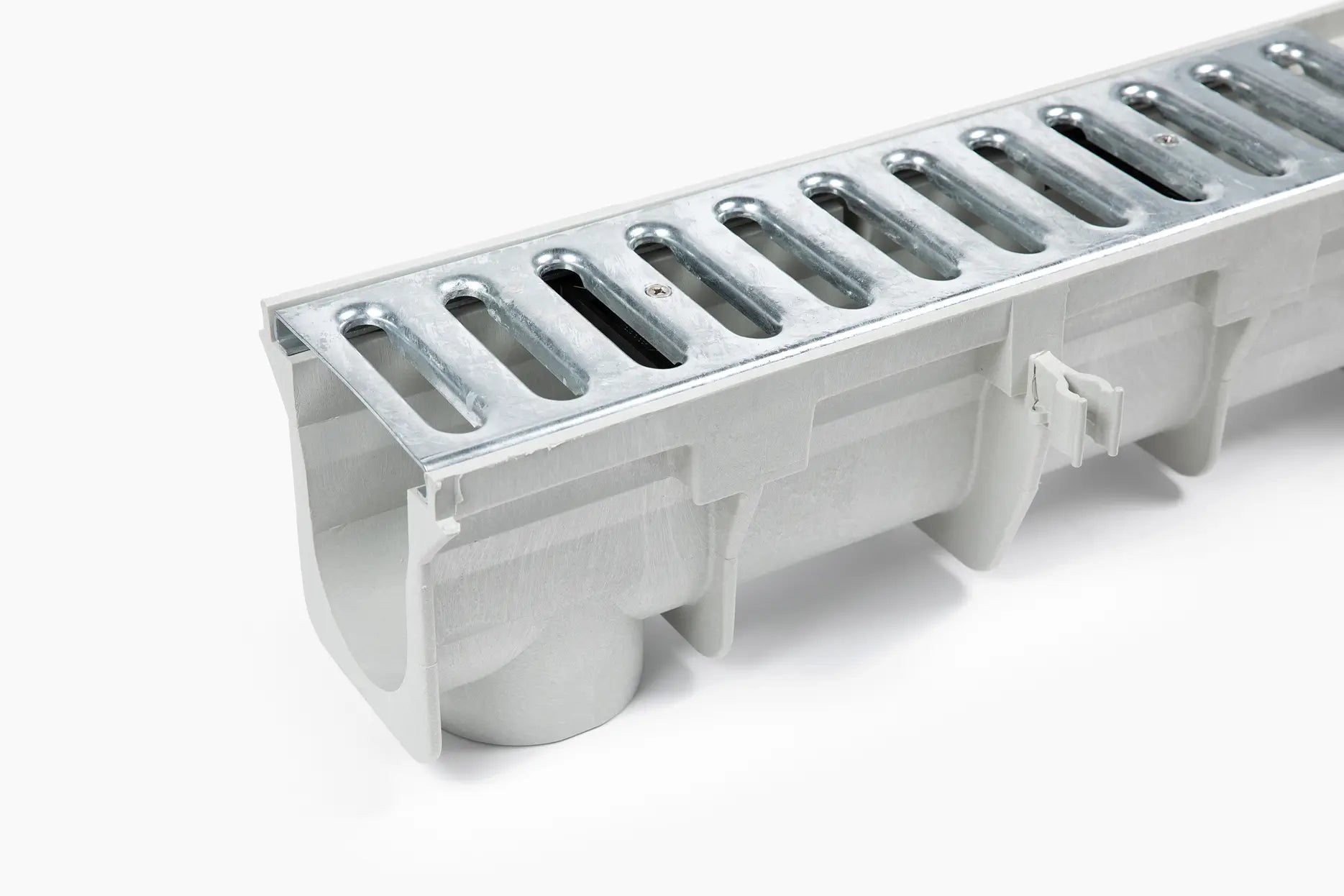

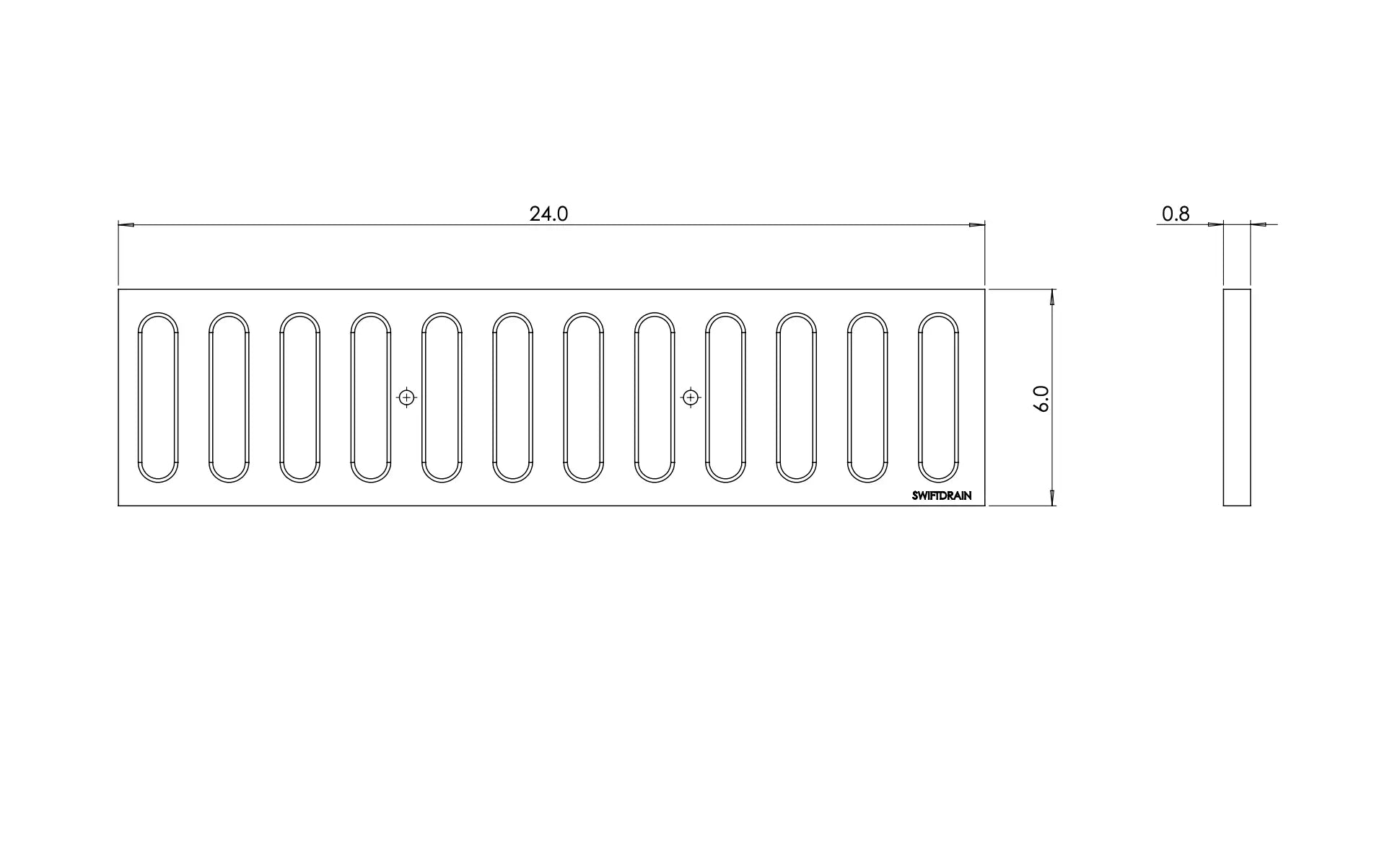

Item#: #608
Material: Galvanized Steel
Load Class: B
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: No
Fork Lift Rated: No

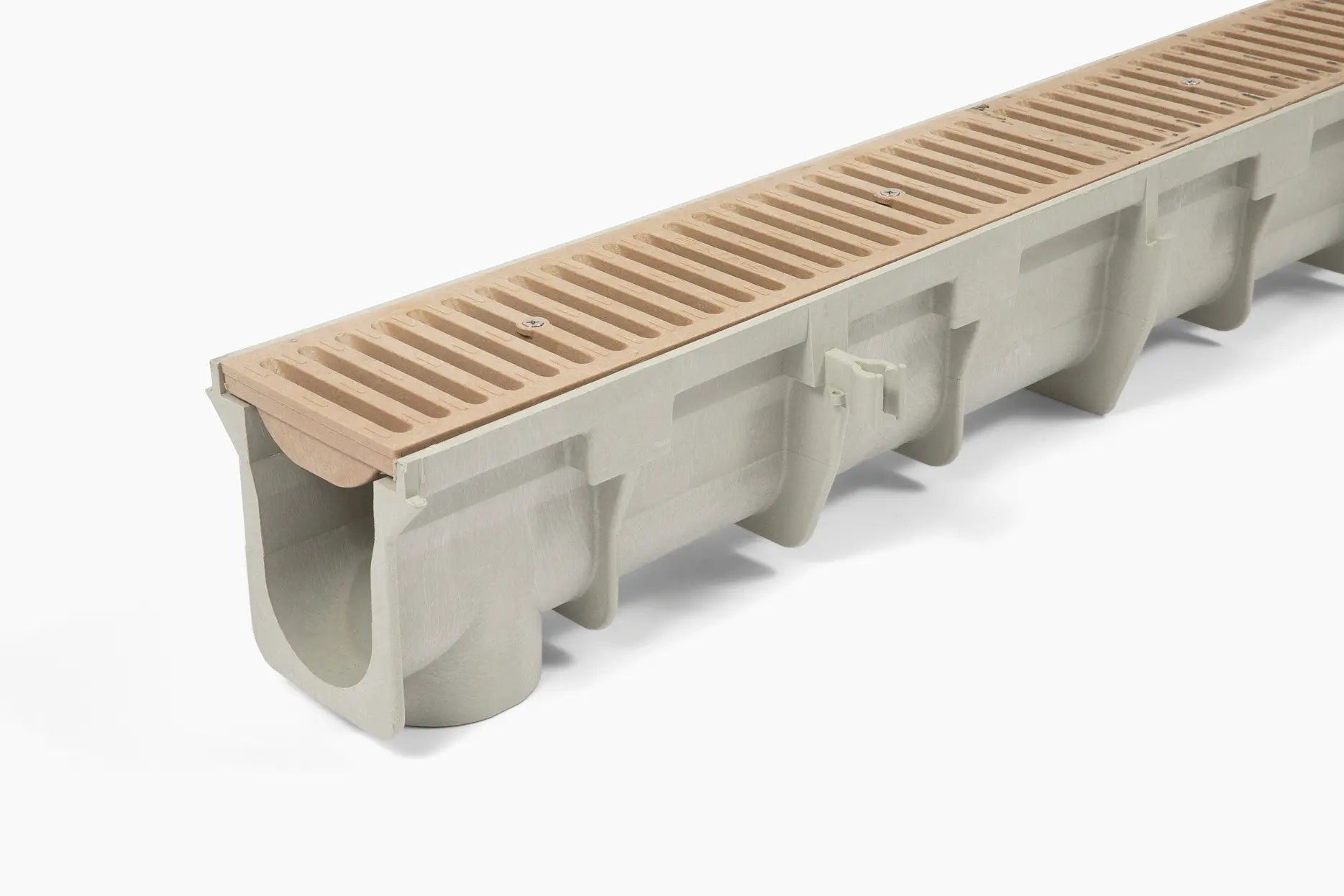

Item#: #610-Tan
Material: Polymer Tan
Load Class: B
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: No
Fork Lift Rated: No

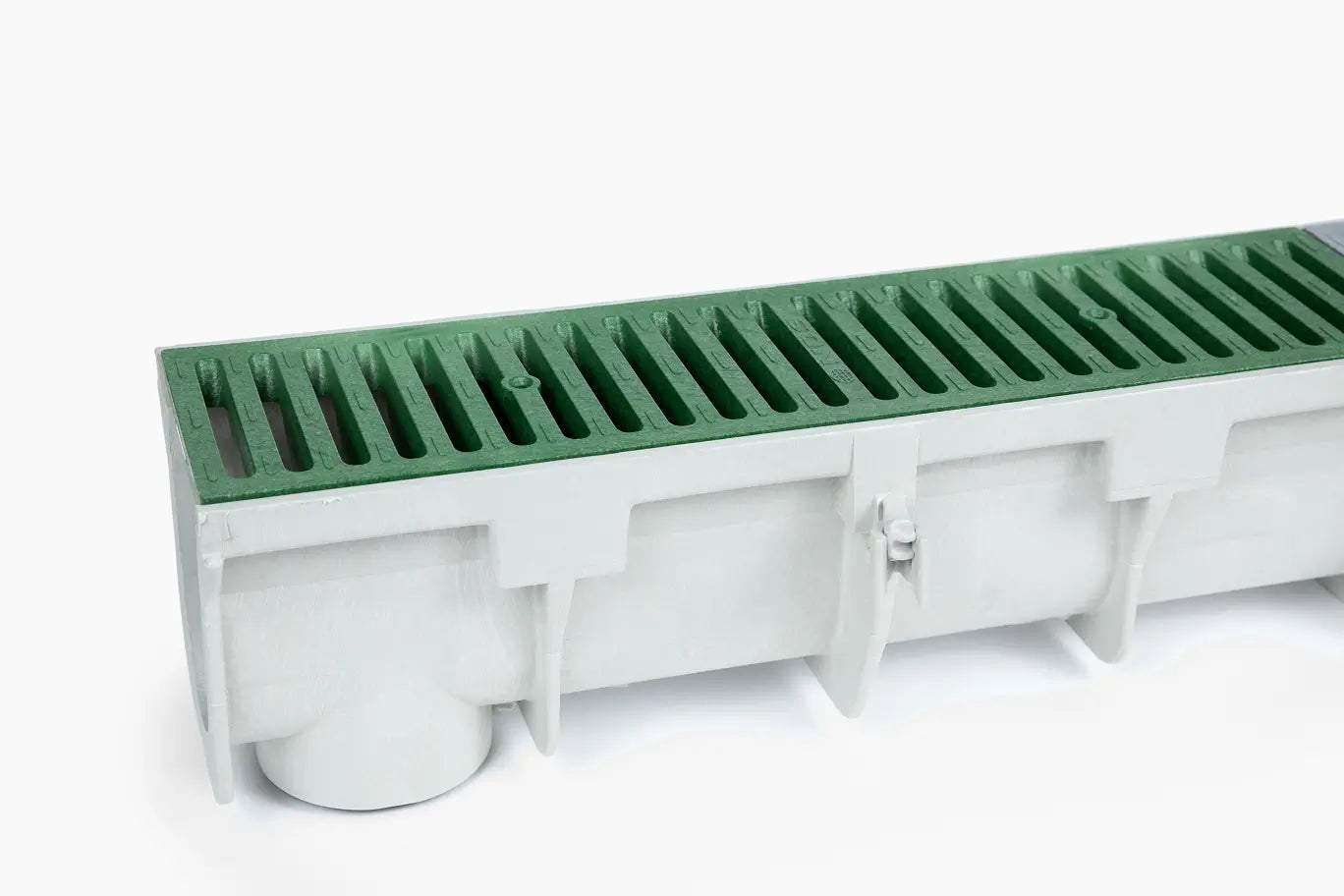

Item#: #610-Green
Material: Polymer Green
Load Class: B
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: No
Fork Lift Rated: No

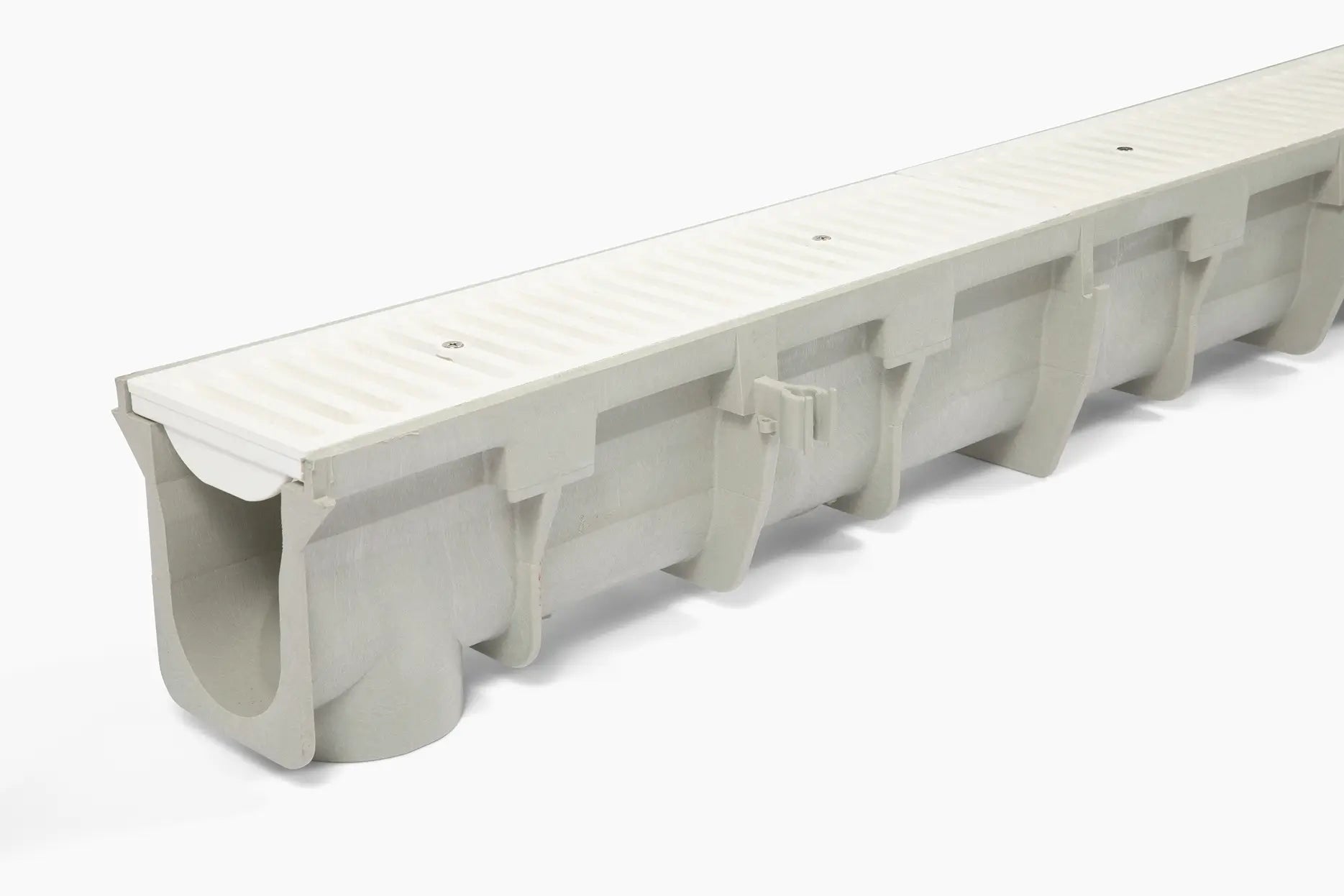

Item#: #610-White
Material: Polymer White
Load Class: B
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: No
Fork Lift Rated: No

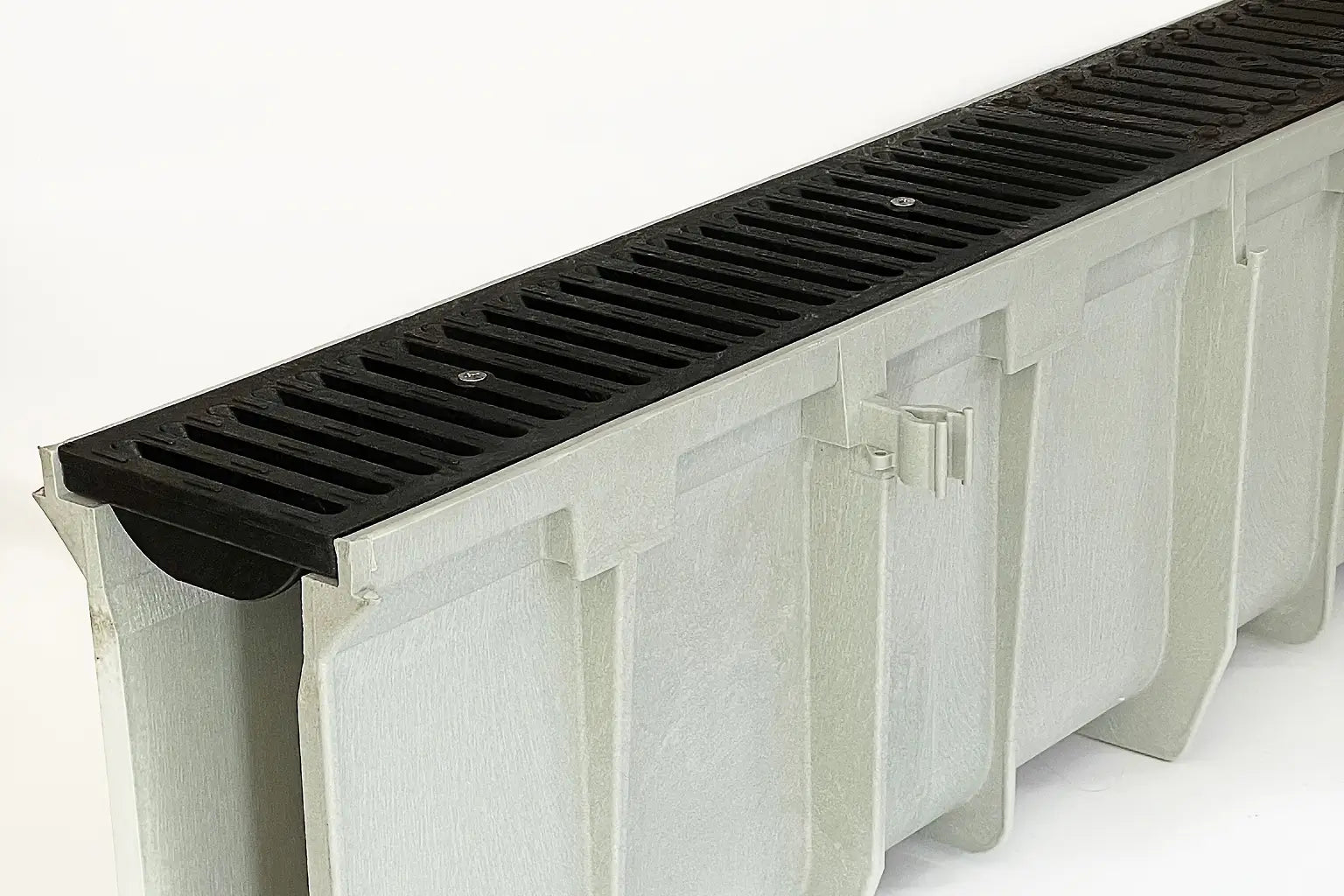

Item#: #610-Black
Material: Polymer Black
Load Class: B
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: No
Fork Lift Rated: No

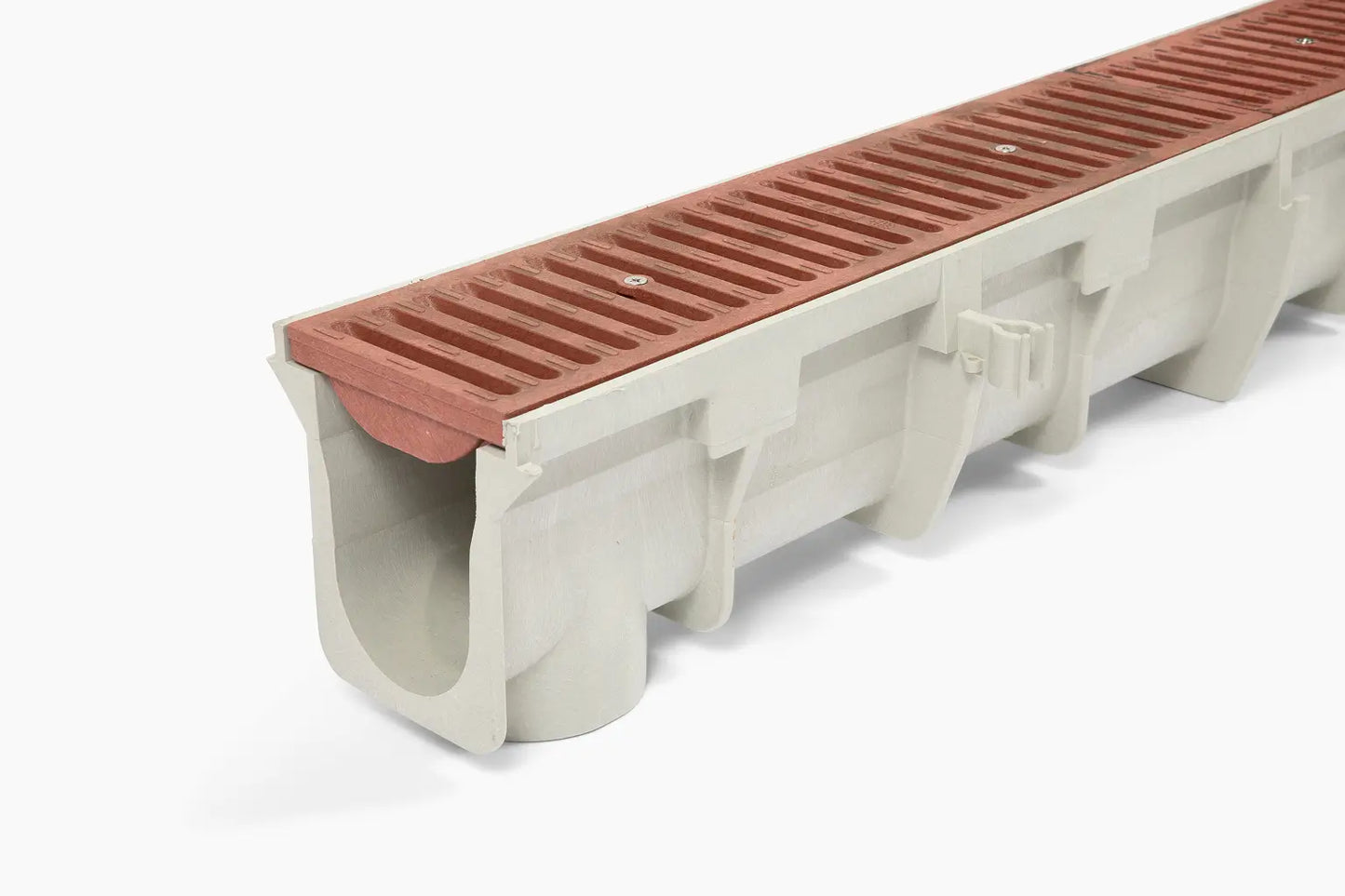

Item#: #610-Red
Material: Polymer Red
Load Class: B
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: No
Fork Lift Rated: No

Item#: #610-Grey
Material: Polymer Grey
Load Class: B
Width: 6"
Length: 24"
H-20 Rated: Yes
ADA: Yes
Heel Proof: No
Fork Lift Rated: No
