When it comes to managing surface water in industrial, commercial, and even residential environments, trench drains are a reliable and efficient solution. But not all trench drain systems are created equal. One of the most important design choices is whether to use pre-sloped trench drains or neutral (non-sloped) systems.
Pre-sloped trench drains offer significant performance, installation, and long-term maintenance advantages. In this article, we’ll explore what a pre-sloped trench drain is, when it’s the better option, and why engineers, contractors, and facility managers are increasingly specifying them for high-demand drainage projects.
What Is a Pre-Sloped Trench Drain?
A pre-sloped trench drain is a surface drainage system where each channel section is manufactured with a built-in slope—usually between 0.5% and 1%. These sloped sections are installed in series to create a continuous, gravity-driven flow that directs surface water toward an outlet or catch basin.
In contrast, neutral trench drains have no built-in slope and rely entirely on the pitch of the surrounding slab or site grading to move water.
Learn more in our pre-sloped vs. neutral trench drain guide.
Why Pre-Sloped Drains Are Preferred in Many Applications
Pre-sloped trench drains solve many common issues related to poor drainage, inadequate water flow, and high-maintenance systems.
1. Improved Flow Rate and Water Velocity
With a built-in slope, water moves more efficiently through the channel, reducing the chance of:
- Standing water in the drain
- Sediment buildup and clogging
- Odor accumulation from stagnant flow
Faster flow also means less chance of freeze-ups in colder climates.
2. Predictable Hydraulic Performance
Pre-sloped trench drains are engineered to precise tolerances. Flow rates can be modeled using Manning’s equation, providing predictable system performance under all conditions.
This is critical in:
- Commercial drive lanes
- Loading docks
- Manufacturing facilities
- Stormwater-heavy areas
Use our trench drain sizing calculator to model slope, velocity, and outlet capacity for your project.
3. Simplified Installation Without On-Site Grading
Neutral trench drains require careful slab grading to ensure water flows toward the outlet. This process is time-consuming and prone to human error.
Pre-sloped trench drains eliminate the need to slope the concrete toward the channel. The slope is built into the trench itself, allowing:
- Faster install times
- Fewer field adjustments
- Reliable drainage even on flat slabs
This is especially valuable on interior floors, where changing the slope of the slab may be impossible.
See our installation guide for step-by-step trench drain setup.
4. Reduced Maintenance and Cleaning
Because water moves through the system faster, pre-sloped trench drains help reduce:
- Sludge buildup
- Bacterial growth
- Frequent cleaning intervals
In food processing, breweries, distilleries, and manufacturing plants, this leads to lower labor costs and higher sanitation standards.
5. Longer System Life and Lower Risk of Failure
Standing water in a neutral drain can:
- Corrode metallic parts
- Freeze and crack concrete in winter
- Degrade sealants and channel joints
Pre-sloped systems prevent these issues by ensuring complete water evacuation during and after each flow event.
Applications Where Pre-Sloped Trench Drains Excel
Pre-sloped trench drains are recommended in environments where water must move quickly, reliably, and hygienically, including:
- Commercial loading docks
- Parking garages
- Breweries and wineries
- Food and beverage production plants
- Car washes
- High-flow stormwater zones
- Airports and hangars
- Chemical processing and washdown areas
View relevant examples on our project portfolio page.
Pre-Sloped vs. Neutral Systems: Key Comparison
|
Feature |
Pre-Sloped Drain |
Neutral Drain |
|
Built-In Slope |
Yes (0.5–1%) |
No |
|
Flow Velocity |
Higher |
Depends on slab slope |
|
Installation Time |
Faster |
Slower, requires grading |
|
Maintenance |
Lower |
More frequent |
|
Ideal For |
Flat slabs, heavy flow |
Small areas, short runs |
|
Cost |
Slightly higher upfront |
Slightly lower upfront |
In most high-volume or critical applications, the long-term benefits of a pre-sloped system outweigh the slightly higher initial cost.
Materials and Grates for Pre-Sloped Systems
Pre-sloped trench drains are available in a variety of materials to match load requirements, chemical exposure, and environmental conditions.
Channel Material Options
|
Material |
Benefits |
Best Use |
|
Polymer Concrete |
Strong, pre-cast, F-rated |
Airports, docks, heavy industry |
|
HDPE |
Lightweight, corrosion-resistant |
Parking lots, driveways |
|
Fiber-Reinforced Concrete |
Impact-resistant, cost-effective |
Distribution centers, walkways |
|
Stainless Steel |
Sanitary, hygienic |
Food plants, breweries |
Learn more on our material comparison page.
Grate Options
|
Grate Type |
Load Rating |
Best Use |
|
Ductile Iron Slotted |
D400–F900 |
Forklift zones, docks |
|
Galvanized Steel Bar |
C250–D400 |
General commercial traffic |
|
HDPE Grates |
A15–B125 |
Residential, pedestrian |
|
Stainless Steel Heel-Proof |
B125–C250 |
Sanitary zones, ADA walkways |
Visit our trench drain grate types guide for full specifications.

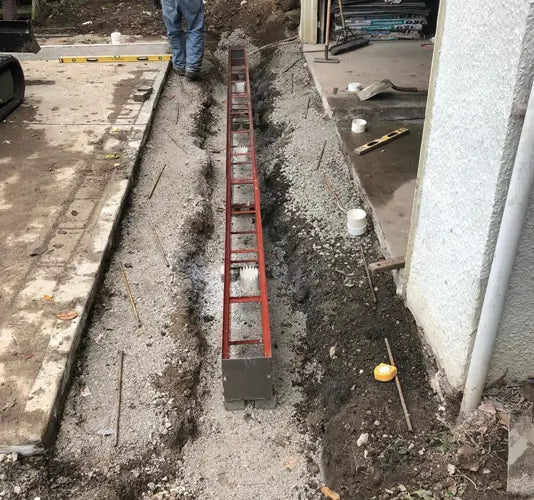

Installation Tips for Pre-Sloped Trench Drains
Proper installation maximizes the benefits of pre-sloped systems.
- Start at the outlet and install backward so channels naturally build slope
- Use rebar anchors or locking clips to prevent channel shift
- Ensure the outlet elevation matches your discharge pipe height
- Pour concrete evenly along both sides to avoid channel lift
- Use expansion joints every 30–40 ft for thermal relief
Download our pre-sloped trench drain installation guide for diagrams and full procedure.
Discharge and Flow Management
Pre-sloped trench drains work best when connected to a properly designed outflow system, such as:
- Storm sewer systems
- Oil-water separators
- French drains or dry wells
- Detention tanks
- Chemical containment systems
For high-volume environments, it’s important to match the slope and length of the system with an outlet pipe that won’t cause backflow or bottlenecking.
Use our trench drain calculator to model flow and discharge.
Cost Considerations
Pre-sloped systems may be slightly more expensive than neutral trench drains, but the total installed cost is often lower due to reduced labor and faster installation.
|
Component |
Estimated Price (Per Linear Foot) |
|
HDPE Pre-Sloped Channel |
$55–$90 |
|
Polymer Concrete Pre-Sloped |
$130–$220 |
|
Stainless Steel Pre-Sloped |
$180–$300 |
|
Grates (Optional) |
$30–$80 |
|
Accessories (End Caps, Baskets) |
$20–$60 |
Get a full estimate using our cost breakdown page.
Summary
Pre-sloped trench drain systems offer a smarter, more reliable approach to managing surface water in high-demand environments. Their built-in slope improves water velocity, reduces maintenance, and eliminates the need for slab grading—making them ideal for a wide range of commercial, industrial, and residential applications.
For any project where performance, hygiene, and reliability matter, a pre-sloped system is the clear choice.
Next Steps
- Explore our full line of pre-sloped trench drain systems
- Use this drainage calculator to size your system
- Contact our technical sales team for a custom layout and quote
