Model 100

Model 100

Engineered for Performance, Built for Durability

Width: 5″ Duty: Medium, Heavy

Select grate material:

Ductile Iron
Ductile Iron
Stainless Steel
Stainless Steel
Galvanized Steel
Galvanized Steel
Polymer
Polymer

Select system length:

ft

*TD System Includes: End cap, end outlet, channels and grates.

Select number of end caps:

1

Select number of end outlets:

1

*Each run will require one end cap and one end outlet.

Add a catch basin

Total: 0.00 $
View full details

Model 100 Series Trench Drain System

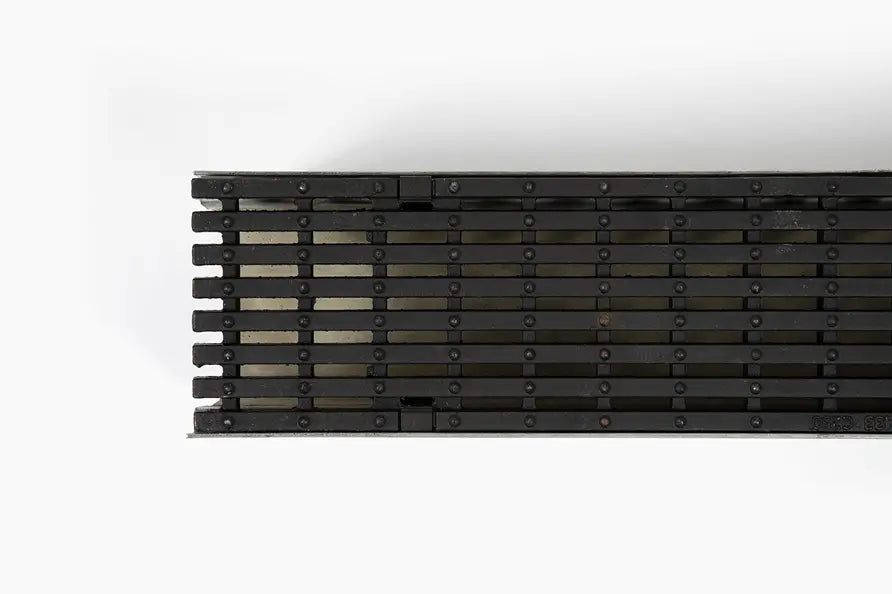

Swiftdrain 100 Concrete Trench Drain 4

Engineered for Performance, Built for Durability

The Model 100 Series Trench Drain System is the ultimate solution for residential, commercial, and industrial drainage needs. Designed for seamless water management, this system combines robust engineering, sleek aesthetics, and superior durability to handle anything from residential driveways to high-traffic industrial zones.

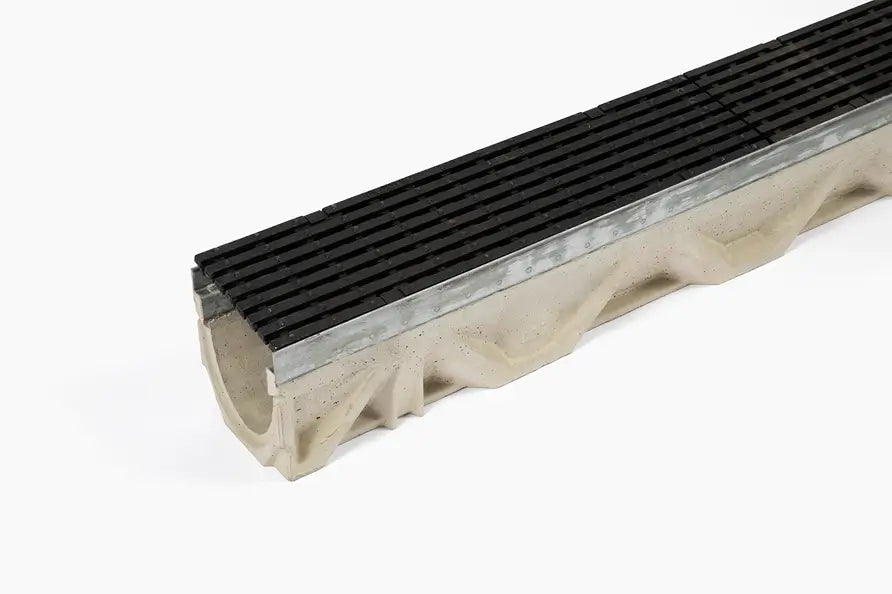

Swiftdrain 100 Concrete Trench Drain 2

Why Choose the Model 100 Series?

Heavy-Duty Construction for Maximum Performance
The 4.8” (100mm) wide fiber-reinforced concrete channel delivers exceptional strength and longevity, making it ideal for environments that require high load-bearing capacity. Durable metal grates ensure superior drainage and long-term reliability, with various styles available to meet both functional and aesthetic needs. The ADA-compliant slot-top grates maintain accessibility while offering a modern, low-profile design.
Seamless Installation & Versatile Compatibility
Designed for easy integration, the system is compatible with standard 4” pipes, streamlining installation and ensuring efficient water flow management. Engineered for durability, it resists temperature fluctuations, preventing cracking and warping in extreme conditions. UV-resistant materials protect the system’s integrity and appearance, even with prolonged sun exposure.

Built for Demanding Environments

  • High Load Capacity for Heavy-Duty Applications

    With a Class D load rating, the system supports heavy vehicular, industrial, and commercial traffic. It is an ideal choice for parking lots, factories, loading docks, and warehouses. While engineered for strength, the system’s sleek design ensures it blends seamlessly into public and private spaces, including pedestrian zones and urban landscapes.

  • Advanced Anchoring Technology for Unmatched Stability

    Anchoring ribs are precision-molded to create a secure bond with surrounding concrete, ensuring structural integrity over time. Galvanized steel rails with the FiX self-locking system provide additional safety and stability, keeping grates firmly in place even in high-traffic areas. Extended channel runs up to 180 feet allow for a modular drainage system with sloping options, making it adaptable to complex project requirements. A shallow channel option, the Swiftdrain shallow channel, ensures optimal performance in installations where depth is limited.

  • Optimized for Safety & Low-Maintenance

    The system’s self-cleaning smooth surface reduces debris buildup, minimizing maintenance requirements and costs. Strategically placed fixing points enhance long-term durability and reliability, making this system a worry-free drainage solution.

Ideal Applications

The Model 100 Series is designed to meet the demands of a wide range of environments while complementing the aesthetics of any space. Common applications include:

Application Garage Icon

Residential driveways and courtyards

Application House Icon

Commercial and public pedestrian zones

Application Stadium Icon

Sports and leisure facilities

Application City Icon

Parking lots and multi-level car parks

Application Factory Icon

Industrial and warehouse facilities

Application School Icon

Parks, green spaces, and urban streetscapes

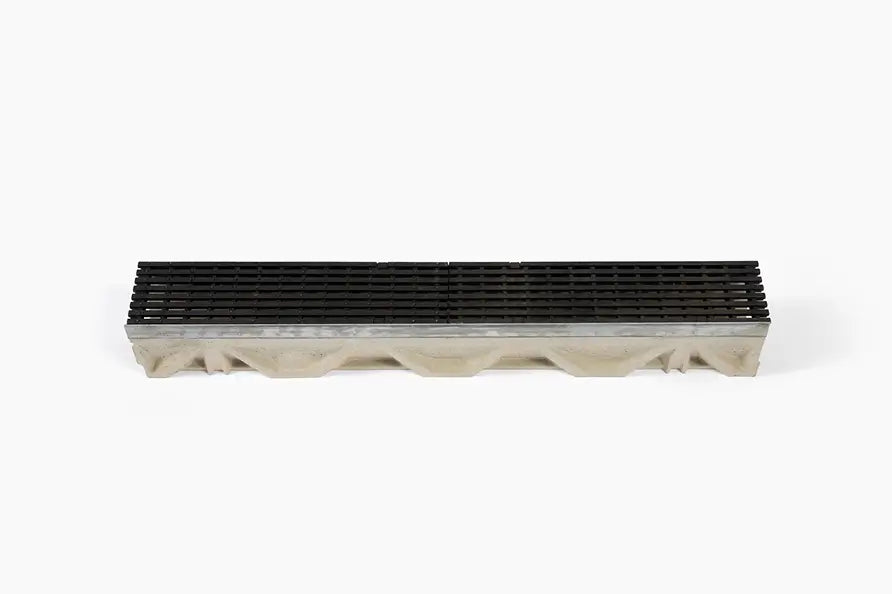

Swiftdrain 100 Concrete Trench Drain 1

Why Choose TrenchDrainCo?

TrenchDrainCo combines cutting-edge engineering, premium materials, and industry-leading expertise to deliver trench drain solutions that outperform and outlast the competition. Whether for heavy-duty industrial applications or sleek public spaces, the 100 Series offers superior performance, reliability, and design.

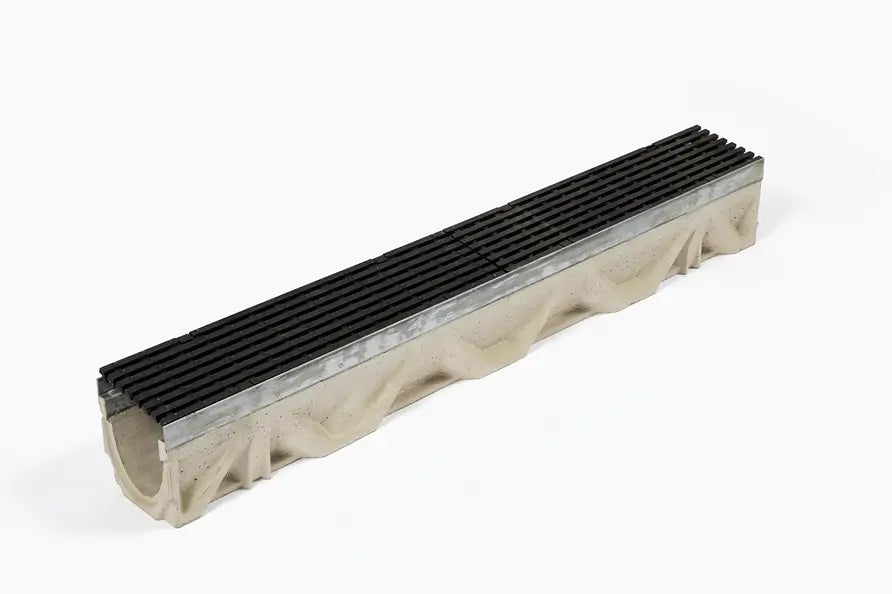

Swiftdrain 100 Concrete Trench Drain 3

Upgrade Your Drainage System Today

Invest in a drainage system built for strength, durability, and efficiency. Contact TrenchDrainCo today to learn more or request a quote for your next project.

Order Now

Frequently Asked Questions

What is a trench drain?

Expand Collapse

A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.

What does a trench drain look like?

Expand Collapse

A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.

How do I choose the right trench drain system?

Expand Collapse

Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
