Channel (Model 200)

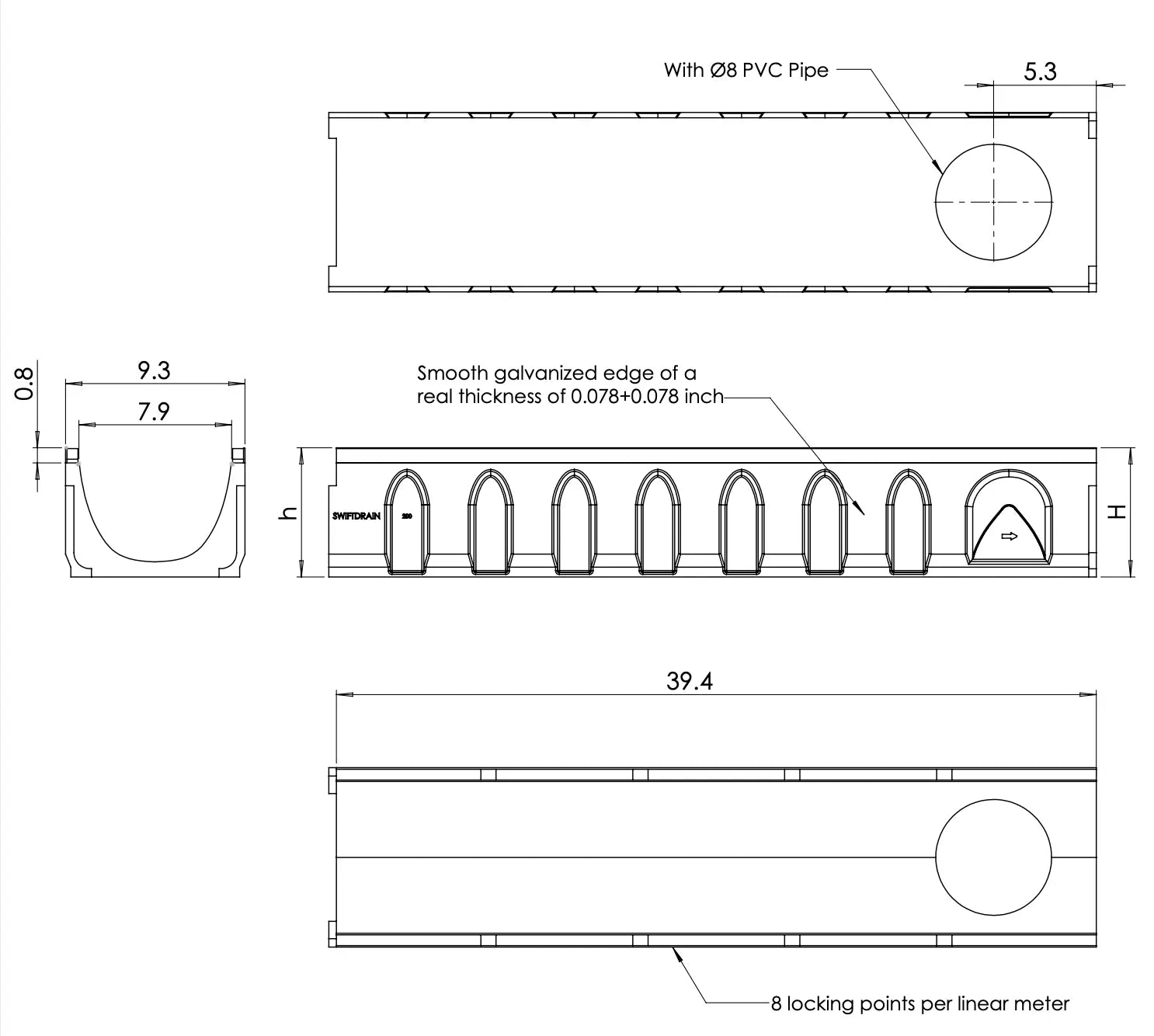

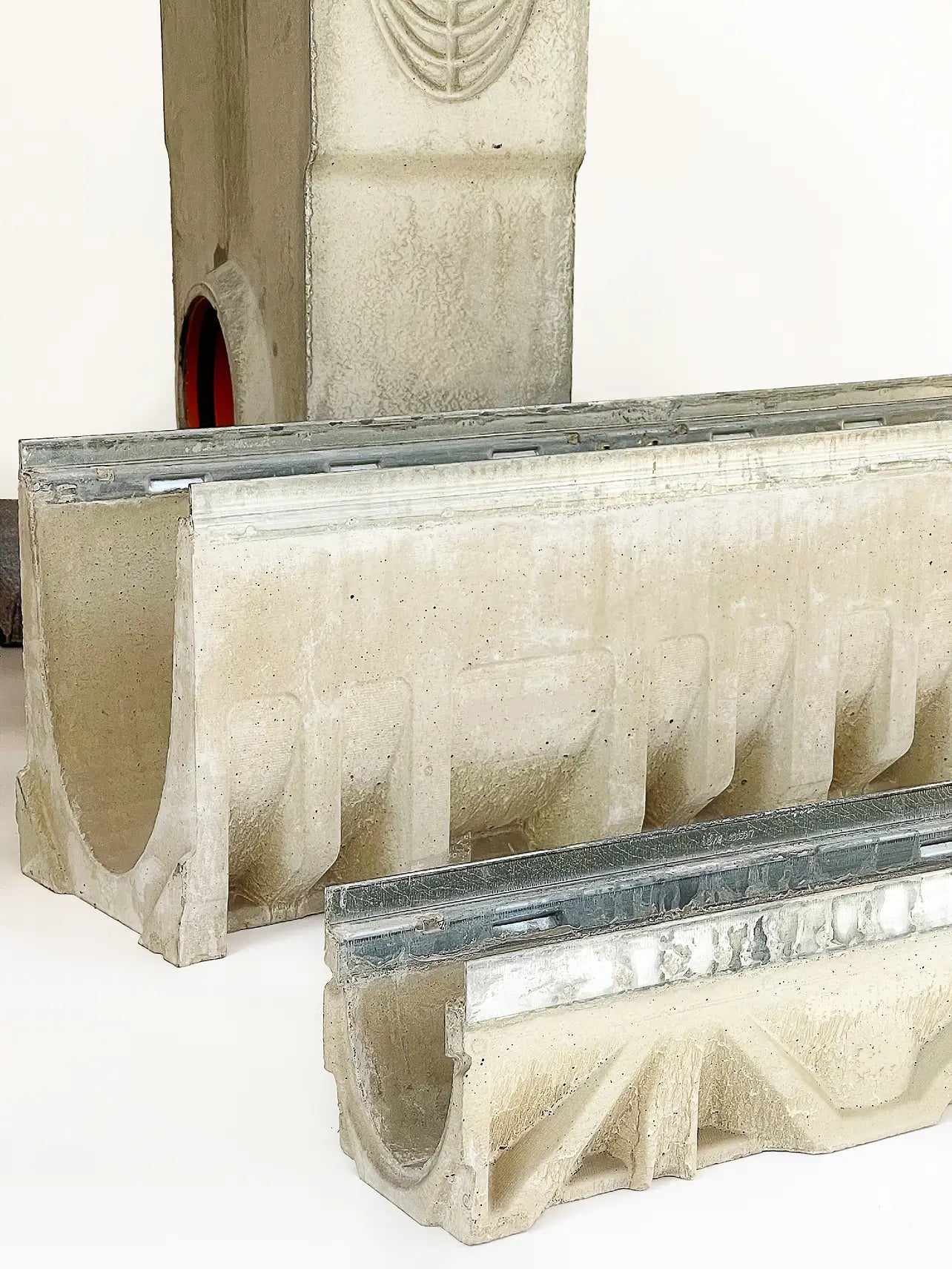

Model 200 HD series channels have a 8” internal width and come in 40” lengths. Modular channel body is made of a durable polymer concrete based material. Available with a .05% slope or without slope (neutral). Interconnecting channel sections are furnished with steel or ductile iron frames. Grate options available for load class A, B, C, D, and E and F. Channels have a smooth U shaped radiused bottom and have option for end outlet or bottom outlet. Channels have mechanical anchors and are also available with installation brackets that accept rebar.
