Model 600 HD
Model 600 HD
Unmatched Performance in All-Purpose Drainage
Select grate material:
Select Channel Profile:
Select system length:
*TD System Includes: End cap, end outlet, channels and grates.
Add a catch basin
TrenchDrainCo 600 Trench Drain System
Unmatched Performance in All-Purpose Drainage
Why Choose the TrenchDrainCo 600 Series?
-
Engineered for Strength and Efficiency

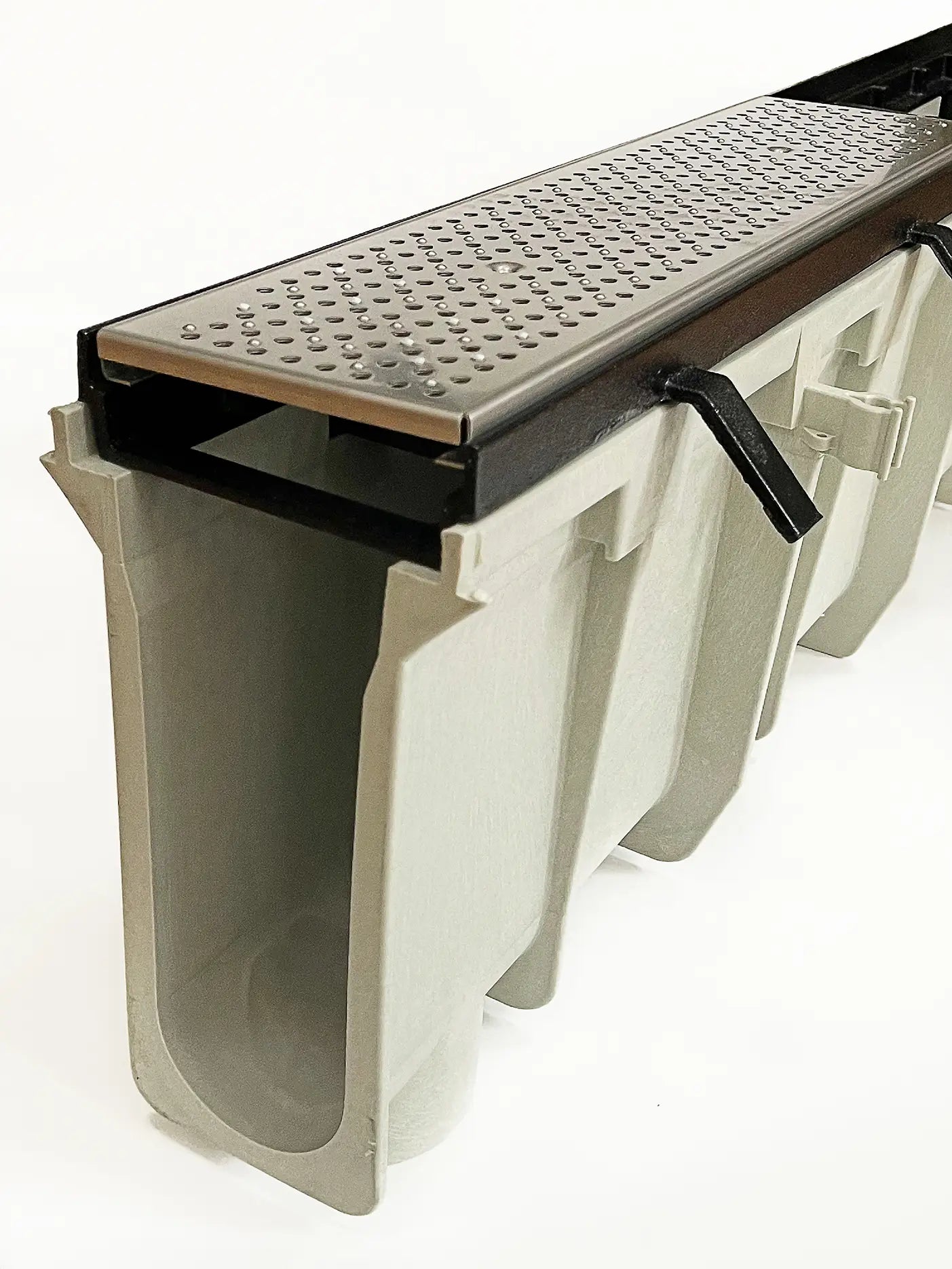

Manufactured from high-density polyethylene (HDPE), the TrenchDrainCo 600 delivers the durability of concrete without the weight, complexity, or high installation costs. Its modular, pre-sloped, and neutral channels interlock with tongue-and-groove slip joints, eliminating the need for couplers and simplifying installation.
• HDPE construction provides high chemical resistance, freeze-thaw durability, and temperature resilience.
• Pre-sloped channels with a 0.7% gradient maintain optimal flow rates for superior drainage.
• UV-resistant materials ensure long-term performance, even in harsh environments.
-
Customizable for Any Project
With more than 32 pre-sloped and neutral channel options, the TrenchDrainCo 600 adapts to any project size, supporting continuous slopes up to 256 feet and extending configurations up to 835 linear feet. Circular and radius applications are also possible, making it highly versatile.
• Channel depths range from 4 to 24 inches to meet site-specific requirements.
• Built-in bottom or end outlets are available in 3-inch, 4-inch, 6-inch, and 8-inch sizes.
• A wide selection of grating options includes ductile iron, stainless steel, galvanized steel, decorative cast iron, polymer, and bronze to meet both performance and aesthetic needs.
What Sets the TrenchDrainCo 600 Apart?
-
Fast, Hassle-Free Installation
The lightweight modular system simplifies handling and installation, reducing labor costs. Each channel is sequentially numbered with flow-direction markers for easy assembly. Integrated anchor points for rebar prevent floating and ensure a secure, long-lasting fit.
-

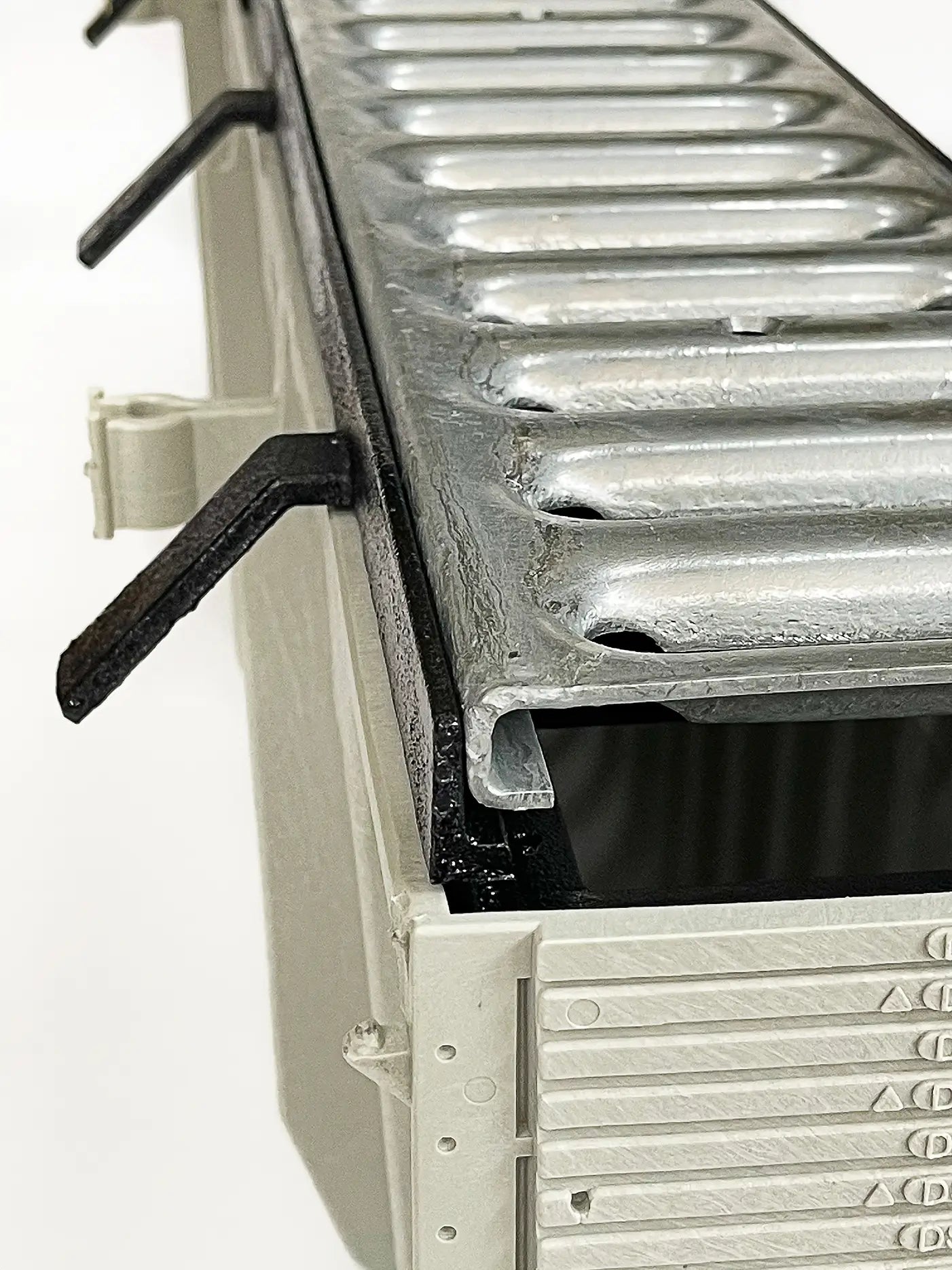

Industry-Leading Grate Options
Swiftdrain 600 provides one of the widest selections of grates, designed to meet various load ratings, aesthetic preferences, and safety requirements.

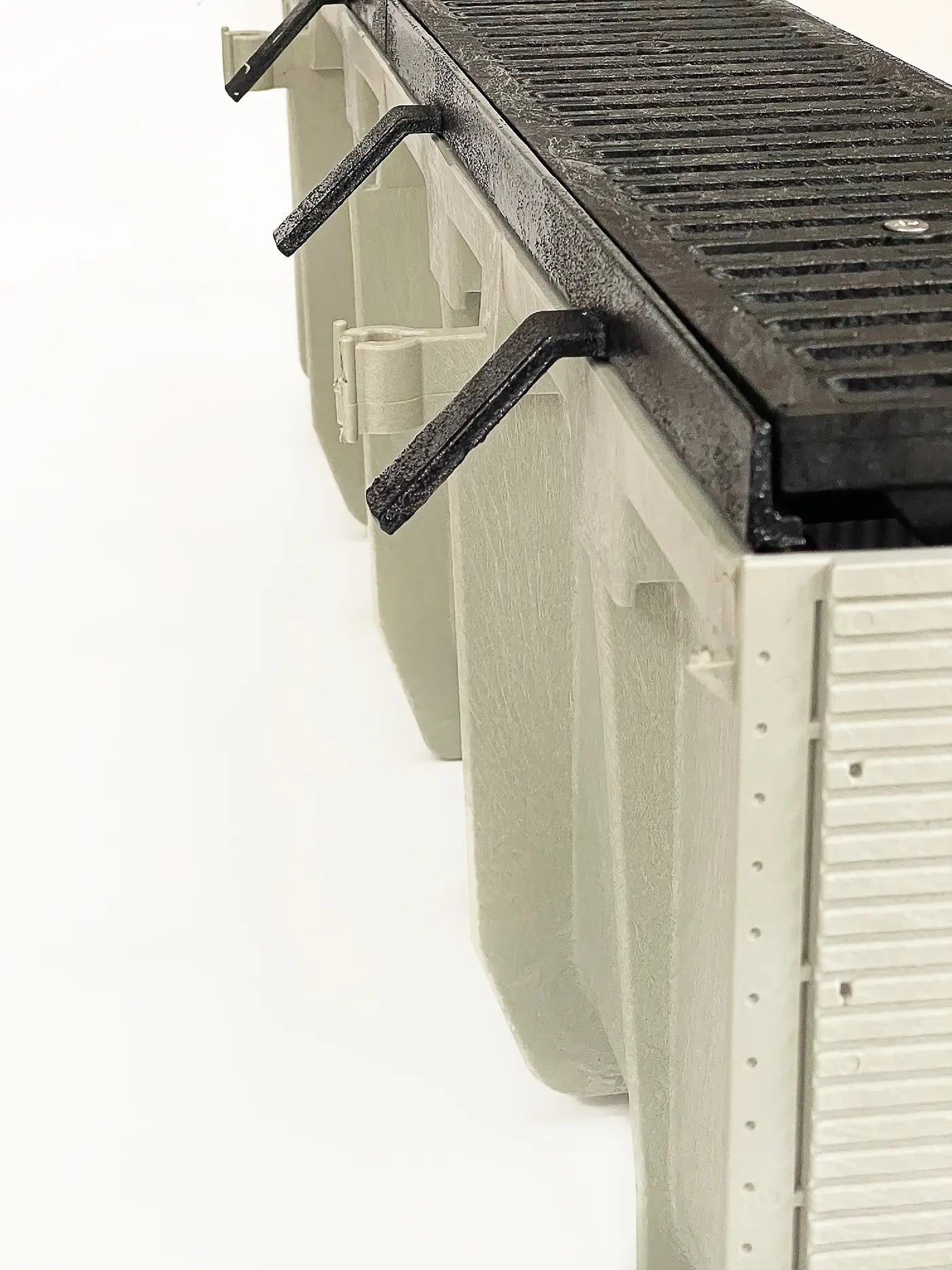

• Load ratings range from pedestrian-friendly to heavy-duty forklift applications, with Class D-rated ductile iron frames for high-load environments.• Grate options include ADA-compliant, heel-proof, decorative, horizontal, vertical, and forklift-rated designs.
• Polymer grates are available in multiple colors, including black, white, gray, sand, and brick red, to blend into or enhance different projects.
-
Sanitation & Corrosion Resistance
For breweries, food processing plants, and chemical facilities, stainless steel and galvanized steel grates provide superior chemical resistance and easy cleaning, ensuring compliance with industrial sanitation standards.
-
Engineered for Demanding Applications
Designed with contractors, engineers, and architects in mind, the Swiftdrain 600 provides reliable drainage solutions across a range of conditions.
• The six-inch-wide channel with a 4.5-inch internal diameter and 2.5-inch radius bottom optimizes water flow.
• Withstands freeze-thaw cycles for year-round performance in extreme climates.
• Bicycle- and heel-proof grate options enhance safety in public spaces.

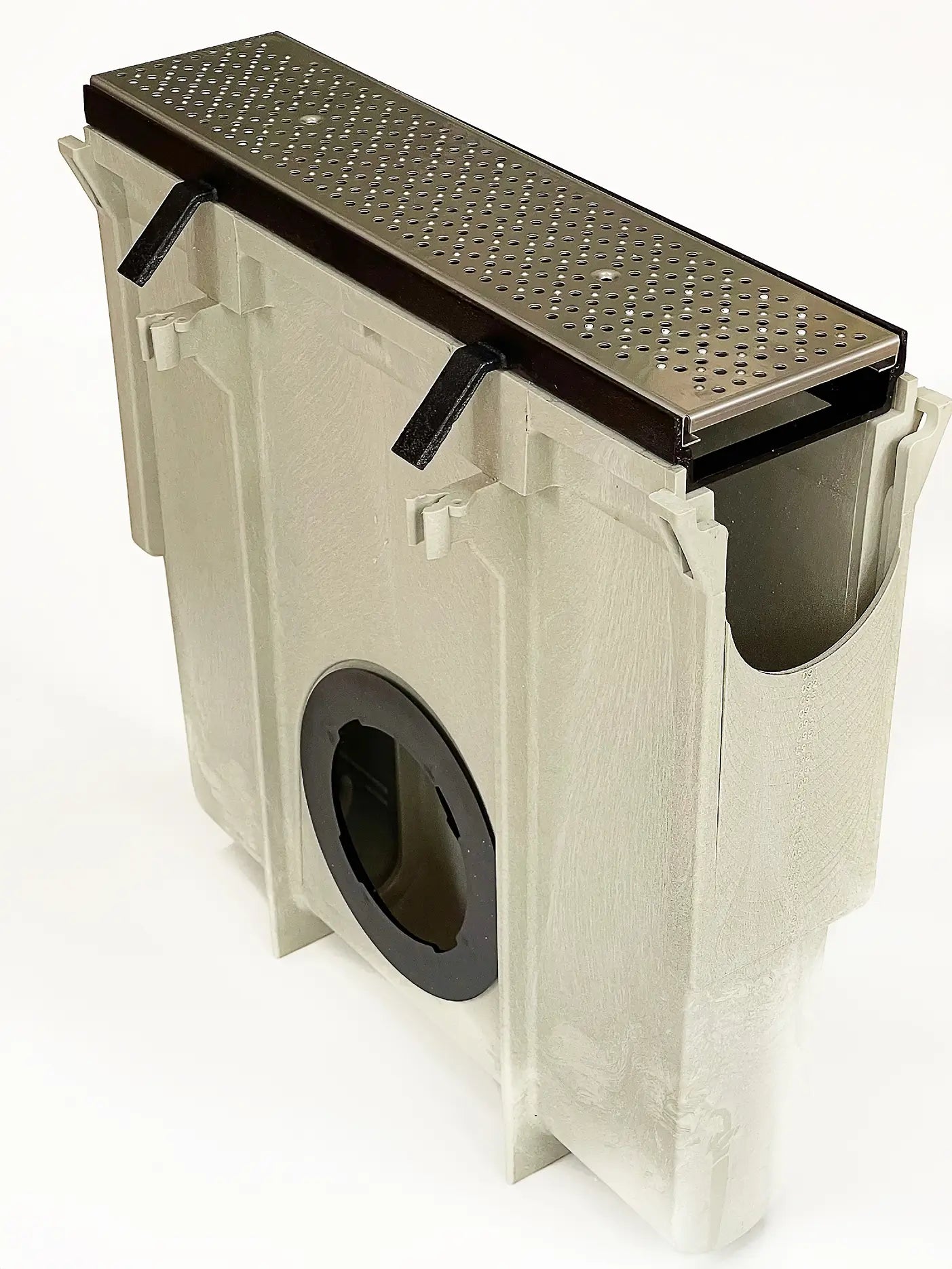

• Universal catch basin compatibility allows for seamless integration into complex drainage systems.
Ideal Applications
Residential
Driveways, patios, and pool decks
Commercial
Parking lots, loading docks, and warehouses
Industrial
Factories, chemical plants, and breweries
Recreational
Stadiums, athletic fields, and parks
Technical Specifications
Frequently Asked Questions
What is a trench drain?
A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.
What does a trench drain look like?
A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.
How do I choose the right trench drain system?
Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
