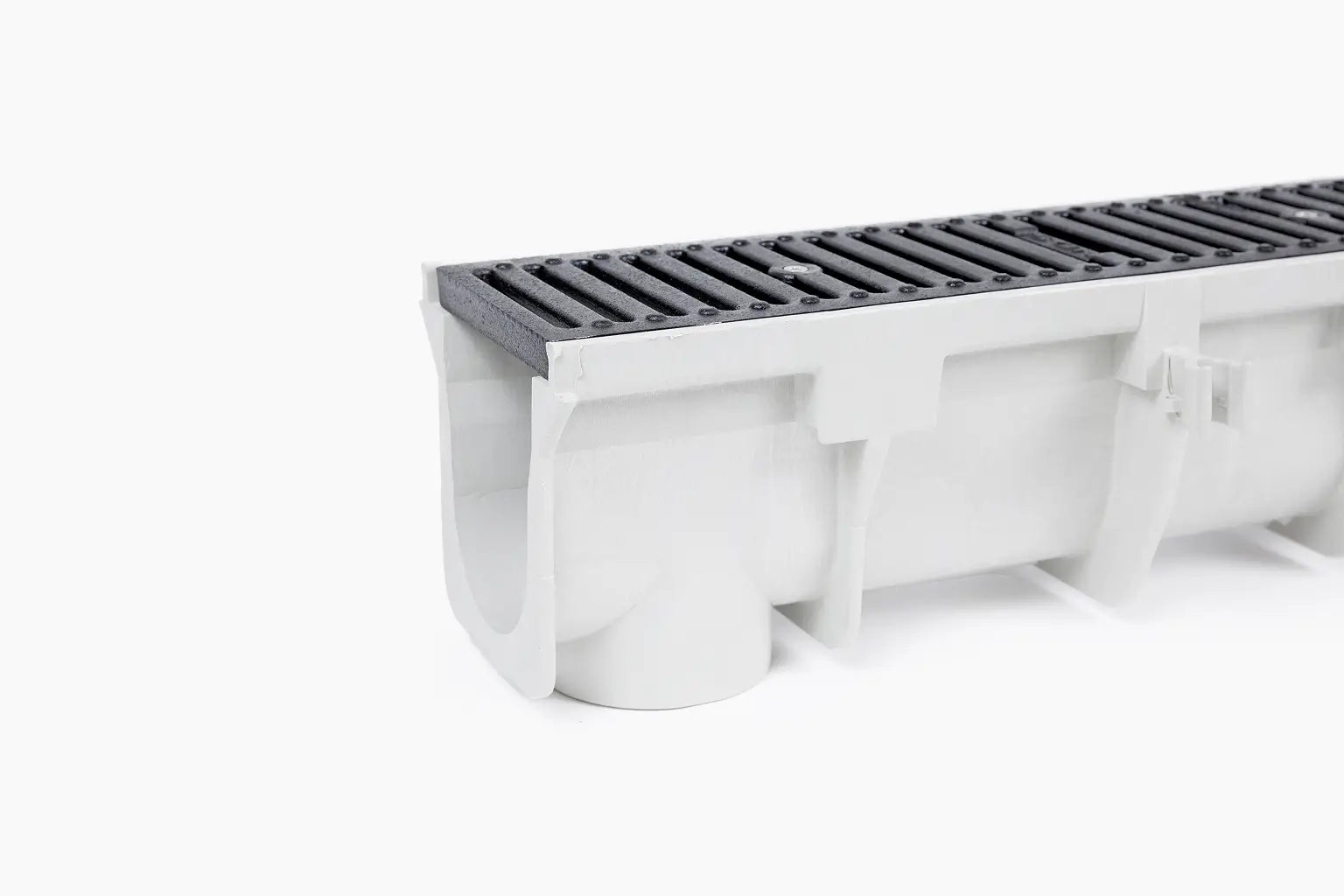

• Swiftdrain 600 Ductile Iron 632 Grate 1

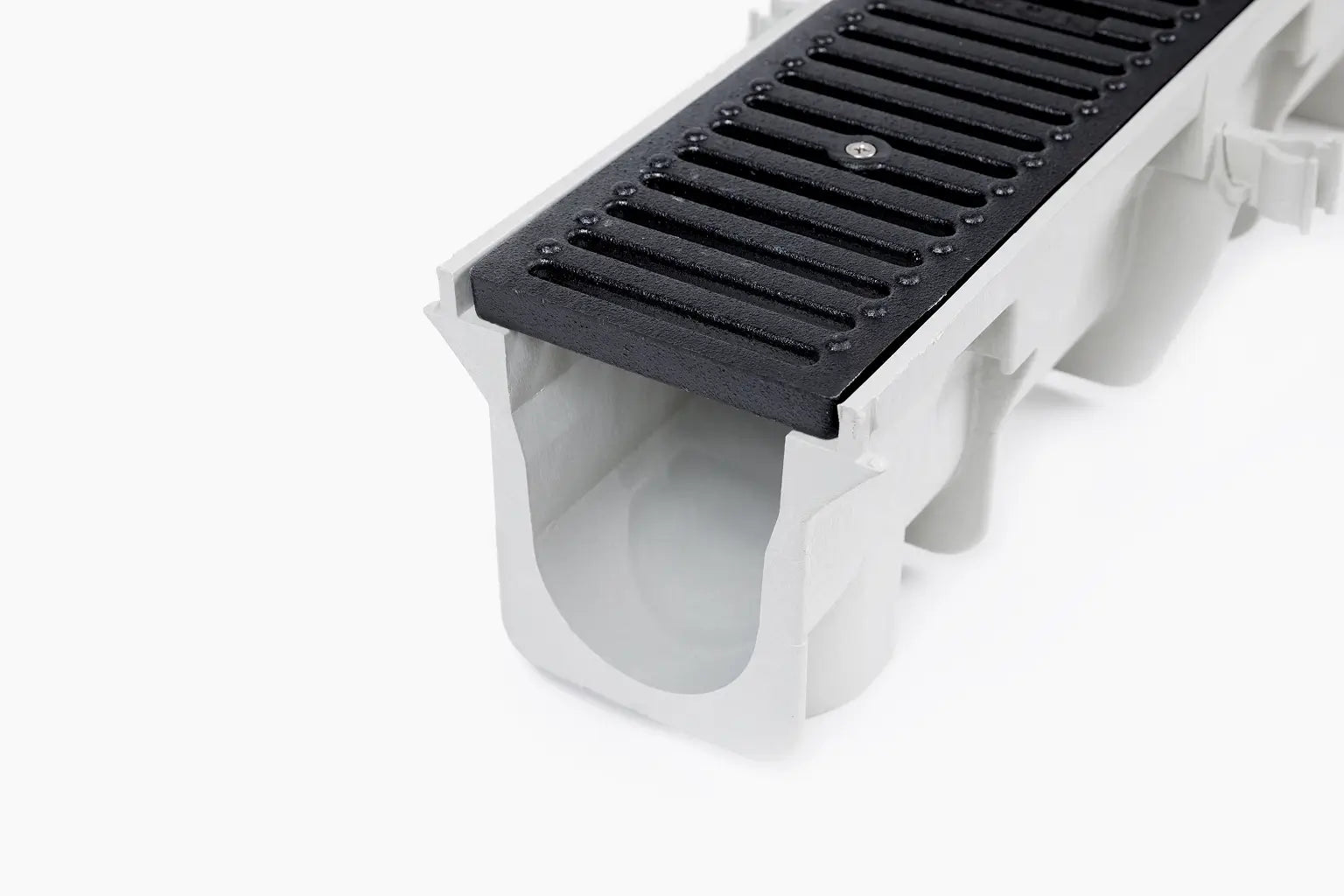

  • Swiftdrain 600 Ductile Iron 632 Grate 2

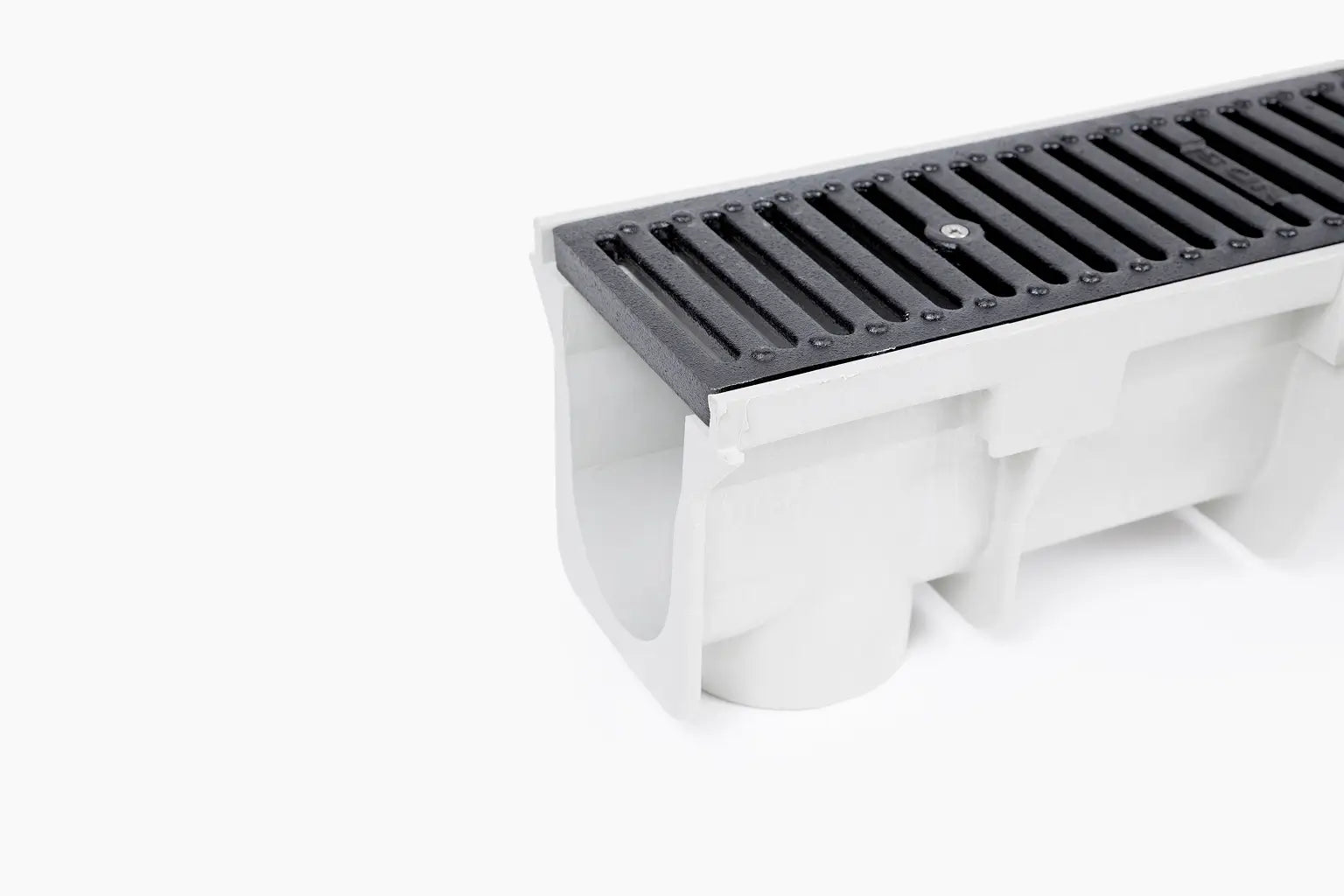

  • Swiftdrain 600 Ductile Iron 632 Grate 3

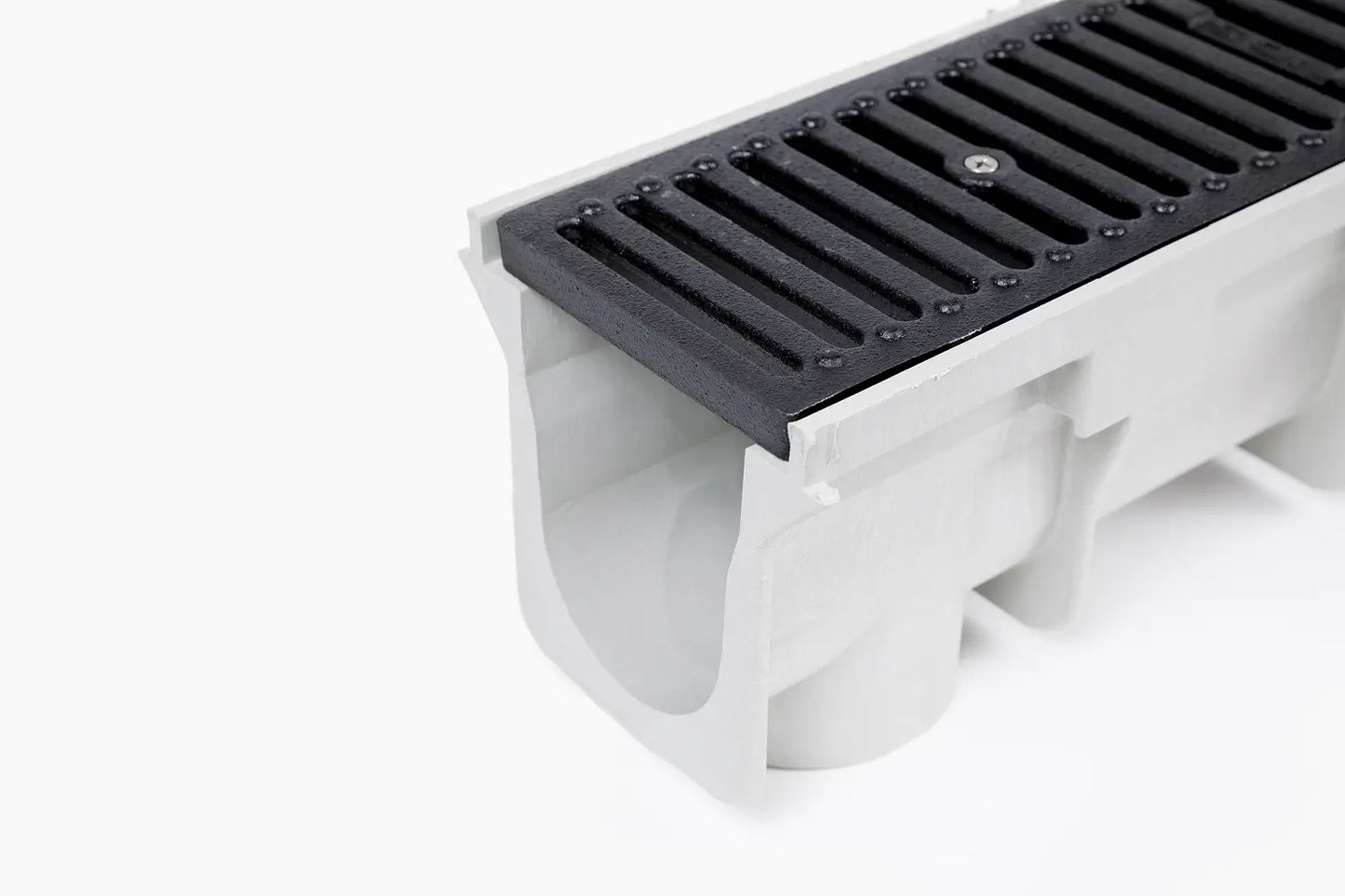

  • Swiftdrain 600 Ductile Iron 632 Grate 4
1 4
Installation Guide Specification Guide

Model 600

Model 600

Best in class for all-purpose drainage.

Width: 6″ Duty: Light, Medium, Heavy

Select grate material:

Ductile Iron (Deco L)
Ductile Iron (Deco L)
Ductile Iron (Deco K)
Ductile Iron (Deco K)
Ductile Iron (Deco J)
Ductile Iron (Deco J)
Ductile Iron
Ductile Iron
Stainless steel
Stainless steel
Galvanized Steel
Galvanized Steel
Polymer (Tan)
Polymer (Tan)
Polymer (Green)
Polymer (Green)
Polymer (White)
Polymer (White)
Polymer (Black)
Polymer (Black)
Polymer (Red)
Polymer (Red)
Polymer (Grey)
Polymer (Grey)

Select system length:

ft

*TD System Includes: End cap, end outlet, channels and grates.

Select number of end caps:

1

Select number of end outlets:

1

*Each run will require one end cap and one end outlet.

Add a catch basin

Total: 0.00 $
View full details

Model 600 Trench Drain System

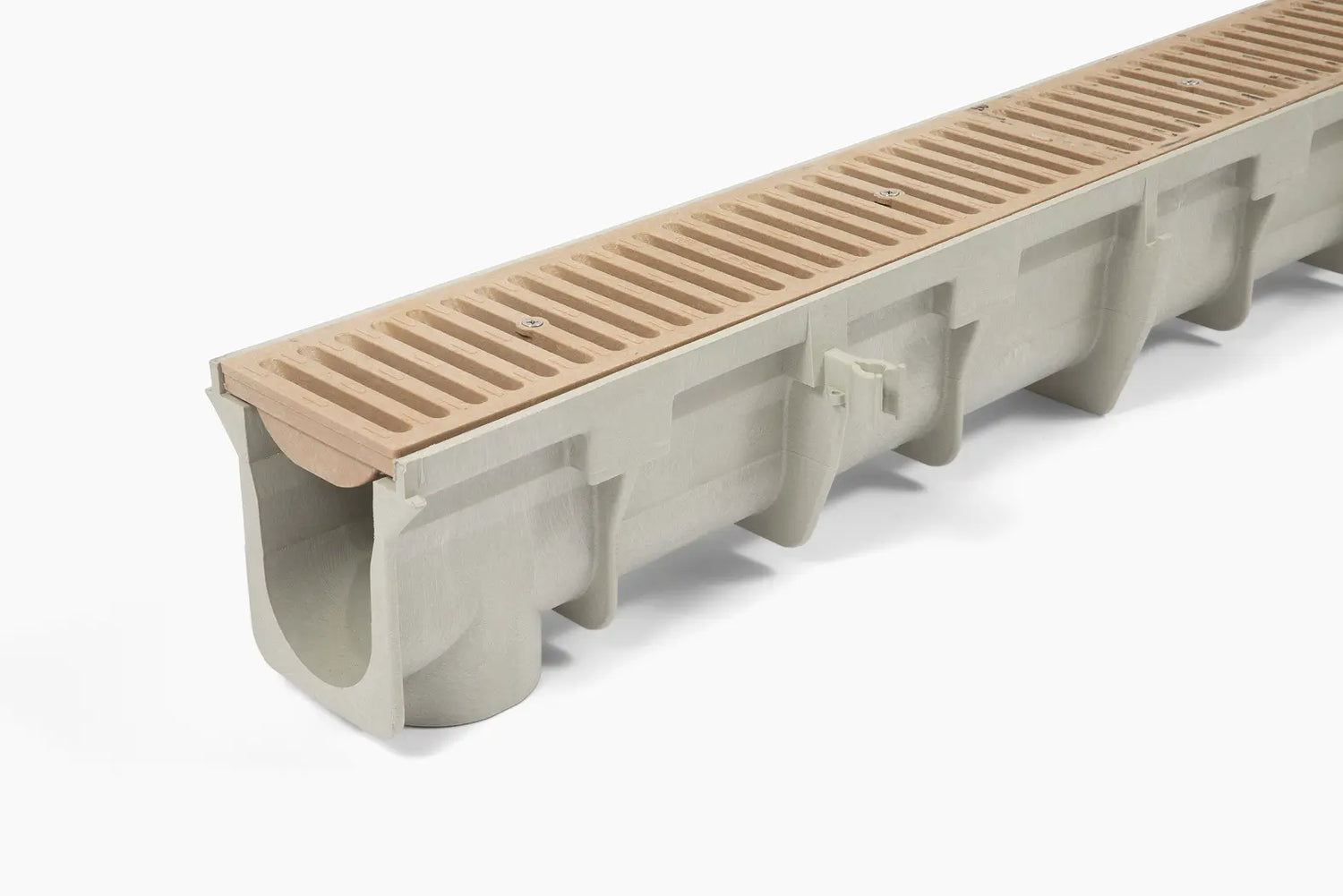

Swiftdrain 600 Polymer 610 Tan

The Ultimate All-Purpose Drainage Solution

The Model 600 Trench Drain System is engineered to handle diverse drainage challenges in residential, commercial, and industrial environments. Designed for unmatched durability, efficiency, and ease of installation, this system is the go-to choice for managing surface runoff in driveways, parking lots, warehouses, pools, athletic fields, and industrial wash-down areas.

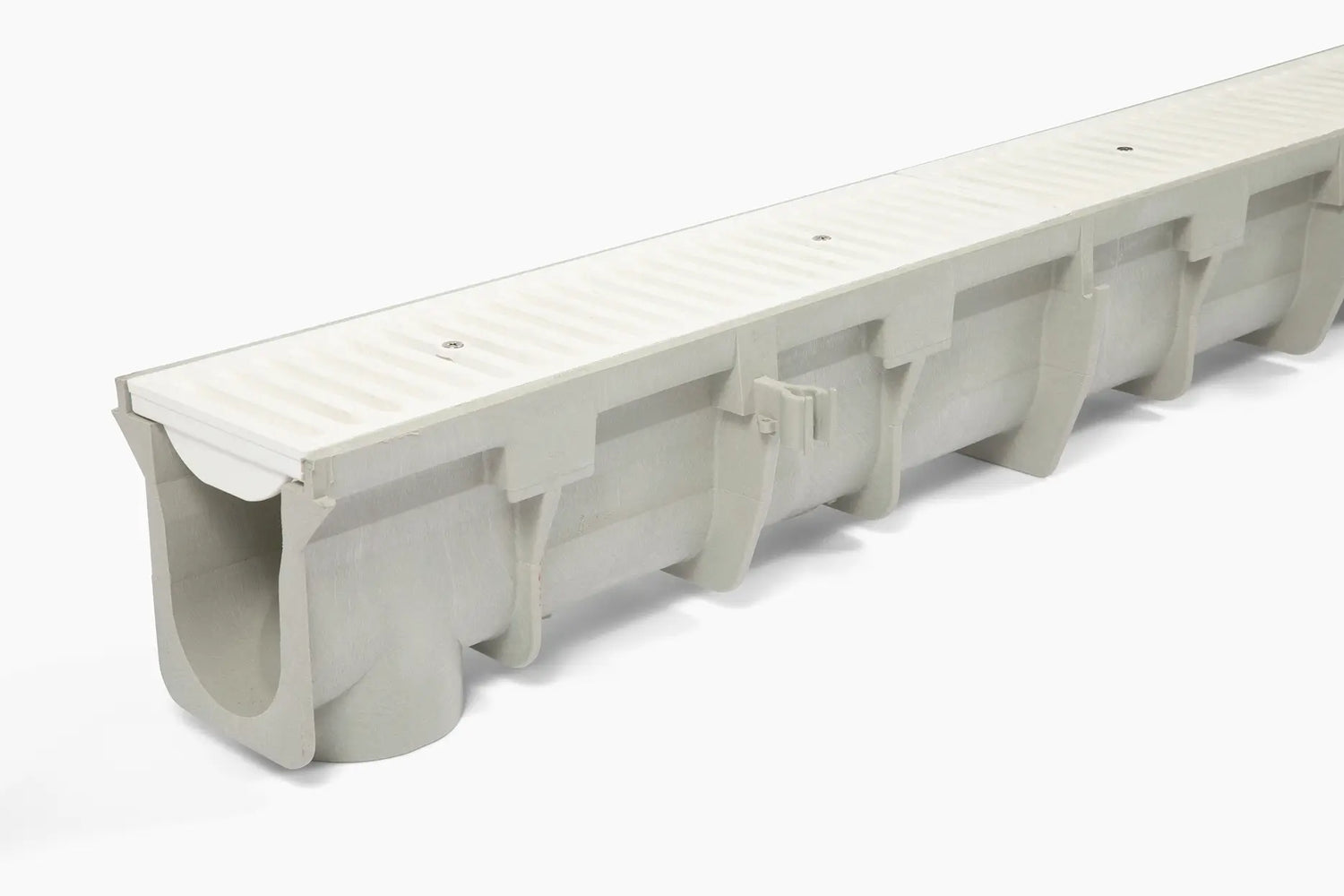

Swiftdrain 600 Polymer 610 White

Why Choose the Model 600?

Durable. Versatile. Cost-Effective.
Manufactured from high-density polyethylene (HDPE), the TrenchDrainCo 600 delivers the strength of concrete at a fraction of the weight and installation cost. Its modular design, featuring pre-sloped and neutral channels, ensures efficient water flow while making installation faster and more straightforward than ever. Built to withstand extreme conditions, from freeze-thaw cycles to heavy traffic, this system is ideal for high-performance drainage applications.

Key Features of the Model 600 Series

  • Customizable Modular Design

    • Interlocking tongue-and-groove connections allow channels to snap together seamlessly — no couplers required.

    • Supports run lengths up to 835 feet with a 0.7%–1% slope and options for circular or radius layouts.

  • Variety of Grating Options

    Choose from multiple materials to match aesthetic and functional needs:

    • Ductile Iron & Cast Iron – Heavy-duty load-bearing capability.

    • Galvanized Steel & Stainless Steel – Corrosion-resistant for industrial use.

    • Polymer & Bronze – Lightweight, decorative, and available in seven color options(black, white, gray, green, sand, brick red, and dark gray).

    • ADA-Compliant, Heel-Proof, Forklift-Rated, and Decorative Grates available.

  • Unmatched Strength and Durability

    • HDPE channels provide high chemical resistance and UV stability.

    • Ductile iron frames and grates support Class D load ratings, ideal for forklift and industrial traffic areas.

  • Effortless Installation

    • Lightweight, sequentially numbered channels with directional flow arrows for quick assembly.

    • Anchor points for rebar ensure a secure fit and prevent floating during concrete pours.

    • Pre-sloped channels maintain optimal flow rates for efficient drainage performance.

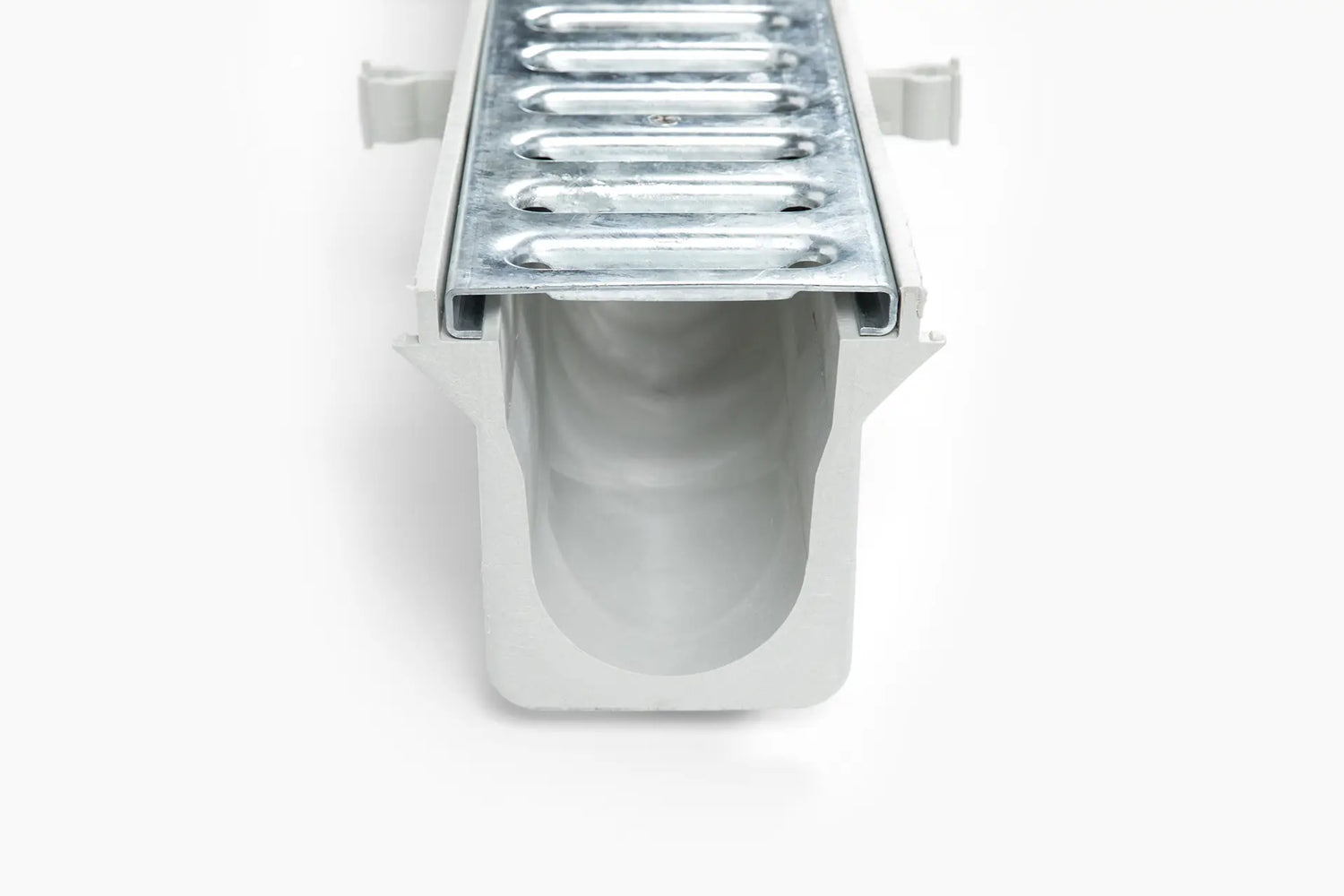

Swiftdrain 600 Galvanized Steel

Performance Specifications

Channel Width (OD): 6″

Channel Width (ID): 4.5″

Available Slopes: 0.7%

Maximum Flow Rate: 396 GPM per foot

Channel Depths: 4″ to 24″

Outlet Sizes: 3″, 4″, 6″

Grating Options: Decorative, ADA-Compliant, Heel-Proof

Run Lengths: Up to 835 feet with neutral extensions

Ideal Applications for the Model 600

Designed for residential, commercial, and industrial environments, this system excels in:

Application City Icon

Driveways & Parking Lots

Keeps surfaces safe and free from standing water.

Application School Icon

Warehouses & Industrial Facilities

Handles heavy vehicle and forklift traffic.

Application Stadium Icon

Athletic Fields & Pools

Provides quick water evacuation for safety and comfort.

Application Factory Icon

Chemical Plants & Breweries

Corrosion-resistant construction ensures long-lasting reliability.

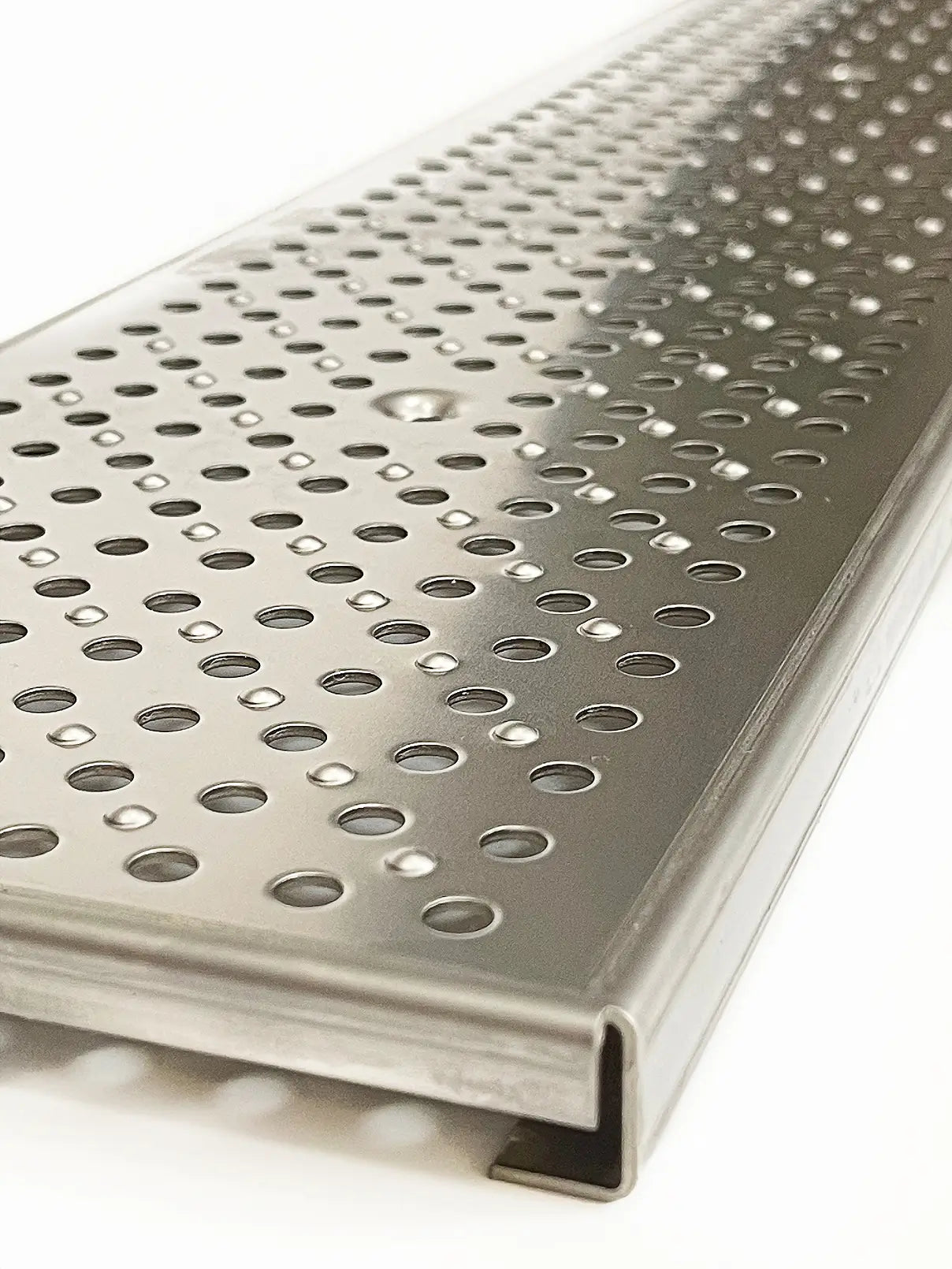

Swiftdrain 600 stainless steel GRATE

Superior Quality You Can Trust

Engineers and contractors choose the Model 600 for its functionality, durability, and ease of installation. Its lightweight yet strong HDPE construction ensures long-lasting performance even under extreme conditions.

With modular flexibility, customizable configurations, and high-performance materials, the Model 600 adapts to your project’s unique needs.

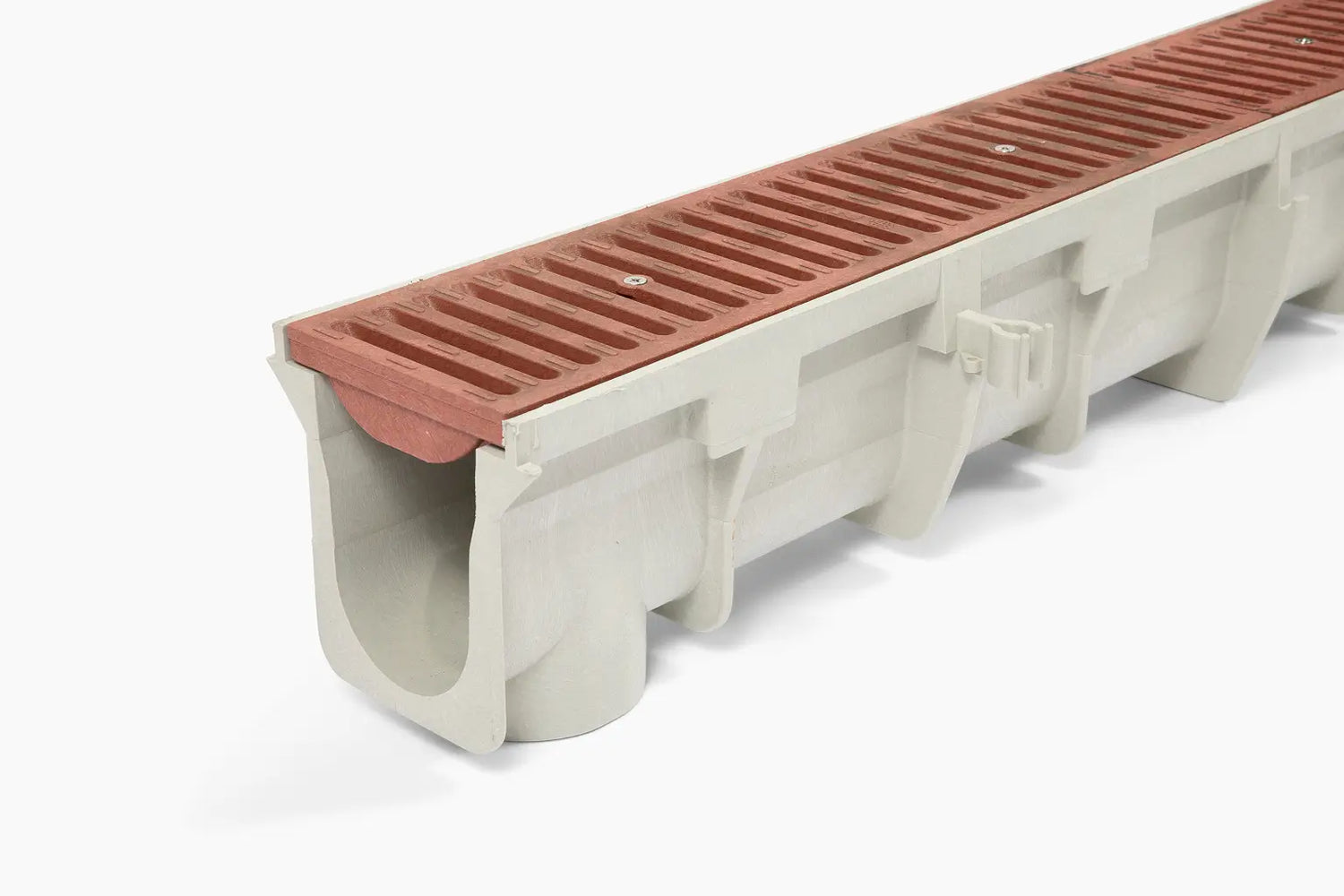

Swiftdrain 600 Polymer 610 Red

Easy Installation = Cost Savings

Unlike traditional concrete trench drains, which require extensive labor and heavy equipment, the TrenchDrainCo 600 is designed for effortless handling and installation.

• Molded with precision for secure tongue-and-groove connections, eliminating the need for couplers.

• Pre-numbered channels and directional flow arrows simplify layout and assembly.

• Lightweight design reduces labor costs and speeds up installation.

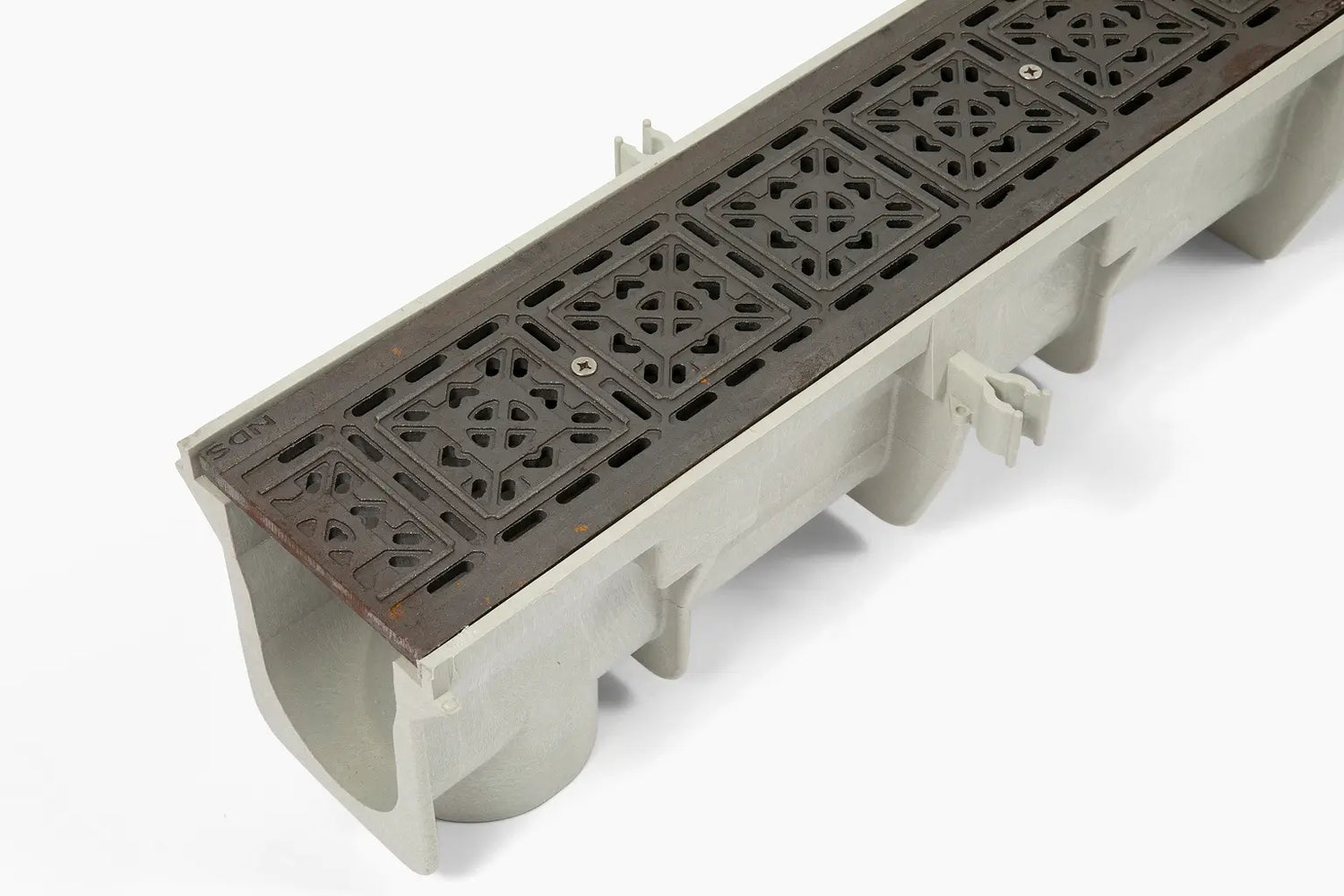

Swiftdrain 600 Ductile Iron 622 Deco 3

Why Choose TrenchDrainCo?

At TrenchDrainCo, we are committed to engineering excellence, innovation, and customer satisfaction. Our trench drain systems outperform traditional drainage solutions, ensuring optimal efficiency, durability, and ease of use.

Whether you’re managing surface runoff for a residential project or designing a large-scale industrial drainage system, the TrenchDrainCo 600 delivers superior results.

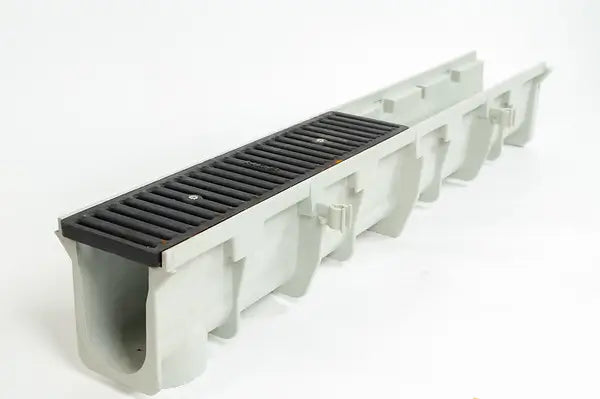

Swiftdrain 600 Trench Drain With Ductile Iron Grates

Upgrade Your Drainage System Today

Experience the gold standard in trench drain performance with the Model 600.

Contact us today for expert advice, pricing, and configuration options. Let us help you design a custom drainage solution tailored to your needs.

Order Now

Frequently Asked Questions

What is a trench drain?

Expand Collapse

A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.

What does a trench drain look like?

Expand Collapse

A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.

How do I choose the right trench drain system?

Expand Collapse

Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
