• Quicksilver 12 inch wide
  • Quicksilver 12 channel and grate
1 2
Specification Guide

Quicksilver 12

Quicksilver 12

High-Capacity Drainage | Industrial Strength | Sanitary by Design

Width: 12″ Duty: Medium

Select grate material:

Stainless Steel (Slotted)
Stainless Steel (Slotted)
Stainless Steel (Mesh)
Stainless Steel (Mesh)

Select system length:

ft

*TD System Includes: End cap, end outlet, channels and grates.

Select number of end caps:

1

Select number of end outlets:

1

*Each run will require one end cap and one end outlet.

Add a catch basin

Total: 0.00 $
View full details

TrenchDrainCo Quicksilver 12-Inch

Stainless Steel Trench Drain System

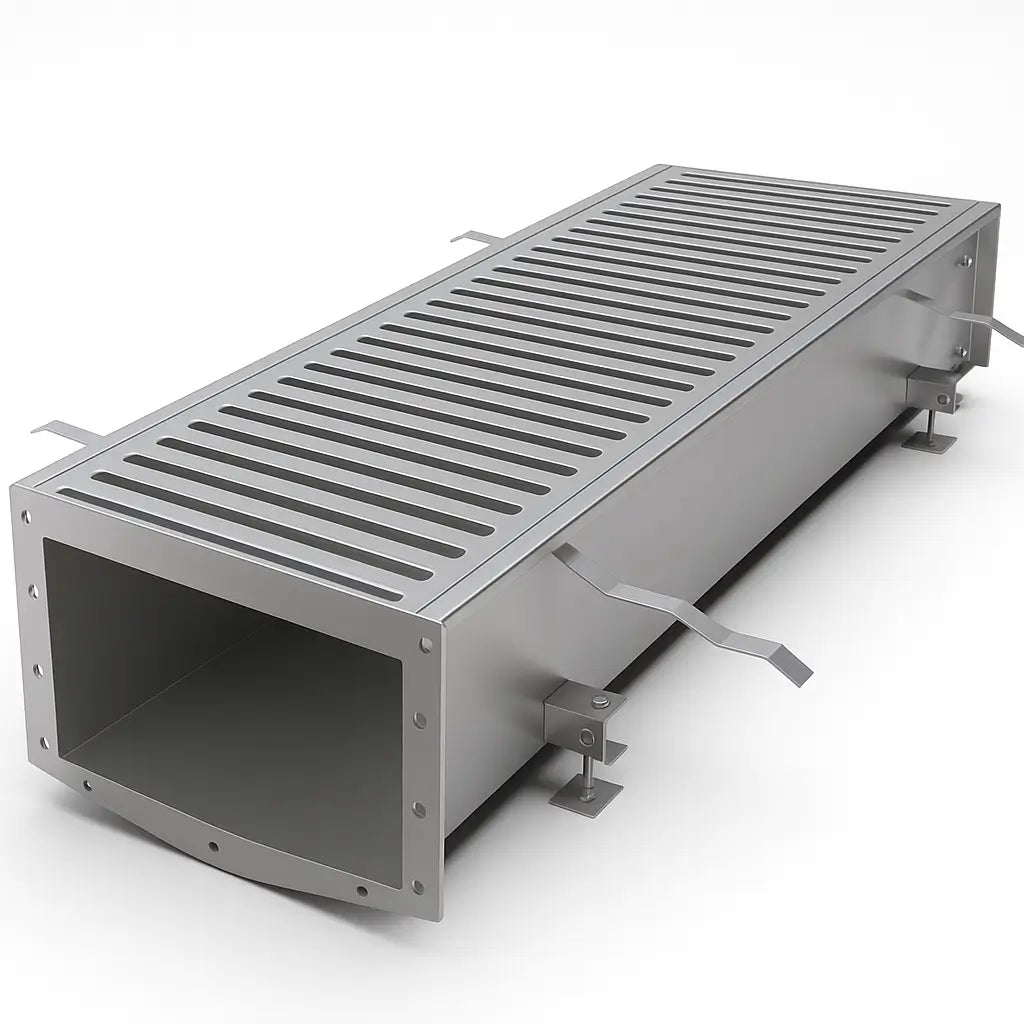

Quicksilver 12 channel and grate

High-Capacity Drainage | Industrial Strength | Sanitary by Design

The TrenchDrainCo Quicksilver 12-Inch Stainless Steel Trench Drain System is engineered for maximum capacity, rugged durability, and uncompromising hygiene. Tailored for large-scale industrial operations, food and beverage processing, and marine or chemical-heavy environments, this system combines advanced engineering with the corrosion-resistant power of stainless steel.

Crafted from 304 or 316 stainless steel, this 12-inch system delivers exceptional flow rates and heavy-duty performance in areas where standard drains fall short. It’s the ultimate solution for facilities that need reliable drainage under pressure—both literally and figuratively.

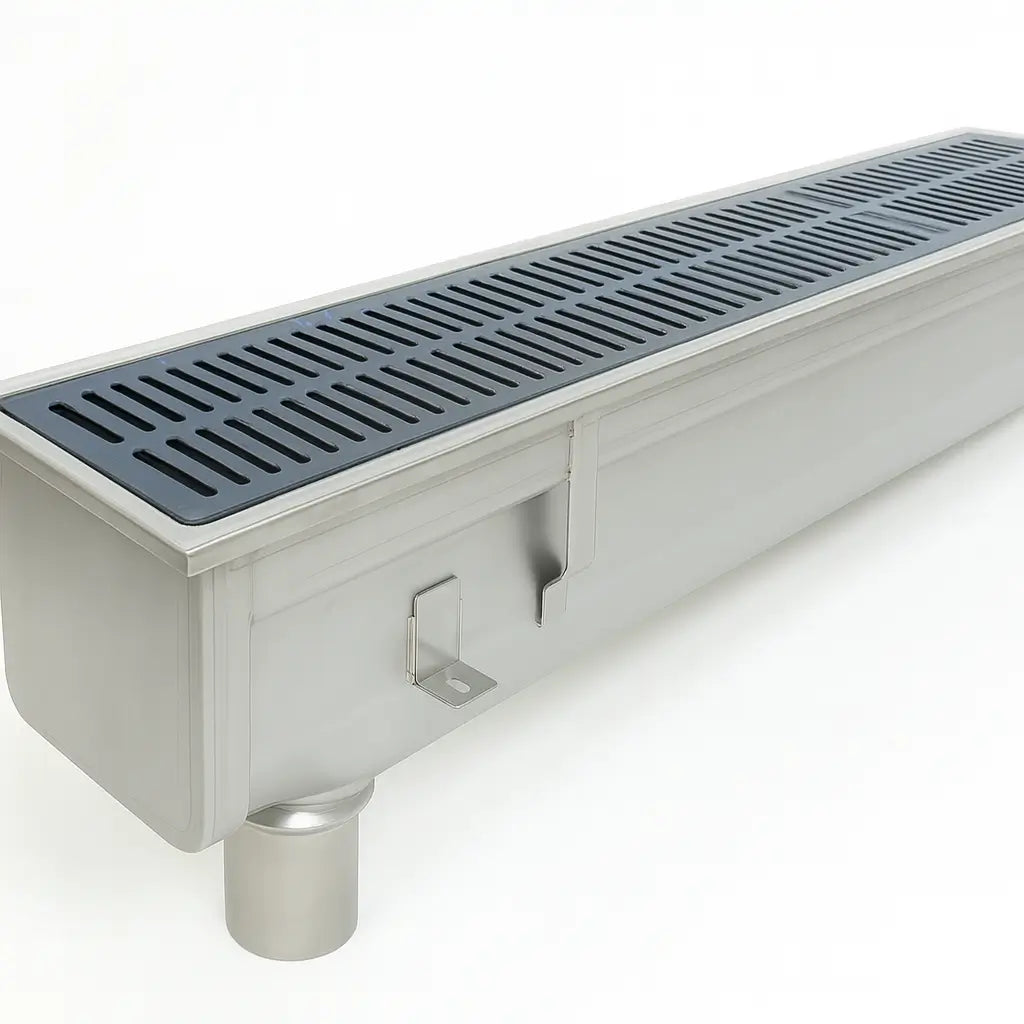

Quicksilver 12 inch wide

Key Features

Outer Width: 12 inches

Inner Width: 10.25 inches

Channel Length: 6 feet

Outlet Sizes: 6" or 8"

Built-in Slope: 1% for high-volume flow

Max Flow Rate: 100+ GPM per foot (site-specific)

Grate Options: Slotted, ADA-compliant, heel-proof, or custom decorative stainless steel

Material Options: 304 and 316 stainless steel

Compliance: FDA, USDA, and NSF sanitation standards

Quicksilver 12 channel and grate

Built for Extreme Demands

This 12-inch wide trench drain system is designed to handle heavy debris, washdowns, and high volumes of liquid. Whether installed in food production lines, distilleries, or chemical processing plants, the Quicksilver 12-inch system performs with uncompromised efficiency and durability.

  • Ideal Applications

    • Bottling & Beverage Plants

    • Food Manufacturing Facilities

    • Meat & Poultry Processing Plants

    • Distilleries & Large Breweries

    • Shipping Terminals & Ports

    • Pharmaceutical Manufacturing

    • Chemical & Pulp Plants

  • Why Choose the 12-Inch Quicksilver System?

    • Extreme Flow Capacity: Accommodates large volumes of runoff, spills, and washdown wastewater.

    • Durability Under Pressure: Reinforced for forklift, pallet jack, and industrial vehicle loads.

    • Hygienic Surface Finish: Smooth stainless steel prevents microbial growth and buildup.

    • Corrosion Resistance: Ideal for caustic, saline, or chemically reactive environments.

    • Modular Configurations: Compatible with end caps, catch basins, side outlets, and custom transitions.

  • Stainless Steel Options:

    • 304 Stainless Steel – General-purpose, food-safe, and corrosion-resistant.

    • 316 Stainless Steel – Marine-grade, with molybdenum-enhanced protection against aggressive chemicals and salt.

Specifications Snapshot

Parameter Detail
Channel Length 6 feet
Outer Width 12 inches
Inner Width 10.25 inches
Slope 1% built-in
Outlet Options 6", 8"
Flow Capacity 100+ GPM per foot (dependent on setup)
Grate Styles Slotted, ADA, heel-proof, decorative
Quicksilver 12 inch wide

Talk to a Drainage Specialist

Call us: 212-946-3798
Email: info@trenchdrainco.com

TrenchDrainCo Quicksilver — Built for Performance. Designed for Precision.

Order Now

Frequently Asked Questions

What is a trench drain?

Expand Collapse

A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.

What does a trench drain look like?

Expand Collapse

A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.

How do I choose the right trench drain system?

Expand Collapse

Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
