Specification Guide

Quicksilver 6

Quicksilver 6

Precision-Engineered for Performance | Built to Endure Harsh Environments

Width: 6″ Duty: Medium

Select grate material:

Stainless Steel (Slotted)
Stainless Steel (Slotted)
Stainless Steel (Mesh)
Stainless Steel (Mesh)

Select system length:

ft

*TD System Includes: End cap, end outlet, channels and grates.

Select number of end caps:

1

Select number of end outlets:

1

*Each run will require one end cap and one end outlet.

Add a catch basin

Total: 0.00 $
View full details

TrenchDrainCo Quicksilver 6-Inch

Stainless Steel Trench Drain System

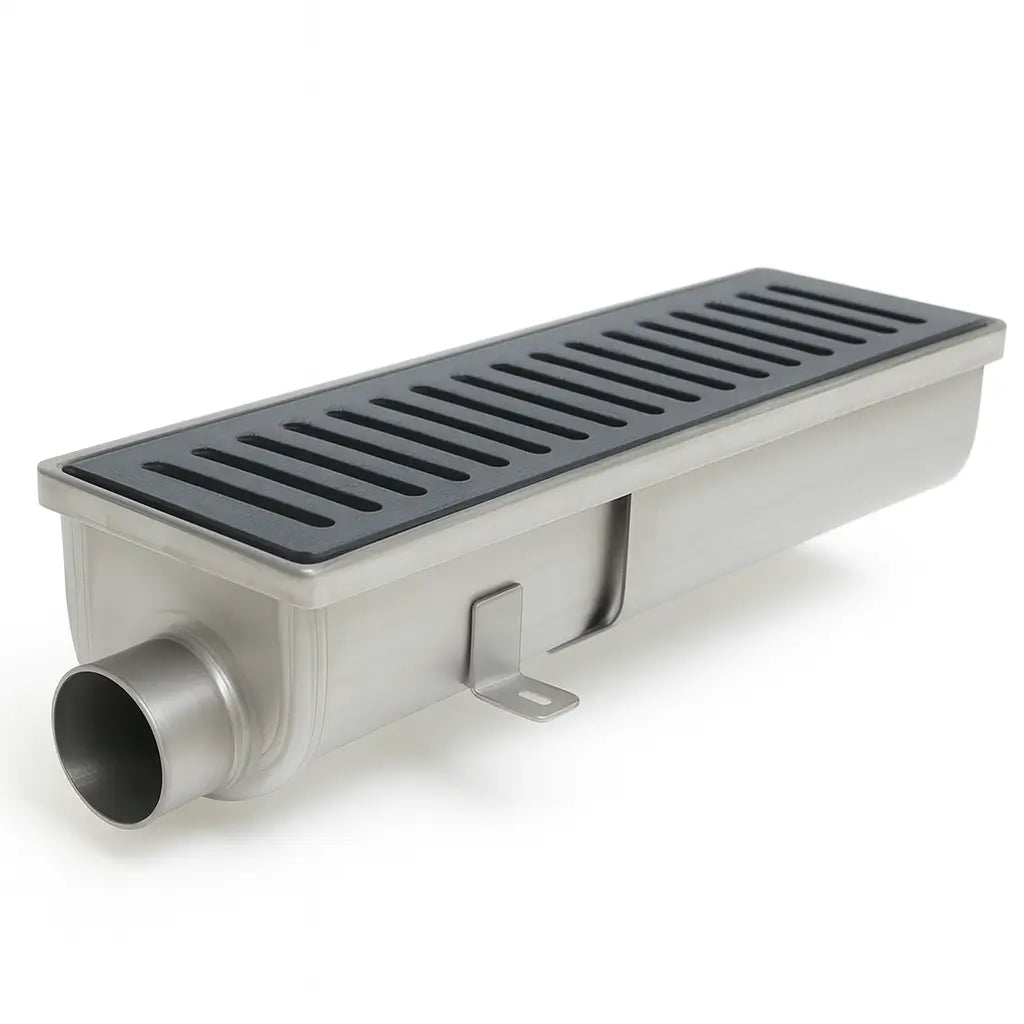

Quicksilver 6 inch wide 3

Precision-Engineered for Performance | Built to Endure Harsh Environments

The TrenchDrainCo Quicksilver 6-Inch Stainless Steel Trench Drain System is the gold standard for sanitary, high-performance drainage in demanding environments. Designed for reliability, hygiene, and corrosion resistance, this 6-inch system is ideal for commercial kitchens, industrial floors, laboratories, food and beverage facilities, and marine applications.

Fabricated from high-grade 304 or 316 stainless steel, the Quicksilver 6-inch system offers exceptional strength while maintaining a sleek, low-profile appearance. Its 6-inch outer width provides ample capacity without compromising installation flexibility.

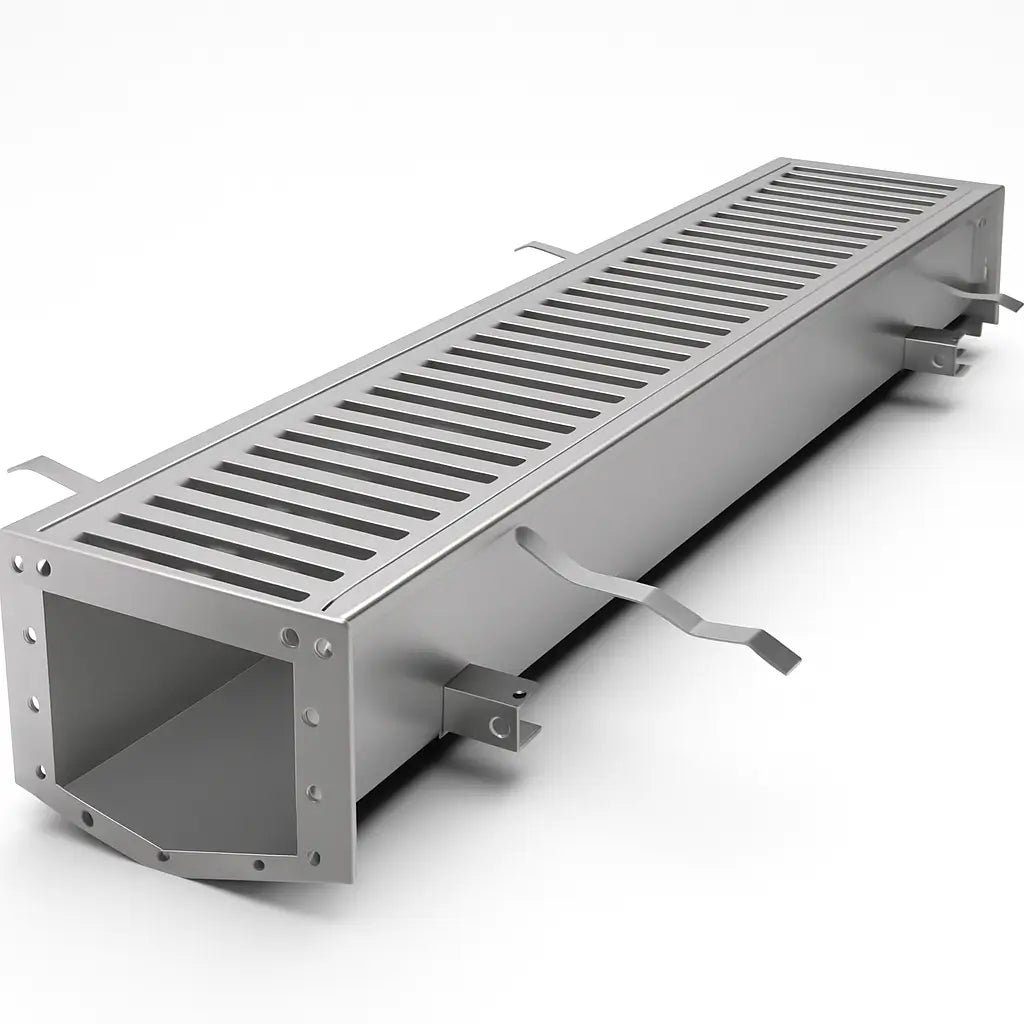

Quicksilver 6 inch wide two

Key Features

Outer Width: 6 inches

Inner Width: 4.25 inches

Channel Length: 6 feet

Outlet Sizes: 4", 6", or 8"

Slope: 1% (built-in)

Max Flow Rate: 67.58 GPM per foot

Grate Options: Heel-proof slotted, ADA-compliant, or decorative stainless steel grates

FDA Compliant: Anti-contaminative, antibacterial, corrosion-resistant

Installation: Pre-sloped and ready-to-install for fast turnaround on job sites

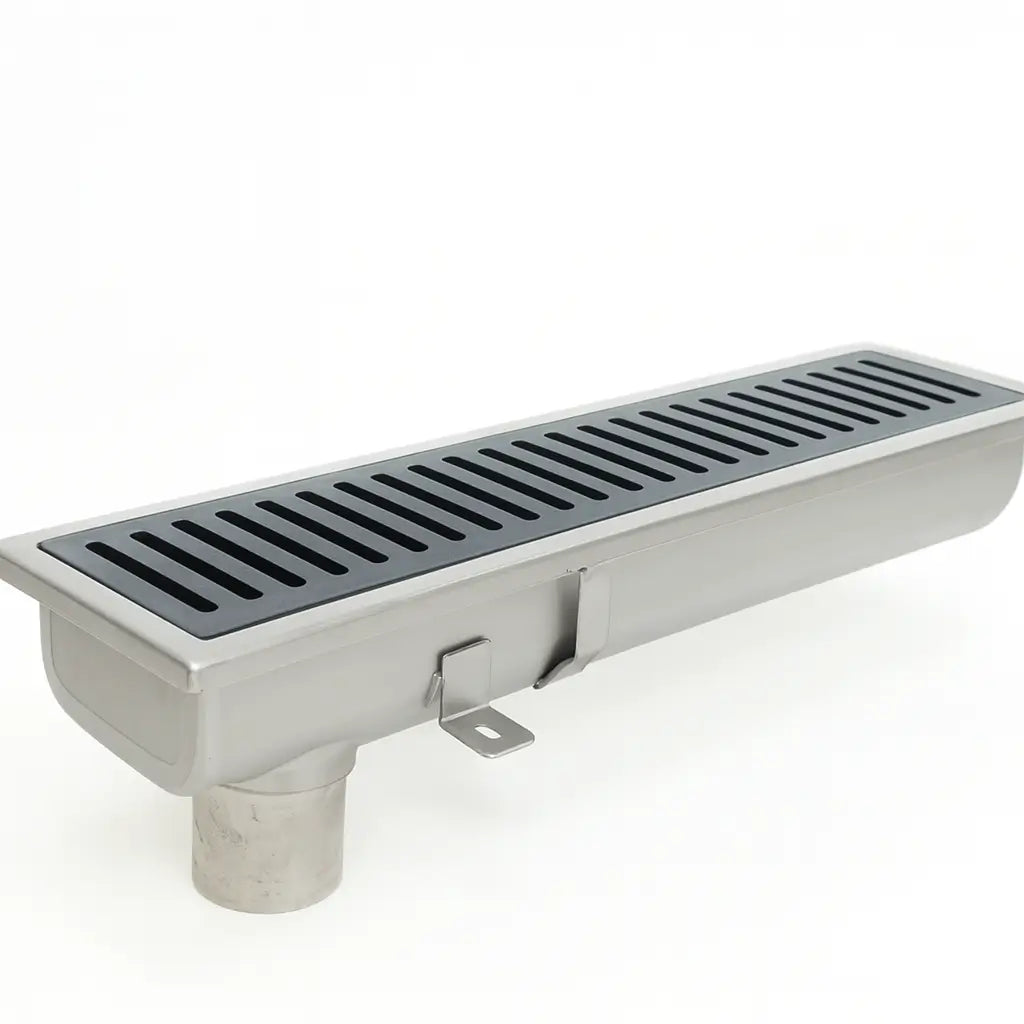

Quicksilver 6 inch wide one

Built for Tough Environments

Choose between 304 stainless steel for general commercial use or 316 stainless steel for chemical plants, saltwater exposure, or marine-grade applications. The Quicksilver 6-inch model resists rust, pitting, and cracking—even under aggressive cleaning and heavy loads.

  • Common Applications

    • Food Processing Plants

    • Commercial Kitchens & Breweries

    • Pharmaceutical Facilities

    • Hospitals & Cleanrooms

    • Ports & Coastal Installations

    • Amusement & Water Parks

    • Industrial Manufacturing Facilities

  • Why Choose the Quicksilver 6-Inch System?

    • Superior Hygiene: Smooth, non-porous surfaces resist bacterial growth and are easy to sanitize.

    • High Strength, Low Weight: Engineered for structural integrity without excessive mass.

    • Corrosion Resistance: Withstands chemicals, salt, and moisture without degradation.

    • Sleek, Professional Aesthetic: Elevates the look of high-traffic or visible drainage areas.

    • Customizable Configurations: End caps, outlet boxes, and side outlets available.

  • Choose Your Grate:

    • 304 Stainless Steel – Best for indoor, low-chemical environments.

    • 316 Stainless Steel – Enhanced with molybdenum for superior resistance in marine or chemical-heavy applications.
Quicksilver 6 inch wide 3

Ready for Any Job

Whether you’re retrofitting a restaurant or specifying drainage for a manufacturing floor, the TrenchDrainCo Quicksilver 6-inch system delivers the performance and longevity your project demands.

Quicksilver 6 inch wide one

Request a Quote or Get Expert Guidance

Call us: 212-946-3798
Email: info@trenchdrainco.com

TrenchDrainCo Quicksilver — Where Precision Meets Performance.

Order Now

Frequently Asked Questions

What is a trench drain?

Expand Collapse

A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.

What does a trench drain look like?

Expand Collapse

A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.

How do I choose the right trench drain system?

Expand Collapse

Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
