Specification Guide

Quicksilver 8

Quicksilver 8

Engineered Strength | Hygienic Precision | Built to Outlast

Width: 8″ Duty: Medium

Select grate material:

Stainless Steel (Slotted)
Stainless Steel (Slotted)
Stainless Steel (Mesh)
Stainless Steel (Mesh)

Select system length:

ft

*TD System Includes: End cap, end outlet, channels and grates.

Select number of end caps:

1

Select number of end outlets:

1

*Each run will require one end cap and one end outlet.

Add a catch basin

Total: 0.00 $
View full details

TrenchDrainCo Quicksilver 8-Inch

Stainless Steel Trench Drain System

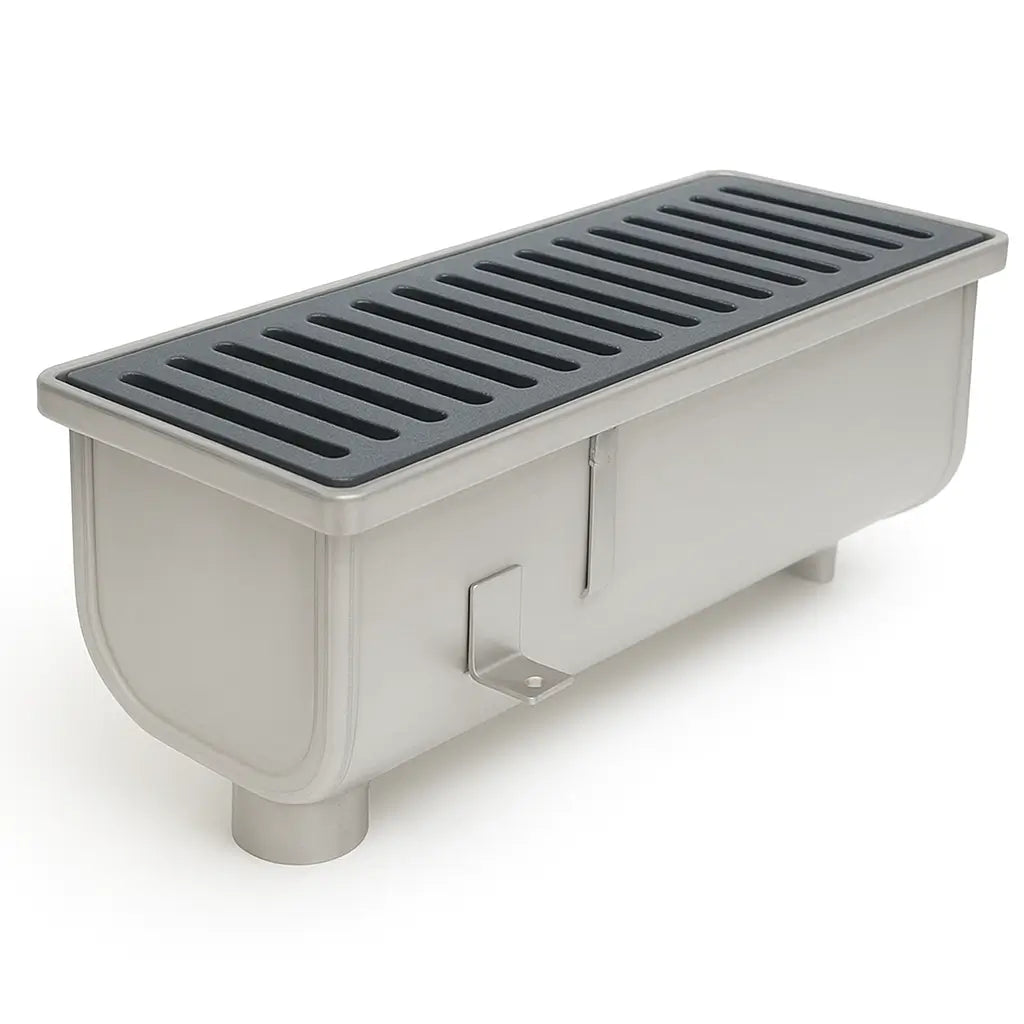

Quicksilver 8 inch 2

Engineered Strength | Hygienic Precision | Built to Outlast

The TrenchDrainCo Quicksilver 8-Inch Stainless Steel Trench Drain System is the preferred solution for large-scale drainage in facilities that demand durability, sanitation, and superior flow capacity. Designed to handle heavy-duty applications with ease, this system balances sleek design with robust engineering, making it ideal for industrial facilities, food processing plants, breweries, and coastal installations.

Manufactured from premium 304 or 316 stainless steel, the Quicksilver 8-inch system provides reliable, corrosion-resistant performance in the harshest conditions while maintaining sanitary standards in sensitive environments.

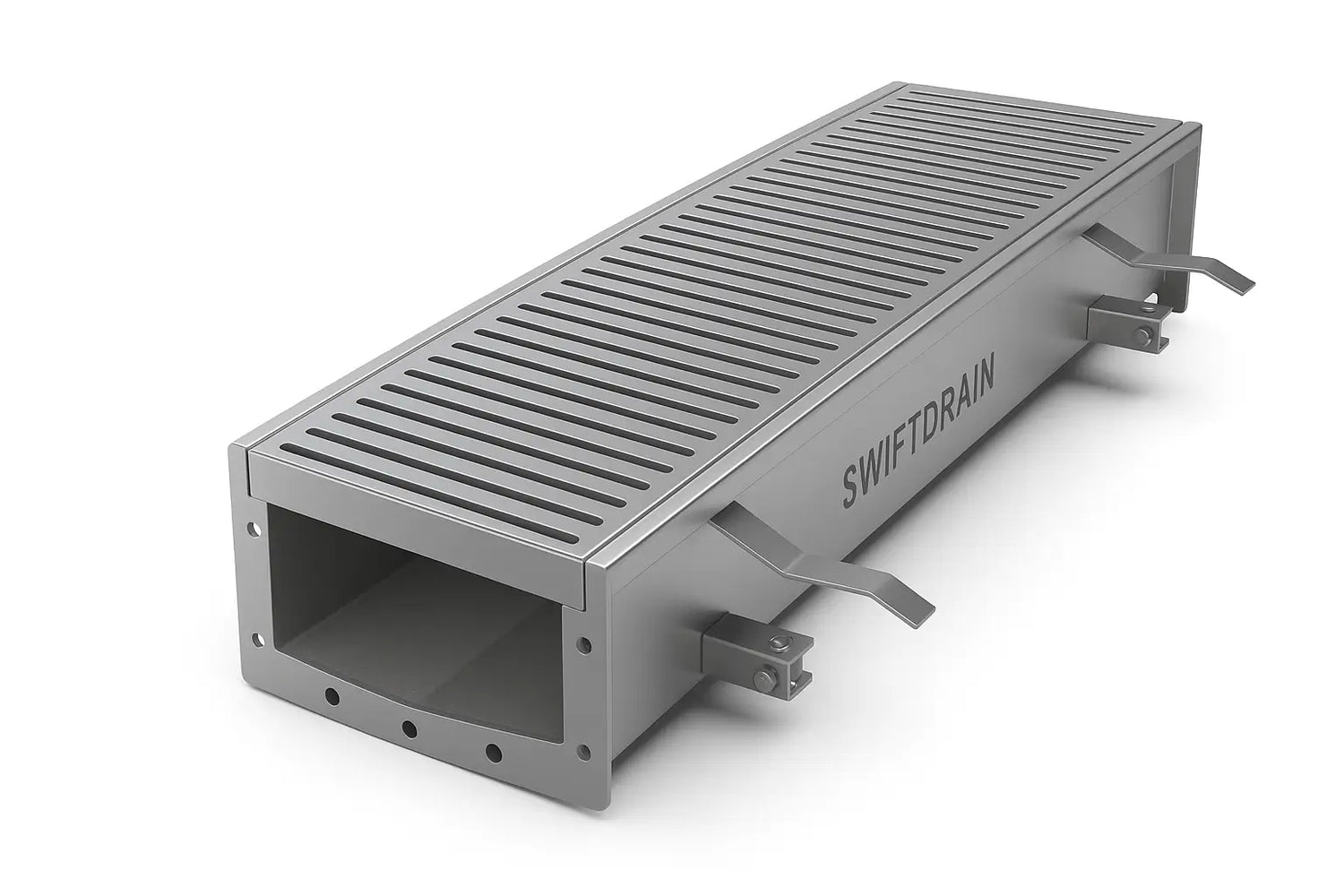

quicksilver 8 inch channel and grate

Key Features

Outer Width: 8 inches

Inner Width: 6.25 inches

Channel Length: 6 feet

Outlet Sizes: 4", 6", or 8"

Slope: 1% built-in for efficient drainage

Flow Capacity: Up to 80+ GPM per foot

Grate Options: Slotted, ADA-compliant, heel-proof, or decorative stainless steel

Material Grades: 304 or 316 stainless steel

FDA & USDA Compliant: Ideal for food-grade and sanitary environments

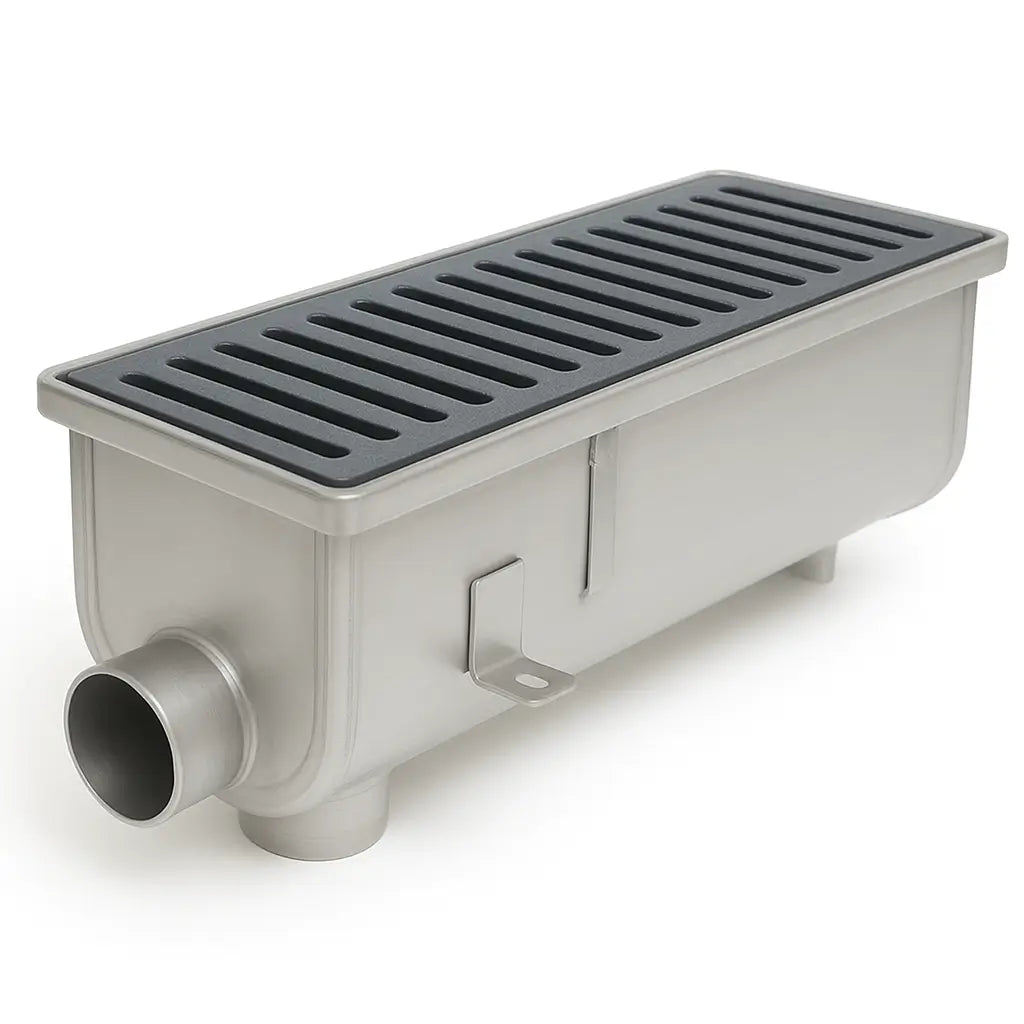

Quicksilver 8 inch

Designed for Demanding Environments

The 8-inch Quicksilver system offers expanded flow capacity and load-bearing performance for high-volume drainage areas. Whether exposed to aggressive chemicals, extreme temperatures, or saltwater environments, this system delivers long-term reliability with minimal maintenance.

  • Common Applications

    • Beverage & Food Processing Plants

    • Commercial Breweries & Wineries

    • Pharmaceutical & Cleanroom Facilities

    • Coastal & Marine Infrastructure

    • Transportation Hubs & Airports

    • Industrial Warehouses & Distribution Centers

    • Aquatic Centers & Water Parks

  • Why Choose the 8-Inch Quicksilver System?

    • Hygienic by Design: Smooth, non-porous stainless steel prevents bacterial growth.

    • Heavy-Duty Construction: Supports forklift, pallet jack, and heavy equipment traffic.

    • Corrosion-Resistant: Withstands exposure to harsh cleaners, chemicals, and salt.

    • Flexible Configurations: Compatible with outlet boxes, end caps, and side outlets.

    • Enhanced Flow: Larger internal cross-section allows efficient drainage over wide areas.

  • Material Options:

    • 304 Stainless Steel – Ideal for general-use applications such as kitchens, hospitals, and indoor plants.

    • 316 Stainless Steel – Marine-grade option built to endure high-chloride and chemical environments.

Specifications Snapshot

Parameter Detail
Channel Length 6 feet
Outer Width 8 inches
Inner Width 6.25 inches
Slope 1% built-in
Outlet Options 4", 6", or 8"
Max Flow Rate ~80 GPM/ft (site-specific)
Grate Styles ADA-compliant, slotted, mesh
Quicksilver 8 inch 2

Get a Quote or Learn More

Call us: 212-946-3798
Email: info@trenchdrainco.com

TrenchDrainCo Quicksilver — Built for Performance. Designed for Precision.

Order Now

Frequently Asked Questions

What is a trench drain?

Expand Collapse

A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.

What does a trench drain look like?

Expand Collapse

A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.

How do I choose the right trench drain system?

Expand Collapse

Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
