Sierra 12

Sierra 12

TrenchDrainCo 12″ Sierra Series Trench Drain System: Your Ultimate Drainage Solution

Width: 12″ Duty: Medium

Select grate material:

Ductile Iron
Ductile Iron

Select Channel Profile:

Shallow
Shallow
Deep
Deep

Select system length:

ft

*TD System Includes: End cap, end outlet, channels and grates.

Select number of end caps:

1

Select number of end outlets:

1

*Each run will require one end cap and one end outlet.

Add a catch basin

Total: 0.00 $
View full details

TrenchDrainCo 12″ Sierra Series

Trench Drain System: Your Ultimate Drainage Solution

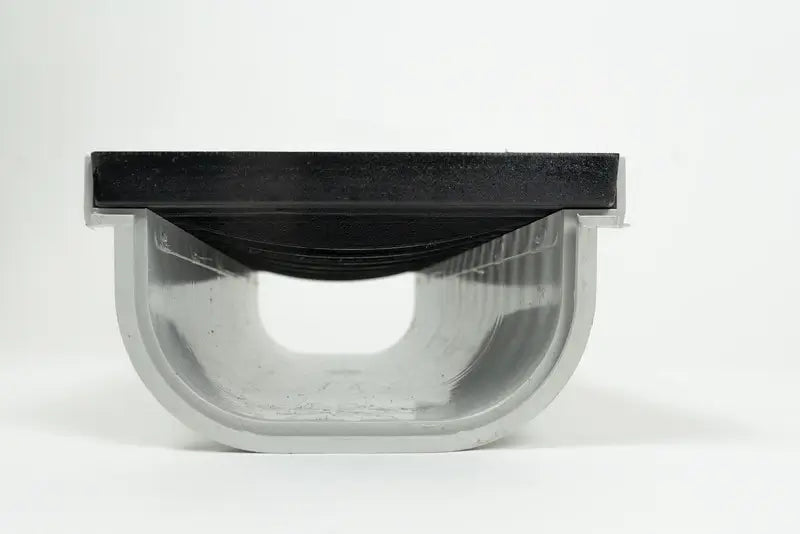

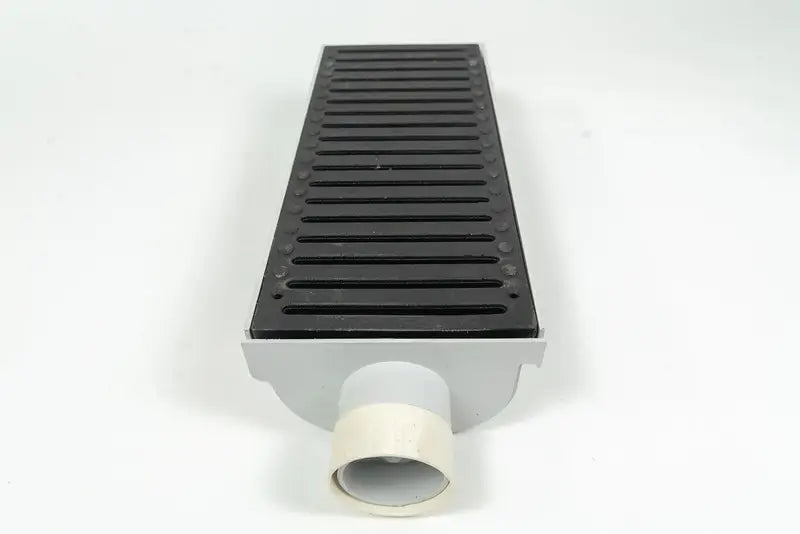

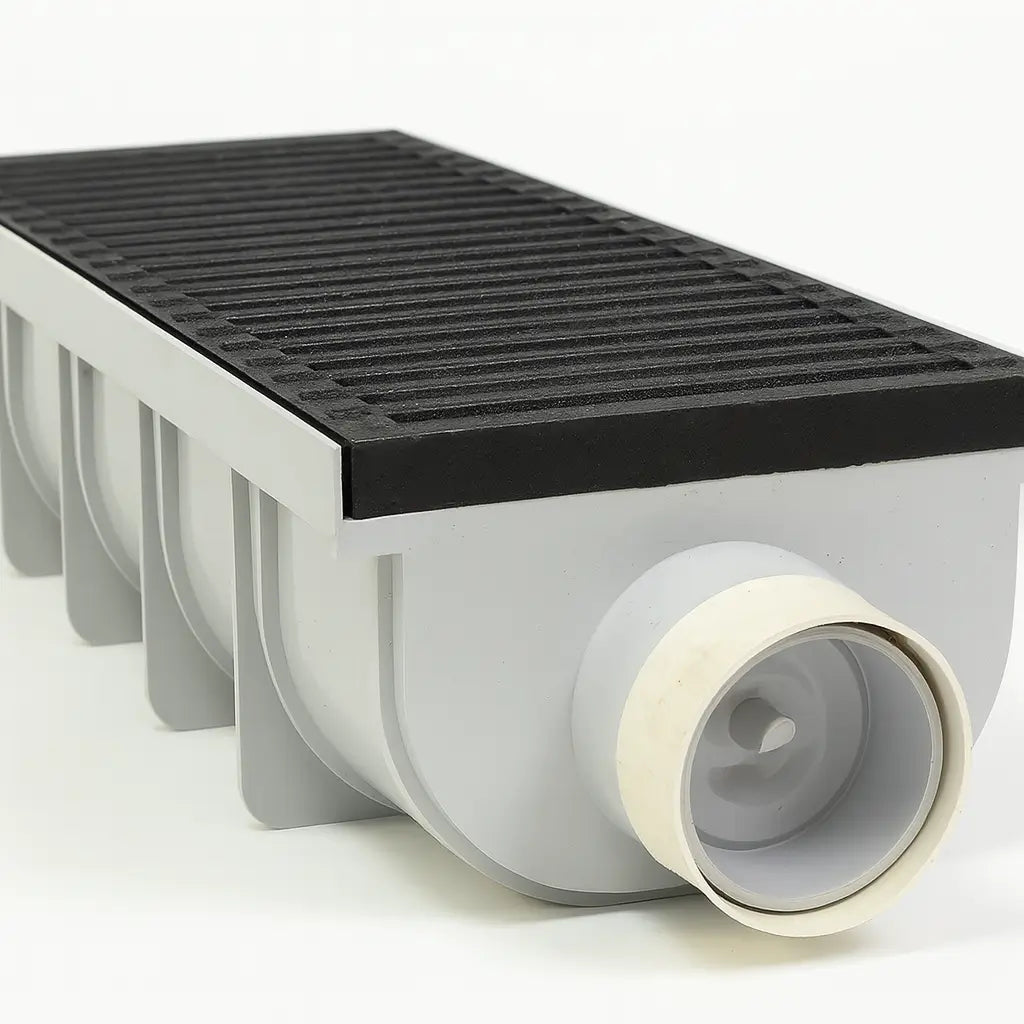

Swiftdrain Sierra 12 Channel With Grate

Versatile. Durable. Easy to Install.

The TrenchDrainCo 12″ Sierra Series is a state-of-the-art trench drain system designed for efficiency, durability, and seamless water management. Whether for residential patios, driveways, pool decks, or commercial applications, this lightweight yet heavy-duty system provides reliable drainage, easy installation, and long-lasting performance.

Swiftdrain Sierra 12 Channel With Grate

Key Specifications

Channel Length: ½ meter

Outer Width: 12-1/4″

Inner Width: 10-5/8″

Outlet Sizes: 3″ S&D, 4″ S&D

Available Depths: 5-1/2″, 10-1/2″

Maximum Flow Rate: 142.86 GPM per foot

Why Choose the TrenchDrainCo 12″ Sierra Series?

Advanced Features for Superior Performance

  • Innovative Modular Design

    • Interlocking 20” modular PVC channels allow for quick, secure, and customized assembly.

    • Flexible outlet configurations with side and bottom connections for seamless integration into any drainage plan.

  • Durable, Long-Lasting Construction

    • High-quality polypropylene and PVC materials resist cracking, fading, and chemical damage.

    • Reinforced channel walls provide structural integrity under light to medium traffic loads.

    • Integrated UV inhibitors ensure long-lasting durability, even in direct sunlight.

  • Effortless Installation & Low Maintenance

    • Clip-in and interlocking joints eliminate the need for complicated couplings.

    • Designed to withstand concrete expansion and contraction, preventing cracks and leaks.

    • Rebar tie-clips included for fast anchoring, reducing installation time and labor costs.

  • A Lightweight Alternative to Concrete Drains

    • Strong enough to handle medium-duty pneumatic tire traffic.

    • Lightweight and easy to transport, making installation hassle-free and cost-effective.

Designed for Any Application

Application House Icon

Residential Use

Ideal for patios, driveways, pool decks, and walkways. The lay-flat design is safe for pedestrians, wheelchair-accessible, and perfect for low-flow areas.

Application School Icon

Commercial Applications

Handles light-to-medium-duty traffic, making it ideal for athletic fields, spas, and pedestrian areas.

Benefits of the TrenchDrainCo 12″ Sierra Series

  • Lightweight Yet Heavy-Duty

    • PVC and polypropylene construction delivers a perfect balance of strength and portability.

    • Resistant to corrosion, chemicals, and environmental exposure, ensuring long-term reliability.

  • Customizable to Fit Your Project

    • Available in multiple widths, depths, and colors to match project aesthetics.

    • Shallow depth options for slab installations.

    • Deeper configurations for higher flow rates and heavy water runoff areas.

  • Modular Flexibility for Any Layout

    • Expandable, interlocking design allows for custom drainage configurations.

    • Channel cut-offs enable smaller, precise sections for detailed installations.

    • Compatible with sewer and SCH 40 pipes, ensuring seamless integration with existing drainage systems.
Swiftdrain Sierra 12 Channel With Grate

Why Choose TrenchDrainCo?

At TrenchDrainCo, we don’t just provide trench drains—we provide tailored drainage solutions. The 12″ Sierra Series delivers the performance, reliability, and flexibility you need to tackle any drainage challenge with confidence.

• Expert guidance from industry professionals.

• Premium product quality backed by engineering excellence.

• Fast and hassle-free ordering and delivery.

Swiftdrain Sierra 12 Channel With Grate

Upgrade Your Drainage System Today

Upgrade your drainage system with the TrenchDrainCo 12″ Sierra Series—a high-performance, easy-to-install, and long-lasting solution for residential and commercial water management.

Contact us today to learn more or place your order. Our team of experts is ready to help you find the perfect configuration for your project.

Order Now

Frequently Asked Questions

What is a trench drain?

Expand Collapse

A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.

What does a trench drain look like?

Expand Collapse

A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.

How do I choose the right trench drain system?

Expand Collapse

Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
