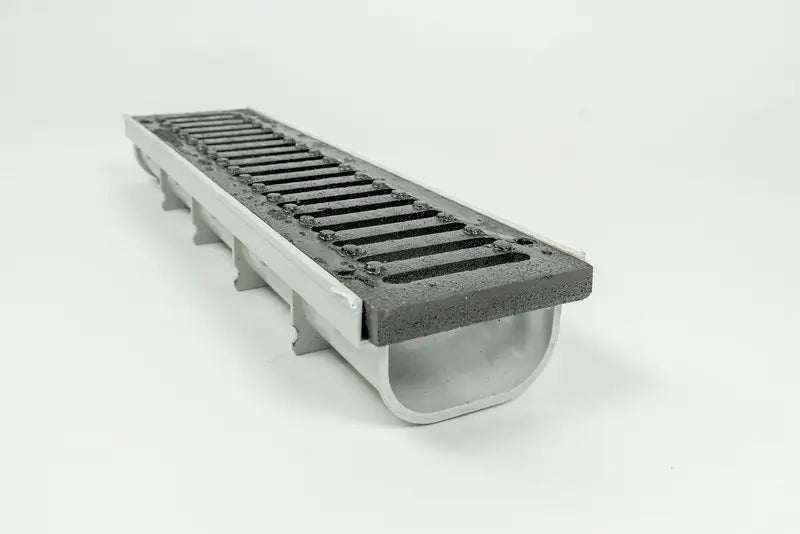

• Swiftdrain Sierra 5 Ductile Iron Grate

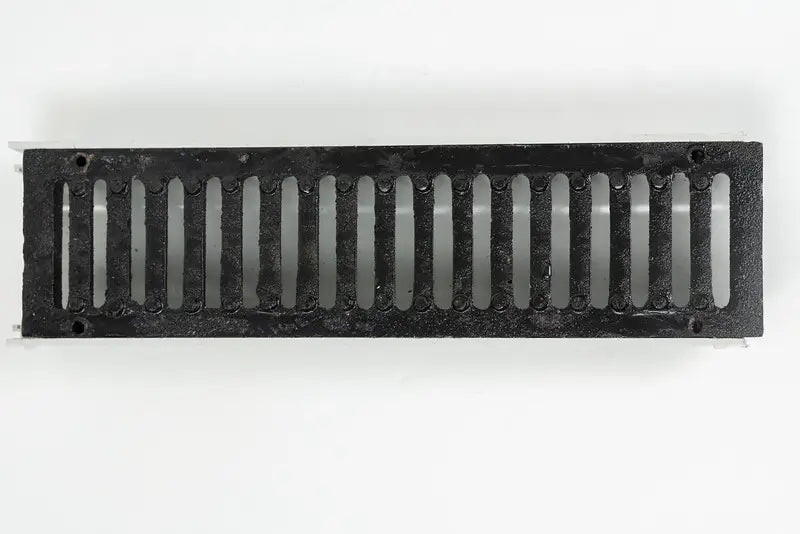

  • Swiftdrain Sierra 5 Ductile Iron Grate

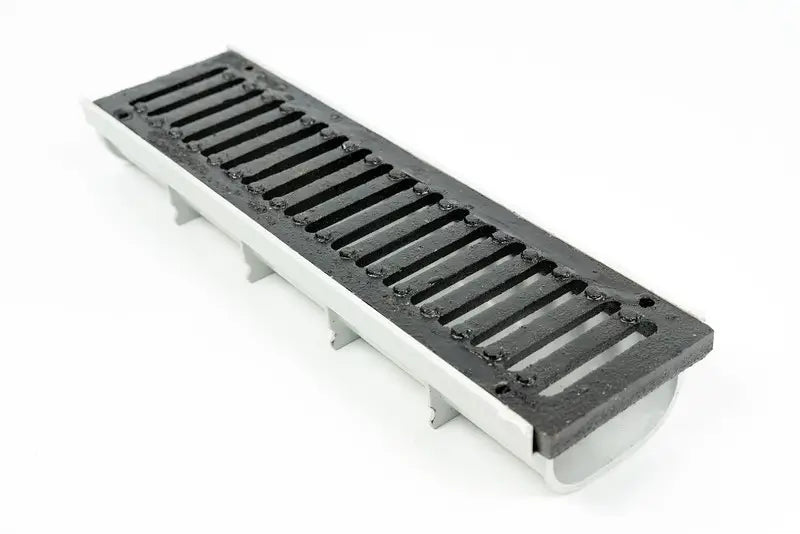

  • Swiftdrain Sierra 5 Ductile Iron Grate

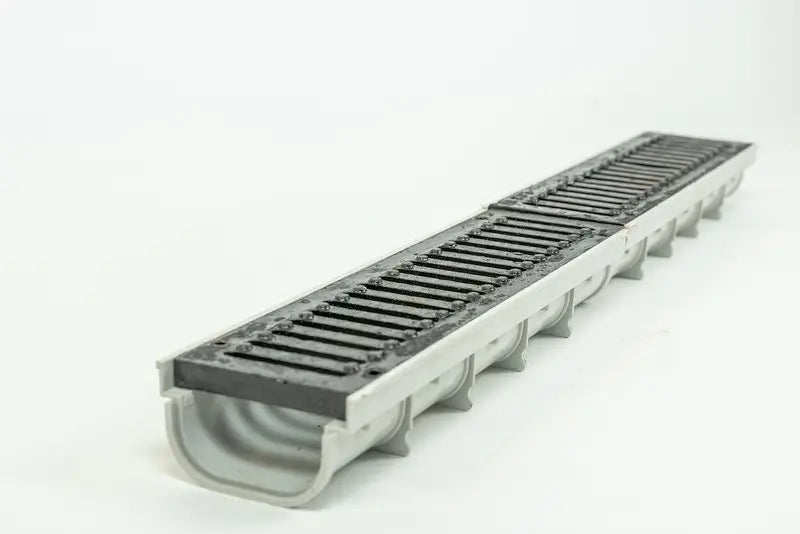

  • Swiftdrain Sierra 5 Ductile Iron Grate
1 4
Specification Guide

Sierra 5

Sierra 5

TrenchDrainCo 5″ Sierra Series Trench Drain System: Your Ultimate Drainage Solution

Width: 5″ Duty: Medium

Select grate material:

Ductile Iron
Ductile Iron

Select Channel Profile:

Shallow
Shallow
Deep
Deep

Select system length:

ft

*TD System Includes: End cap, end outlet, channels and grates.

Select number of end caps:

1

Select number of end outlets:

1

*Each run will require one end cap and one end outlet.

Add a catch basin

Total: 0.00 $
View full details

Sierra 5″ Trench Drain System

Versatile, Durable, and Easy to Install

Swiftdrain Sierra 5 Ductile Iron Grate

Lightweight. Strong. Built for Any Application.

The Sierra 5" Trench Drain System is designed to deliver superior water management with unmatched versatility, durability, and ease of installation. Whether used for patios, driveways, garages, or athletic fields, this system provides efficient drainage without the complexity of traditional concrete trench drains.

Swiftdrain Sierra 5 Ductile Iron Grate

Performance Specifications

Channel Length: 20″
Outer Width: 5″
Inner Width: 4.5″
Outlet Sizes: 3″ S&D, 4″ S&D
Available Depths: 2-5/8″, 4-3/4″
Maximum Flow Rate: 71.95 GPM per foot

Why Choose the Sierra 5?

  • Engineered for Strength & Longevity

    • Constructed from polypropylene and polyvinyl chloride (PVC) for a lightweight yet ultra-durable design.

    • Thick channel walls and side ribs enhance structural integrity.

    • Built-in UV inhibitors prevent fading and cracking from prolonged sun exposure.

    • Rustproof and chemical-resistant, ensuring long-term performance even in harsh conditions.

  • Effortless Installation – No Concrete Required

    • Interlocking joints eliminate the need for complex coupling methods.

    • Modular design allows for secure, watertight channel connections.

    • Designed for hardscape installations, the system accommodates concrete expansion and contraction.

    • Rebar tie-clips included for stable, reinforced installation.

  • Customizable for Any Project

    The Sierra 5 system is designed with flexibility in mind, making it easy to adapt to various site conditions:
    • Multiple widths, lengths, and depths allow for custom drainage layouts.

    • Deep channels available for high-volume water flow.

    • Shallow channels for installations with minimal fall depth.

    • Snap-together channel sections simplify assembly and expansion.

    Compatible with side and bottom outlets, as well as sewer and SCH 40 pipes and fittings.

  • Key Features at a Glance

    • Concrete Alternative – Lightweight and easy to install, eliminating the challenges of traditional concrete trench drains.

    • Heavy-Duty Ductile Iron Grates – Provides strength and durability for residential and commercial applications.

    • UV and Chemical Resistant – Built to withstand harsh environmental conditions.

    • ADA-Compliant Design – Wheelchair-friendly grates ensure pedestrian safety and accessibility.

    • Vehicle-Safe – Heavy-duty grates support automobiles and light trucks under 20 mph.

Versatile Applications – From Sidewalks to Driveways

The Sierra 5 Trench Drain System is designed for residential and commercial projects, providing efficient drainage in a wide range of environments:

Application House Icon

Residential Use

Enhances patios, pool decks, garages, and driveways with a drainage system that blends seamlessly into outdoor spaces.

Application School Icon

Commercial & Public Spaces

Ideal for athletic fields, spas, and walkways, keeping high-traffic areas dry and safe.

Application City Icon

Light to Medium Traffic Applications

Choose from light-duty pedestrian grates or heavy-duty grates for areas with light vehicular traffic.

Swiftdrain Sierra 5 Ductile Iron Grate

Built for Performance & Reliability

The Sierra 5 isn’t just another trench drain — it’s an engineered solution that makes water management effortless. With advanced features, modular design, and rugged durability, it ensures long-term reliability without the weight and hassle of concrete systems.

Swiftdrain Sierra 5 Ductile Iron Grate

Why Choose TrenchDrainCo?

At TrenchDrainCo, we don’t just sell trench drain systems—we provide customized drainage solutions backed by industry expertise and superior customer support. With TrenchDrainCo, you get:

  • Unmatched product quality built for durability and efficiency.
  • Expert guidance to help you choose the right drainage system for your project.
  • Fast and hassle-free ordering, ensuring your system arrives when you need it.
Swiftdrain Sierra 5 Ductile Iron Grate

Upgrade Your Drainage System Today

Let TrenchDrainCo simplify your water management needs. Contact us today to learn more about the Sierra 5 Trench Drain System or explore our full range of innovative drainage solutions.

Order Now

Frequently Asked Questions

What is a trench drain?

Expand Collapse

A trench drain is a linear drainage system designed to collect and remove surface water. It typically consists of a narrow channel with a grate on top, directing water to a connected drainage system.

What does a trench drain look like?

Expand Collapse

A trench drain appears as a long, narrow channel embedded into the ground, covered with a metal or plastic grate to allow water to flow in while preventing debris from clogging the system.

How do I choose the right trench drain system?

Expand Collapse

Consider factors like water volume, traffic load, material durability, and aesthetic preferences. Contact us for personalized recommendations.
