Parking lots may look flat and simple, but beneath the surface lies a complex challenge: drainage. Poor water management in parking areas can lead to standing water, pavement failure, freeze-thaw cracking, and even trip hazards. A properly designed trench drain system for parking lots helps prevent costly damage, protect users, and ensure ADA and municipal compliance.
In this guide, we’ll explore how to design, size, and install trench drain systems for parking lots of all sizes—whether it’s a small retail space or a multi-acre distribution center. You’ll learn how to calculate flow, choose the right materials, account for slope, and prevent common drainage failures.
Why Parking Lot Drainage Matters
Parking lots are exposed to constant wear and tear from vehicles, weather, and runoff. If water isn’t quickly and effectively removed, it leads to:
- Surface deterioration (potholes, cracks, raveling)
- Sub-base saturation and structural weakening
- Slip and fall risks due to ice or algae growth
- Flooding at entrances, curbs, or ADA-accessible ramps
- Liability for property damage or personal injury
A properly engineered trench drain system helps mitigate these risks while improving safety, performance, and longevity of the lot.
When to Use a Trench Drain in a Parking Lot
Trench drains are the preferred drainage method when:
- There is sheet flow across the parking lot surface
- Water converges at a low point or entrance ramp
- Pavement transitions (e.g., between concrete and asphalt) require water capture
- Existing catch basins are spaced too far apart
- ADA cross-slopes prevent raised inlets
Explore how trench drains compare to catch basins and sizing considerations in our Complete Sizing Drainage System Guide.
Design Considerations for Parking Lot Trench Drains
1. Flow Rate and Drainage Area
Start with calculating contributing surface area and peak rainfall intensity. Use the formula:
Q = CiA / 96.23
Where:
- Q = flow rate in CFS
- C = runoff coefficient (0.9 for paved surfaces)
- i = rainfall intensity (in/hr from local charts)
- A = area in acres
Example:
- Area = 0.5 acre
- Rainfall intensity = 3 in/hr
- Q = (0.9 × 3 × 0.5) / 96.23 = 0.014 CFS
Use a sizing table in our Trench Drain Sizing Guide to match your calculated flow rate to an appropriate channel width and depth.
2. Channel Width and Depth
For most parking lots:
- 4”–6” wide drains are sufficient for small retail or drive-thru areas
- 8”–10” wide drains are ideal for high-traffic commercial centers
- 12”+ systems are used in high-flow zones like sloped lots or truck courts
Depth should correspond to the flow volume and slope. Deeper channels allow higher flow velocity and slower sedimentation.
See our HDPE trench drain systems and polymer concrete systems for available sizes.
3. Slope: Site Pitch vs. Pre-Sloped Channels
Slope determines how quickly water drains from the channel. Parking lots often rely on surface grading, but that’s not always reliable or cost-effective.
Two options:
-
Neutral Channels + Sloped Site Grade
Simple but requires precision grading across long distances. -
Pre-Sloped Channels
Built-in slopes (0.5–1%) ensure consistent velocity and reduce sediment buildup, especially on flat lots.
Need help choosing? Visit our Pre-Sloped vs Neutral Trench Drain Comparison.
4. Load Class Ratings for Grates
Parking lots see a variety of vehicle loads, from passenger cars to delivery trucks. Grates must be selected based on the expected traffic.
|
Load Class |
Rating |
Applications |
|
B125 |
27,500 lbs |
Passenger vehicles, small lots |
|
C250 |
55,000 lbs |
Mixed-use, SUVs, light trucks |
|
D400 |
88,000 lbs |
Delivery trucks, service areas |
|
E600 |
132,000 lbs |
Heavy traffic areas or loading zones |
Choose grates with anti-slip or ADA-compliant designs for pedestrian zones. For airport class F options See all options in our Airport Trench Drain Grate Selection Guide.
Recommended Materials for Parking Lot Trench Drains
HDPE (High-Density Polyethylene)
- Lightweight and cost-effective
- Easy to install
- Works well with concrete collars
- Rated up to D400 with frame reinforcement
- Ideal for general commercial lots
Explore HDPE systems for parking areas
Polymer Concrete
- High strength and rigidity
- Handles freeze–thaw cycles well
- Rated up to F900 Super Duty Loads
- Ideal for heavy traffic or long runs
See our Polymer Concrete Drains for DOT Projects
Stainless Steel
- Great for high-end, decorative, or food-adjacent areas
- Easy to sanitize
- Not typically used across large lots unless in entry zones or aesthetic applications
Learn more about Stainless Steel Drains for Mixed-Use Spaces and browse our Complete Guide to Trench Drain System Selection

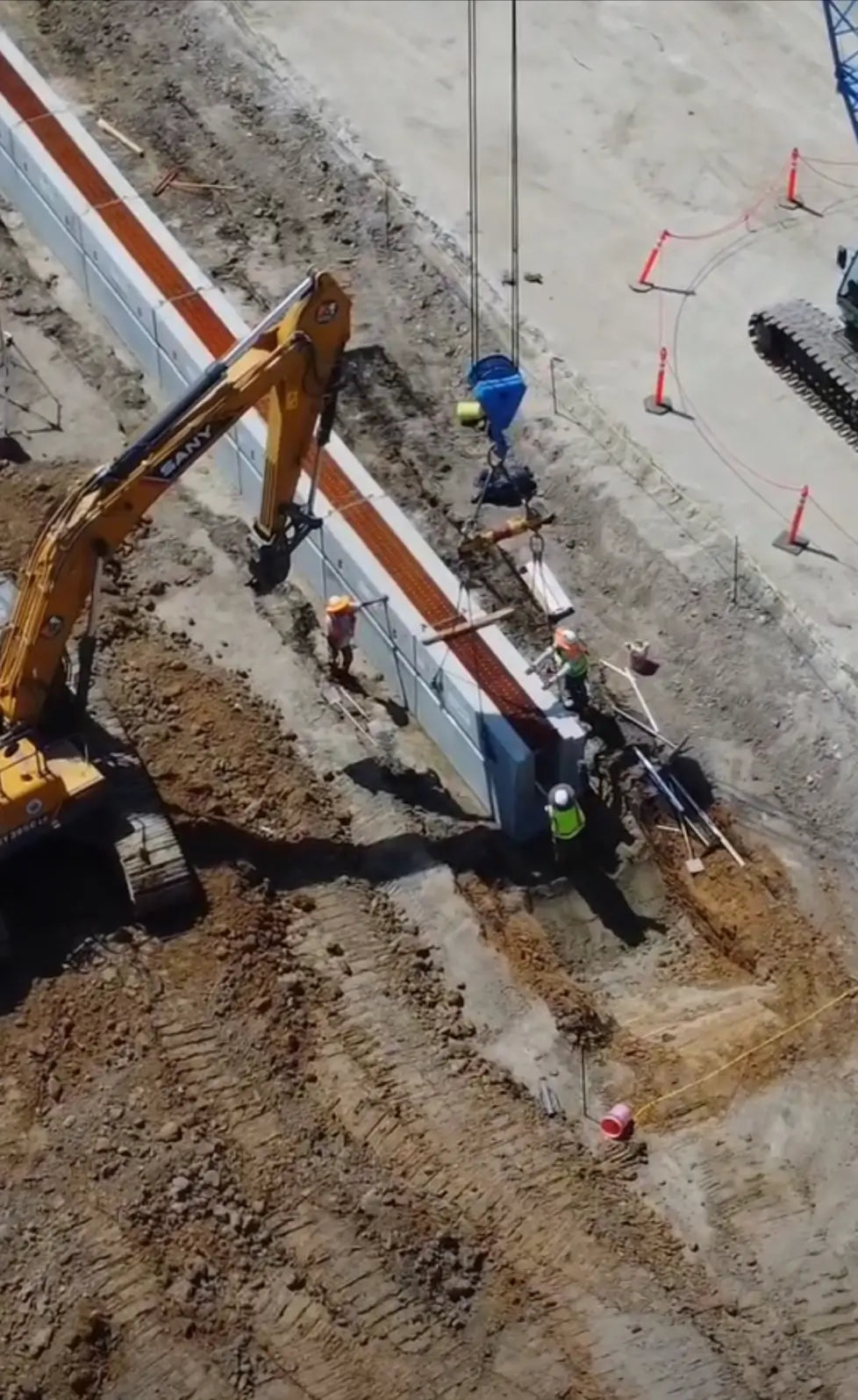

Installation Guidelines for Parking Lot Trench Drains
Follow best practices to ensure longevity and load compliance:
1. Excavation
- Trench should be 4–6 inches wider than the channel
- Allow space for concrete collars (minimum 4” each side)
2. Rebar Anchoring
- Use anchor loops or side rails to secure the channel in concrete
- Prevents float during pour or shifting under load
3. Concrete Pour
- Minimum 3,000–4,000 psi concrete for backfill
- Slightly slope surface toward the grate (0.5–1%)
4. Grate Installation
- Use bolt-down or bar-lock grates for high-traffic zones
- Torque bolts to spec and inspect every 6 months
For full instructions, download our Trench Drain Installation Guide.
Common Mistakes in Parking Lot Drainage
Avoid these costly errors:
Incorrect Slope
Flat or back-graded trenches lead to standing water. Use pre-sloped systems when grade control is challenging.
Undersized Systems
Using 4” drains for high-flow areas leads to backups. Size according to peak stormwater volumes—not average weather.
Inadequate Load Class
Installing A15 or B125 grates in areas used by delivery trucks causes premature failure.
Improper Backfill
Skimping on concrete thickness around the trench allows channel shifting, cracking, or sinkage.
Need help troubleshooting a failed installation? Contact our team or check out the Parking Lot Retrofit Case Study.
Real-World Application: Commercial Shopping Center
Location: Suburban retail plaza with 120 parking spaces
Issue: Water pooling at main entrance after heavy rain
Solution:
- Installed 80 ft of 6” pre-sloped HDPE trench drain
- Grates rated at C250 for passenger vehicle traffic
- Connected to existing stormwater system using inline catch basins with silt baskets
Result:
Surface drainage improved immediately. Customer complaints dropped to zero and no further repairs were needed after two winters.
Read the full project profile
Maintenance Tips for Long-Term Performance
- Monthly: Inspect grates and remove surface debris
- Quarterly: Empty sediment baskets in catch basins
- Annually: Pressure wash channels
- After Storms: Check outlet connections and backup flow
Proper maintenance extends the life of your system and avoids unexpected failures.
Conclusion
Trench drain systems are essential to effective, long-lasting parking lot design. When sized, sloped, and installed correctly, they prevent surface water problems that damage pavement, reduce safety, and increase liability.
To build the right system:
- Start with flow rate and drainage area
- Match channel size and material to your environment
- Select grates based on traffic type and safety requirements
- Follow correct installation procedures and inspect regularly
Explore our full line of parking lot trench drain systems, or speak with our technical team to get a layout and quote for your project.
